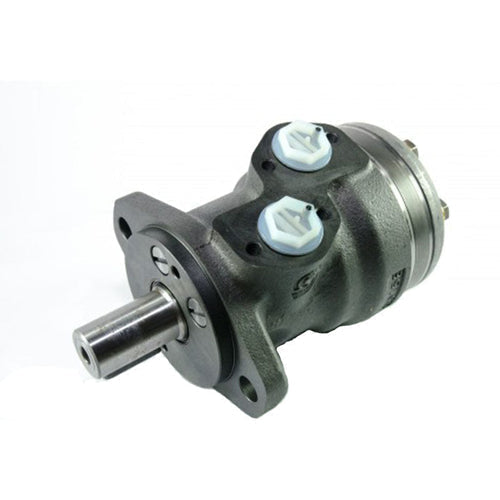

32mm G1/2'' Hydraulic Orbital Motor OMR100 151-0243
32mm G1/2'' Hydraulic Orbital Motor OMR100 151-0243
通常価格
$248.00 USD
通常価格
セール価格
$248.00 USD
配送料はチェックアウト時に計算されます。
Part Name: Hydraulic Orbital Motor
Manufacturing Part Number: OMR100 -151-0243, 1510243
Manufacturing Part Number: OMR100 -151-0243, 1510243
Specification:
Type: OMR
Motor size: 100
Geometric displacement: 99.8cm³/[6.11in]
Max speed cont: 600rpm
Max speed int: 750rpm
Max torque cont: 240Nm/[2480lbf in]
Max torque int: 280Nm/[1960lbf in]
Max output power cont: 13.0kW/[17.4hp]
Max output power int: 15.0kW/[20.1hp]
Max pressure drop cont: 175bar/[2540psi]
Max pressure drop int: 200bar/[2900psi]
Max pressure drop peak: 225bar[3260psi]
Max oil flow cont: 60L/min
Max oil flow int: 75L/min
Max starting pressure with unloaded shaft: 10bar/[145psi]
Min starting torque at max press drop cont: 200Nm/[1770lbf in]
Min starting torque at max press drop int: 230Nm/[2040lbf in]
Max inlet pressure cont: 175bar/[2540psi]
Max inlet pressure int: 200bar/[2900psi]
Max inlet pressure peak: 225bar/[3260psi]
Max return pressure with drain line cont: 175bar/[2540psi]
Max return pressure with drain line int: 200bar/[2900psi]
Max return pressure with drain line peak: 225bar/[3260psi]
Max speed cont: 600rpm
Max speed int: 750rpm
Max torque cont: 240Nm/[2480lbf in]
Max torque int: 280Nm/[1960lbf in]
Max output power cont: 13.0kW/[17.4hp]
Max output power int: 15.0kW/[20.1hp]
Max pressure drop cont: 175bar/[2540psi]
Max pressure drop int: 200bar/[2900psi]
Max pressure drop peak: 225bar[3260psi]
Max oil flow cont: 60L/min
Max oil flow int: 75L/min
Max starting pressure with unloaded shaft: 10bar/[145psi]
Min starting torque at max press drop cont: 200Nm/[1770lbf in]
Min starting torque at max press drop int: 230Nm/[2040lbf in]
Max inlet pressure cont: 175bar/[2540psi]
Max inlet pressure int: 200bar/[2900psi]
Max inlet pressure peak: 225bar/[3260psi]
Max return pressure with drain line cont: 175bar/[2540psi]
Max return pressure with drain line int: 200bar/[2900psi]
Max return pressure with drain line peak: 225bar/[3260psi]
