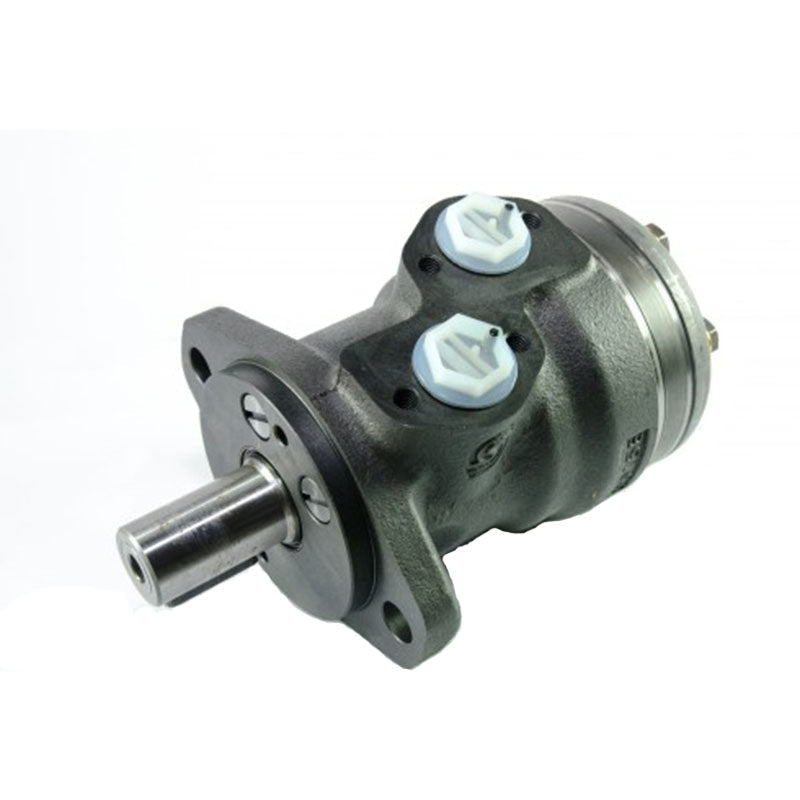

1'' 1/2 BSP Hydraulic Orbital Motor OMP400 - 151-0308 151-0608
1'' 1/2 BSP Hydraulic Orbital Motor OMP400 - 151-0308 151-0608
通常価格
$280.00 USD
通常価格
セール価格
$280.00 USD
配送料はチェックアウト時に計算されます。
Part Name: Hydraulic Orbital Motor
Manufacturing Part Number: OMP400 - 151-0308, OMP400 - 151-0608, 1510308, 1510608
Manufacturing Part Number: OMP400 - 151-0308, OMP400 - 151-0608, 1510308, 1510608
Specification:
Type: OMP
Motor Size: 400
Geometric displacement: 389.2cm³/[23.82in]
Max speed cont: 155 rpm
Max speed int: 190rpm
Max torque cont: 300Nm/[2660lbf in]
Max torque int: 420Nm/[3720lbf in]
Max output power cont: 4.0kW/[5.4hp]
Max output power int: 6.0kW/[8.1hp]
Max pressure drop cont: 60bar/[870psi]
Max pressure drop int: 80bar[1160psi]
Max pressure drop peak: 130bar[1890psi]
Max oil flow cont: 60L/min
Max oil flow int: 75L/min
Max starting pressure with unloaded shaft: 5bar/[75psi]
Min starting torque at max press drop cont: 280Nm/[2480lbf in]
Min starting torque at max press drop int: 400Nm/[3540lbf in]
Max inlet pressure cont: 175bar/[2540psi]
Max inlet pressure int: 200bar/[2900psi]
Max inlet pressure peak: 225bar/[3260psi]
Max return pressure with drain line cont: 175bar/[2540psi]
Max return pressure with drain line int: 200bar/[2900psi]
Max return pressure with drain line peak: 225bar/[3260psi]
Max speed cont: 155 rpm
Max speed int: 190rpm
Max torque cont: 300Nm/[2660lbf in]
Max torque int: 420Nm/[3720lbf in]
Max output power cont: 4.0kW/[5.4hp]
Max output power int: 6.0kW/[8.1hp]
Max pressure drop cont: 60bar/[870psi]
Max pressure drop int: 80bar[1160psi]
Max pressure drop peak: 130bar[1890psi]
Max oil flow cont: 60L/min
Max oil flow int: 75L/min
Max starting pressure with unloaded shaft: 5bar/[75psi]
Min starting torque at max press drop cont: 280Nm/[2480lbf in]
Min starting torque at max press drop int: 400Nm/[3540lbf in]
Max inlet pressure cont: 175bar/[2540psi]
Max inlet pressure int: 200bar/[2900psi]
Max inlet pressure peak: 225bar/[3260psi]
Max return pressure with drain line cont: 175bar/[2540psi]
Max return pressure with drain line int: 200bar/[2900psi]
Max return pressure with drain line peak: 225bar/[3260psi]
