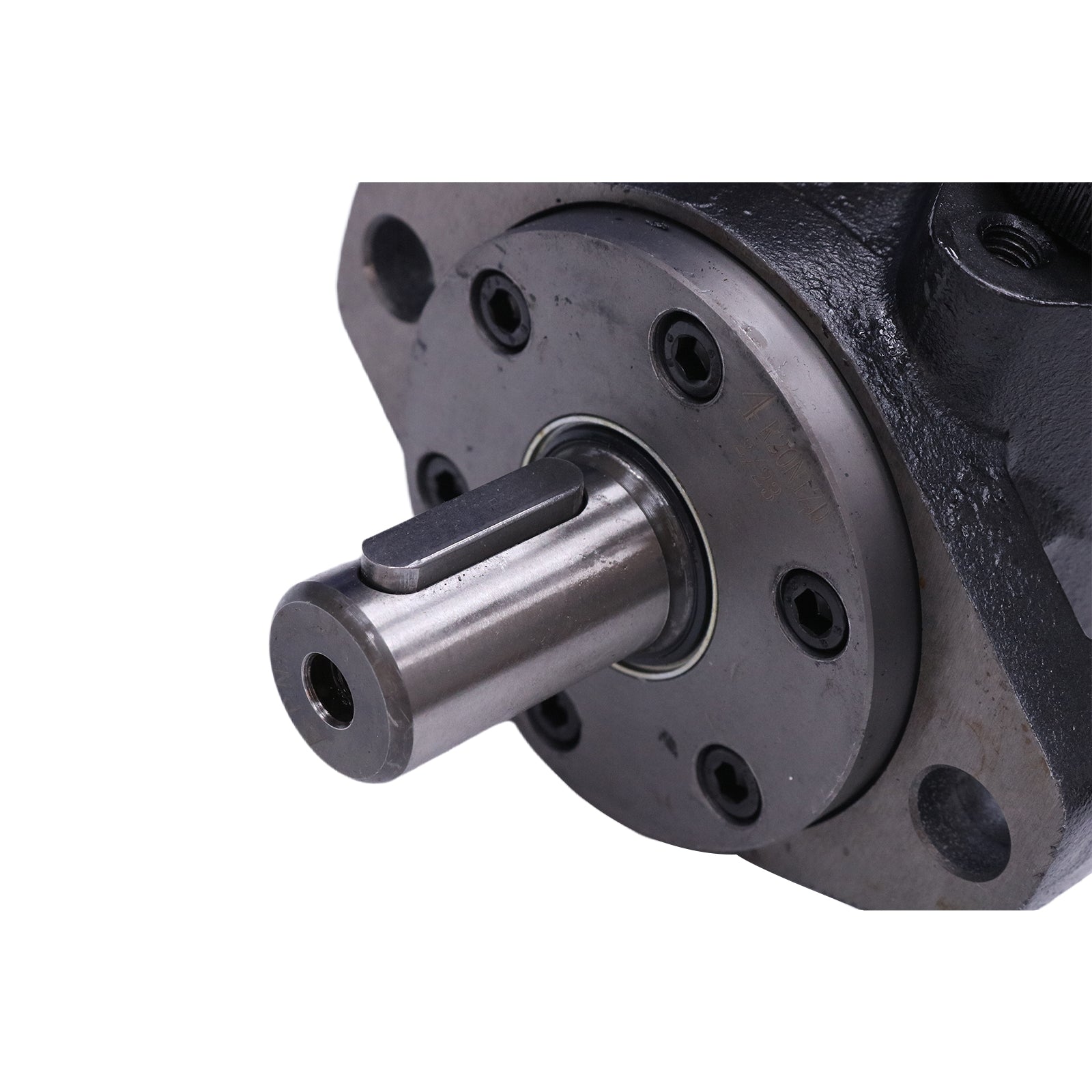

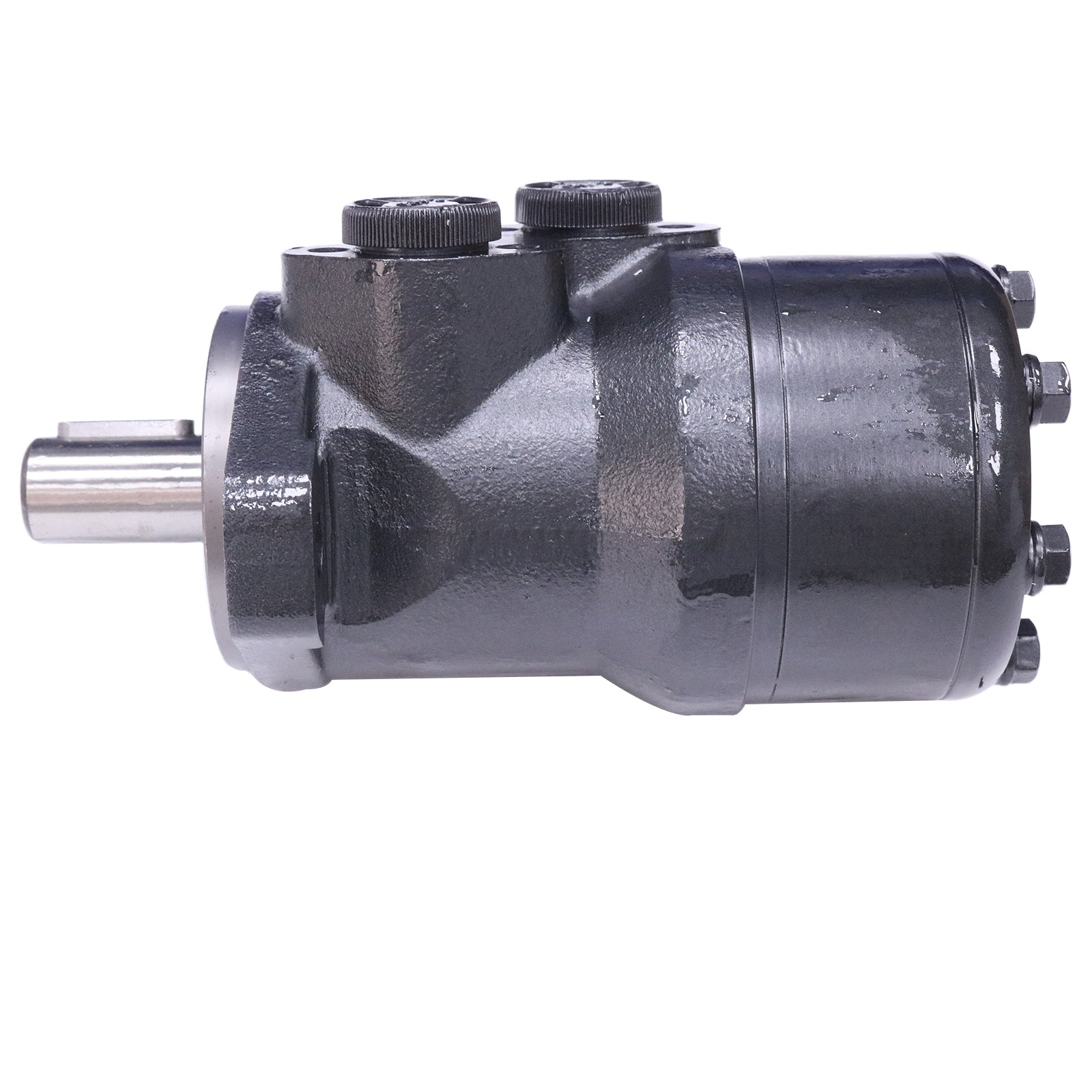

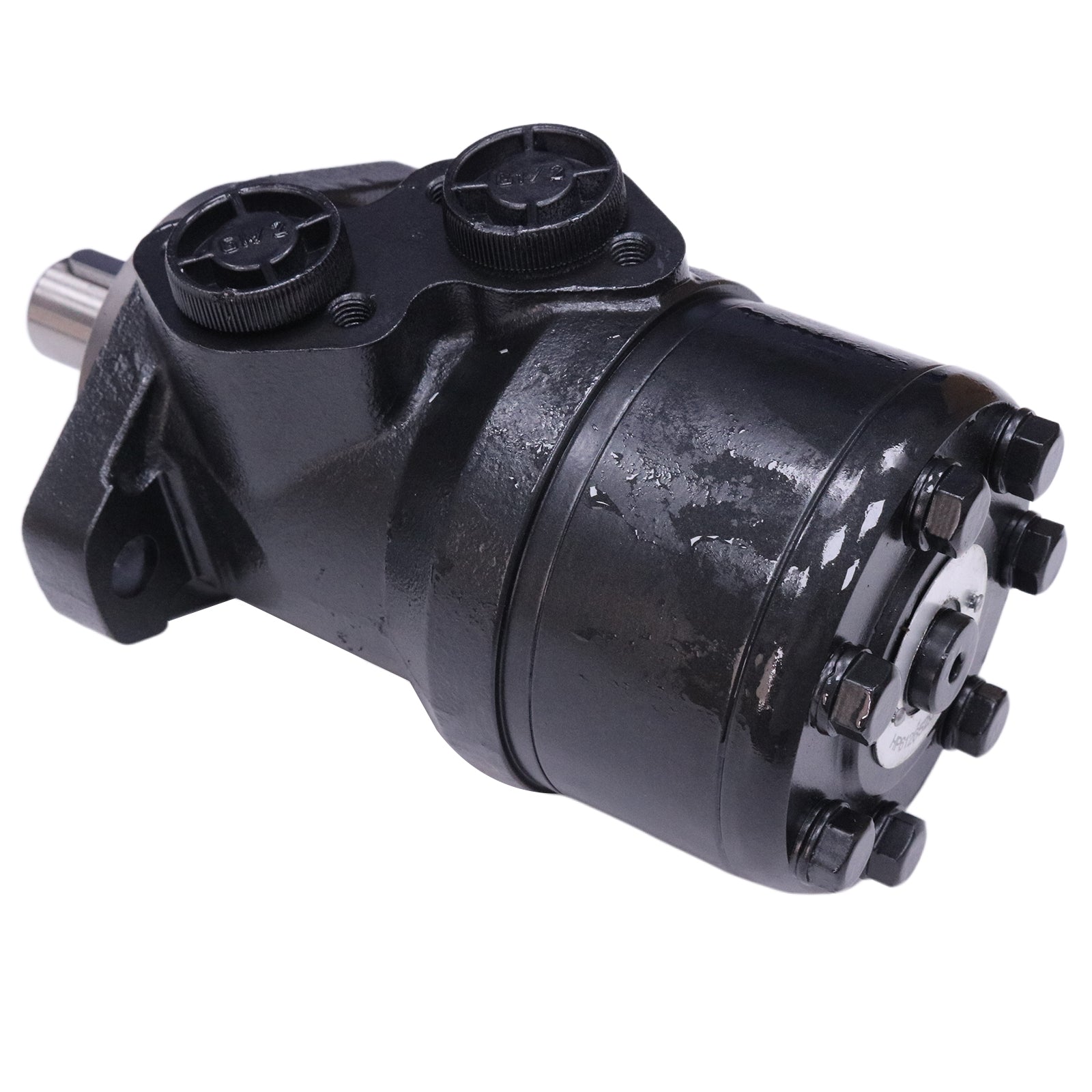

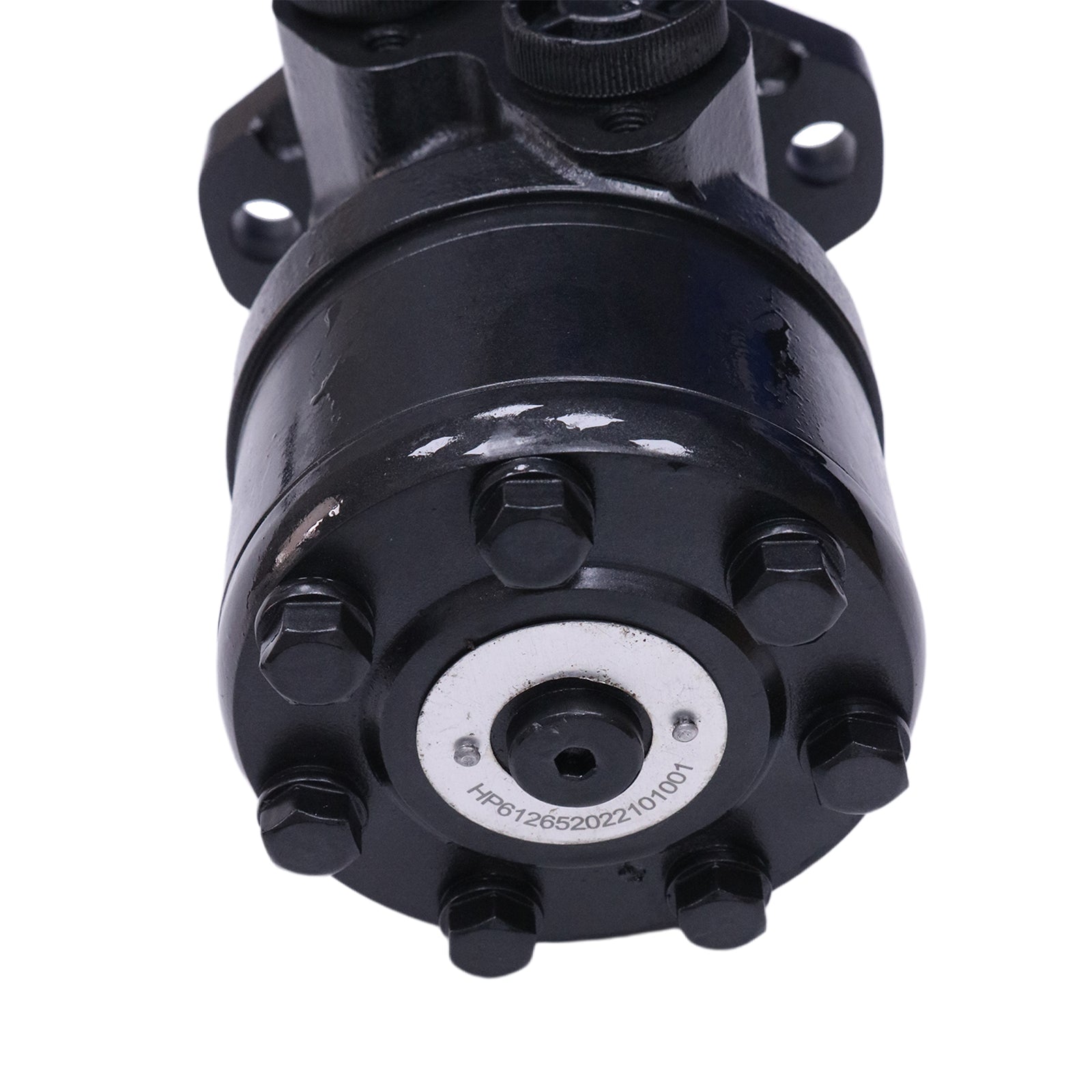

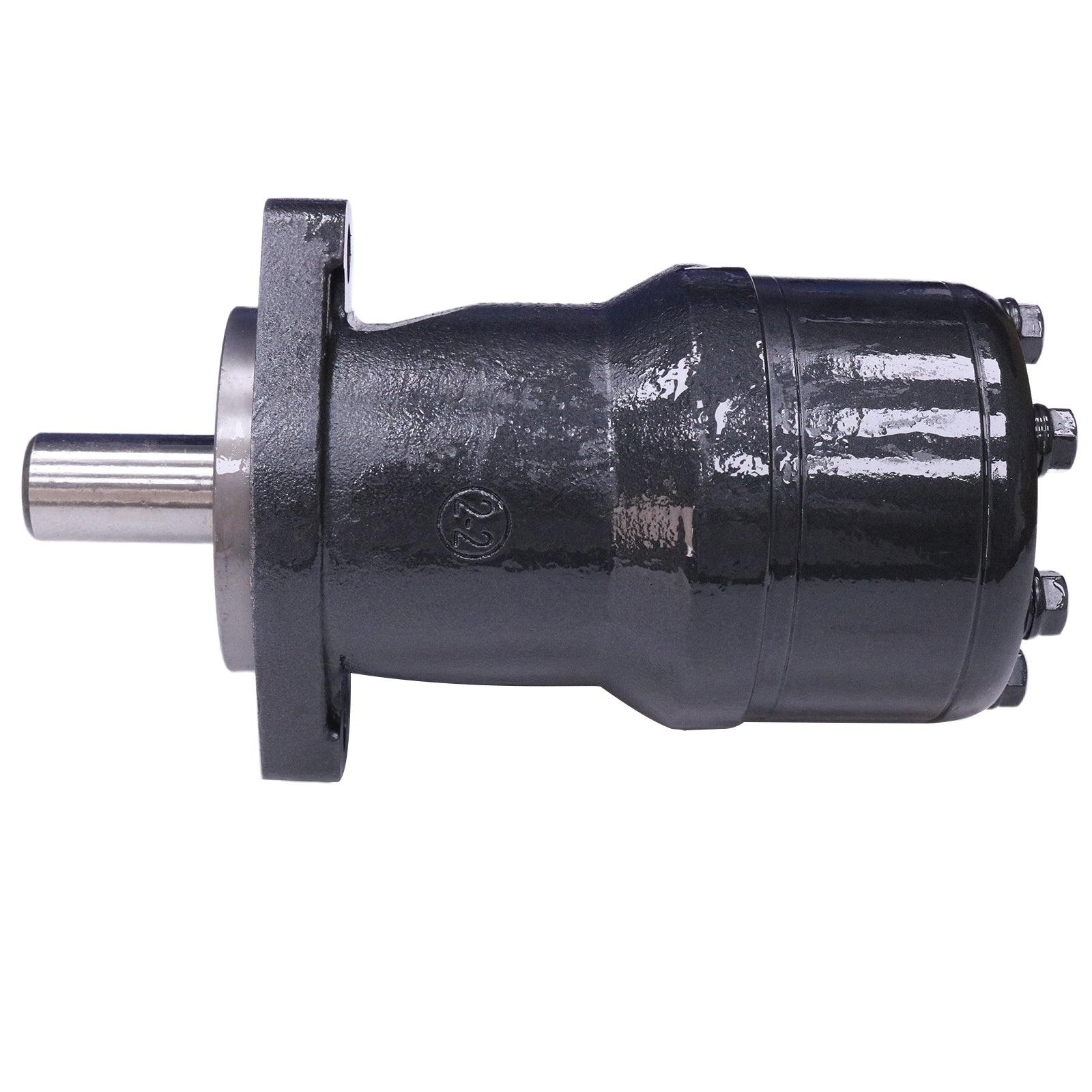

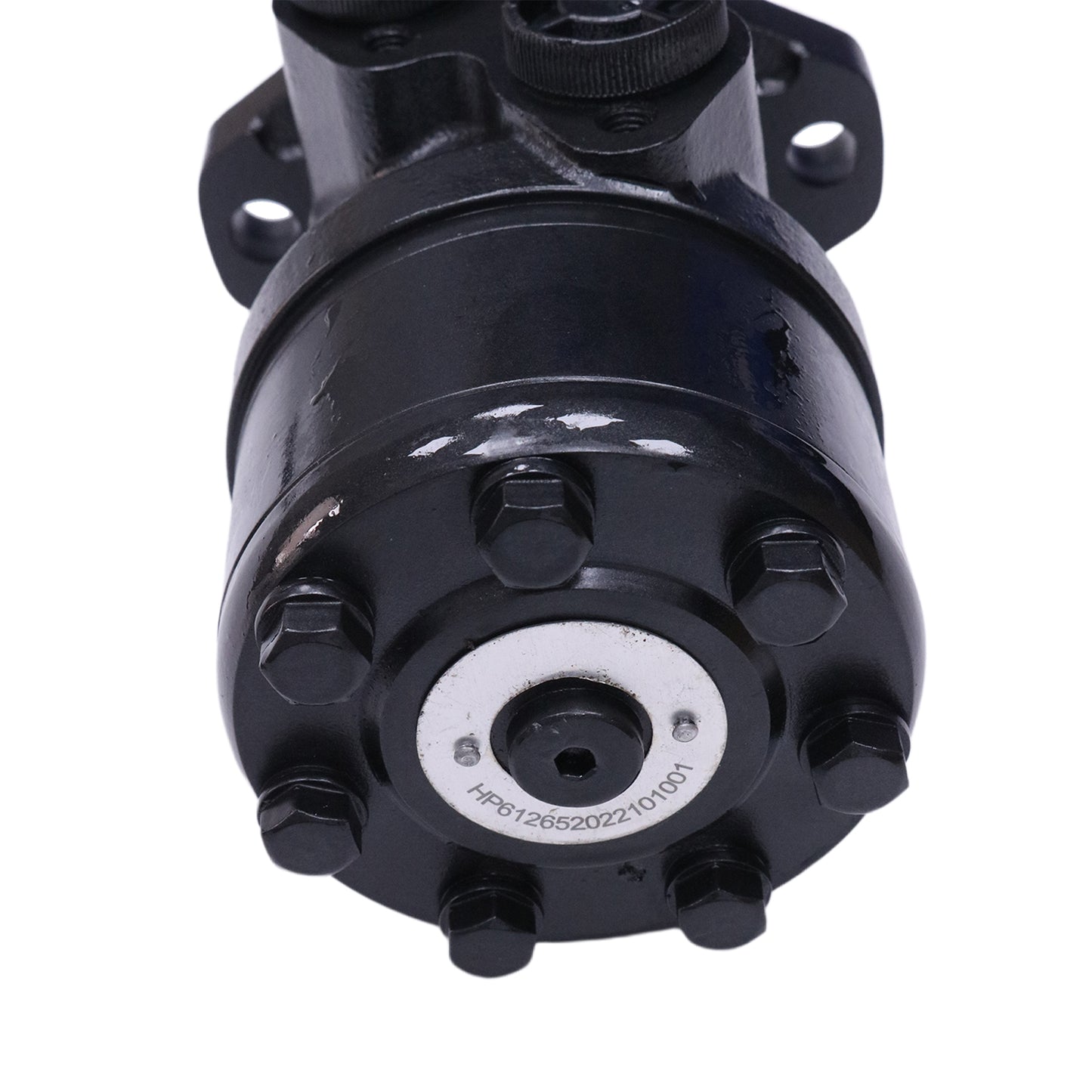

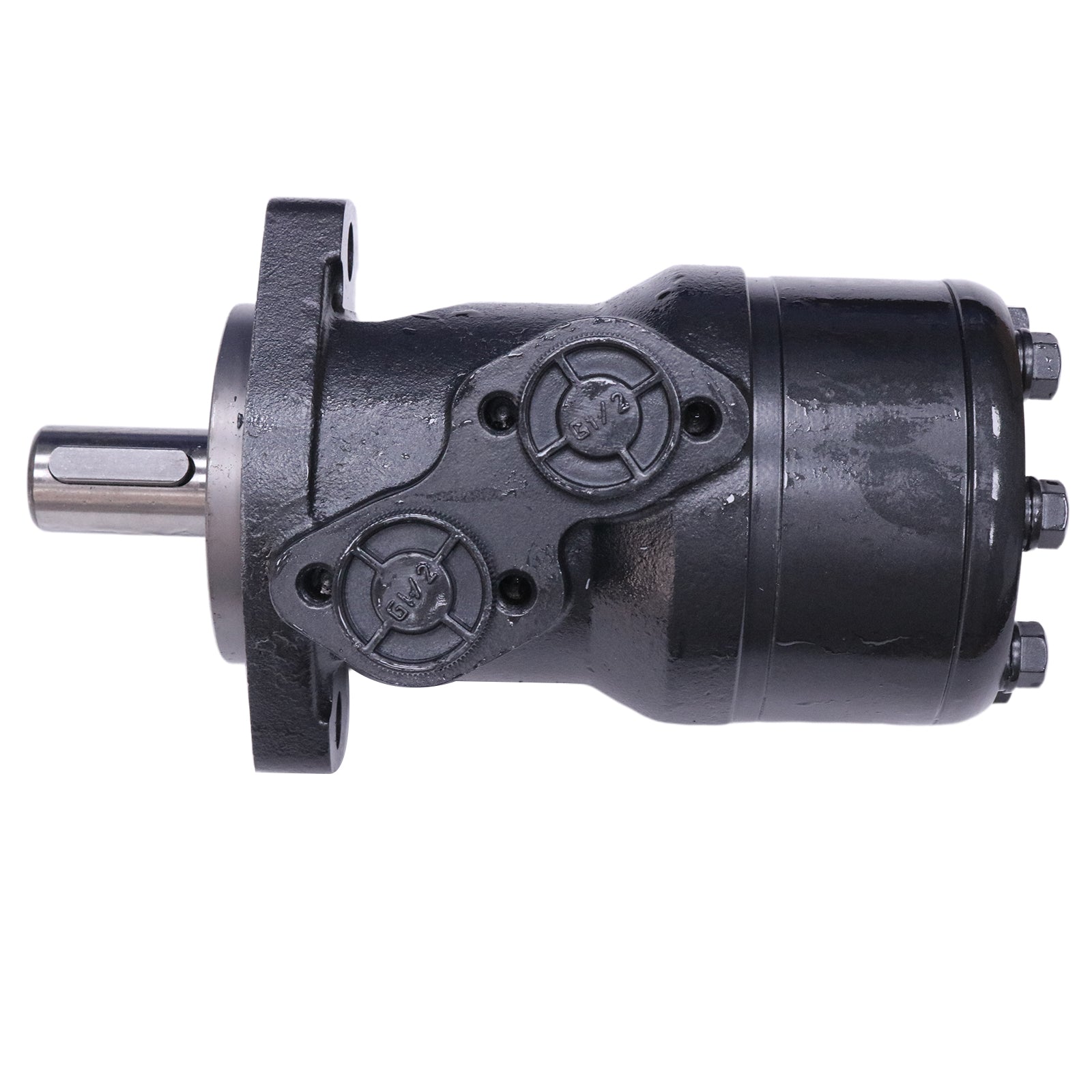

Part Name: Hydraulic Orbital Motor Manufacturing Part Number: OMR x 200 - 11186665, OMR200 - 151-0715, 1510715 Specification:
Type:OMR
Motor Size: 200
Geometric displacement: 199.8 cm³/[12.23in] Max speed cont: 300 rpm Max speed int: 375 rpm Max torque cont: 300Nm/[3660lbf in] Max torque int: 390Nm/[3450lbf in] Max output power cont: 7.7kW/[10.3hp] Max output power int: 9.8kW/[13.1hp] Max pressure drop cont: 110 bar[1600psi] Max pressure drop int: 140 bar[2030psi] Max pressure drop peak: Max oil flow cont: 60L/min Max oil flow int: 75L/min Max starting pressure with unloaded shaft: 5bar/[75psi] Min starting torque at max press drop cont: 260Nm/[2300lbf in] Min starting torque at max press drop int: 330 Nm/[2920lbf in] Max inlet pressure cont: 175bar/[2540psi] Max inlet pressure int: 200bar/[2900psi] Max inlet pressure peak: 225bar/[3260psi] Max return pressure with drain line cont: 175bar/[2540psi] Max return pressure with drain line int: 200bar/[2900psi] Max return pressure with drain line peak: 225bar/[3260psi]
