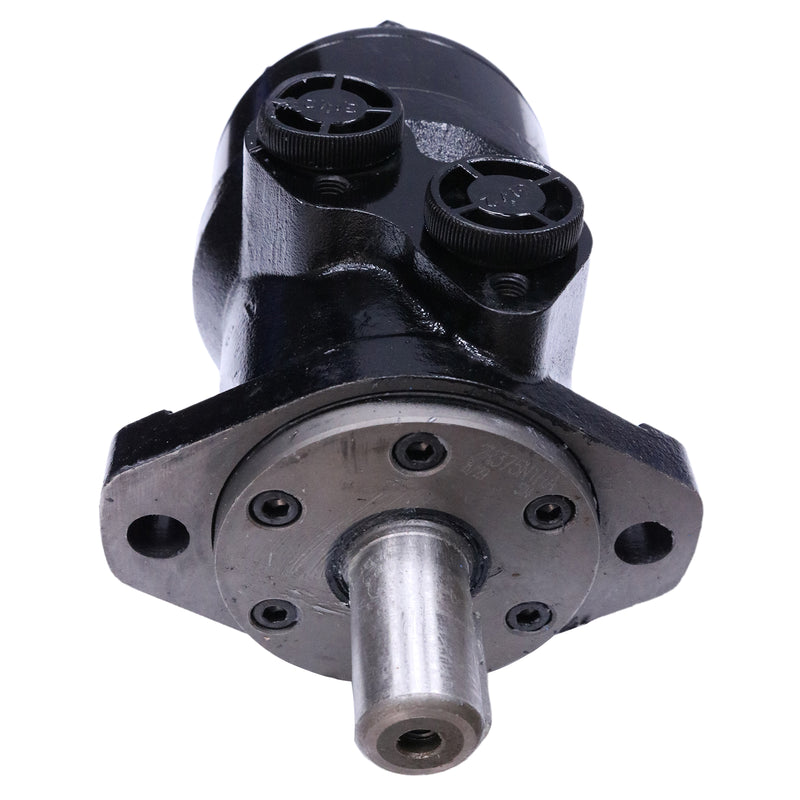

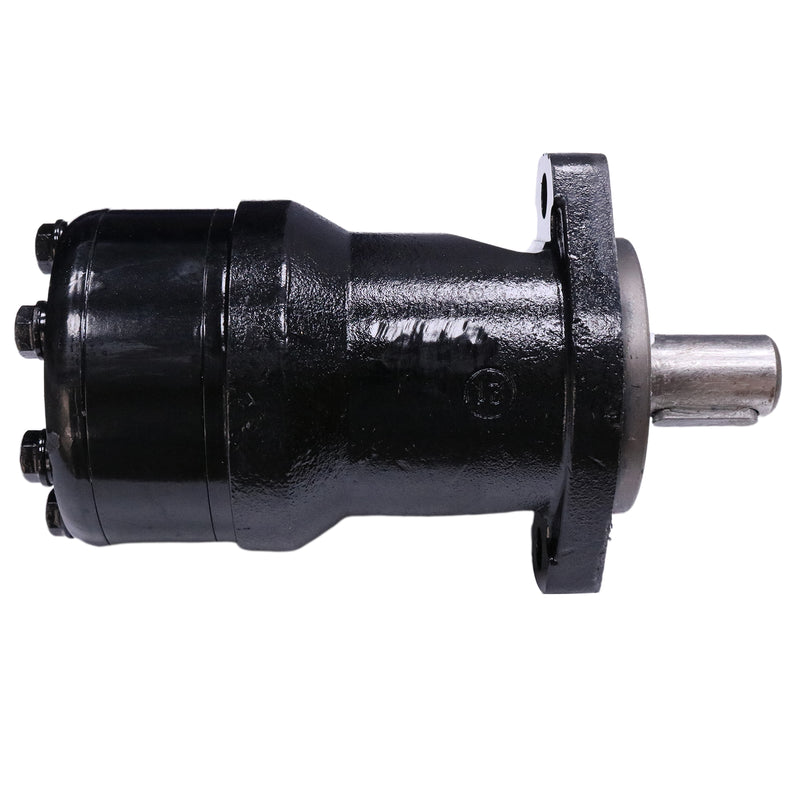

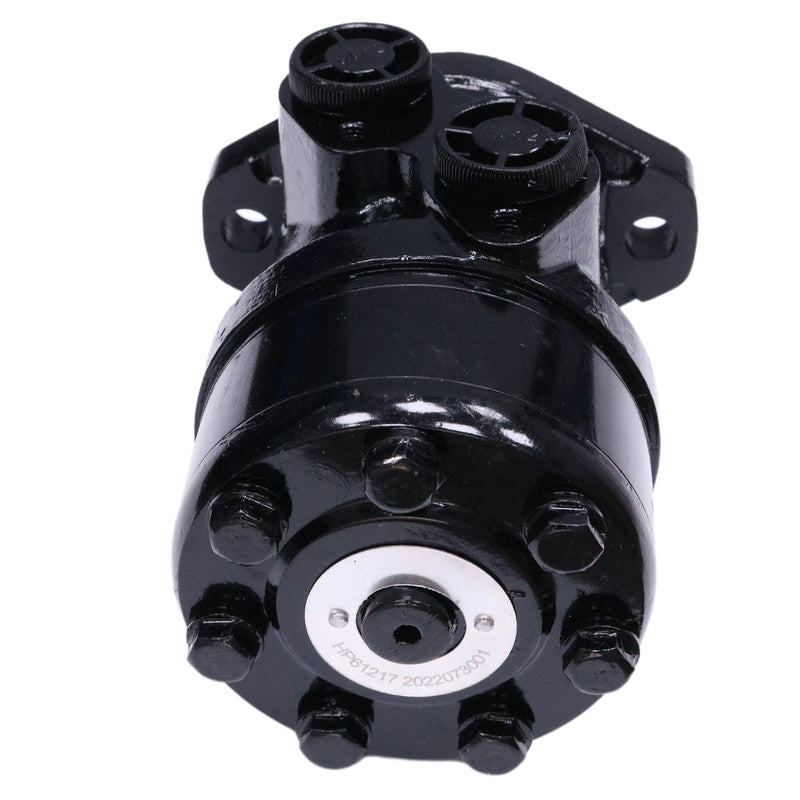

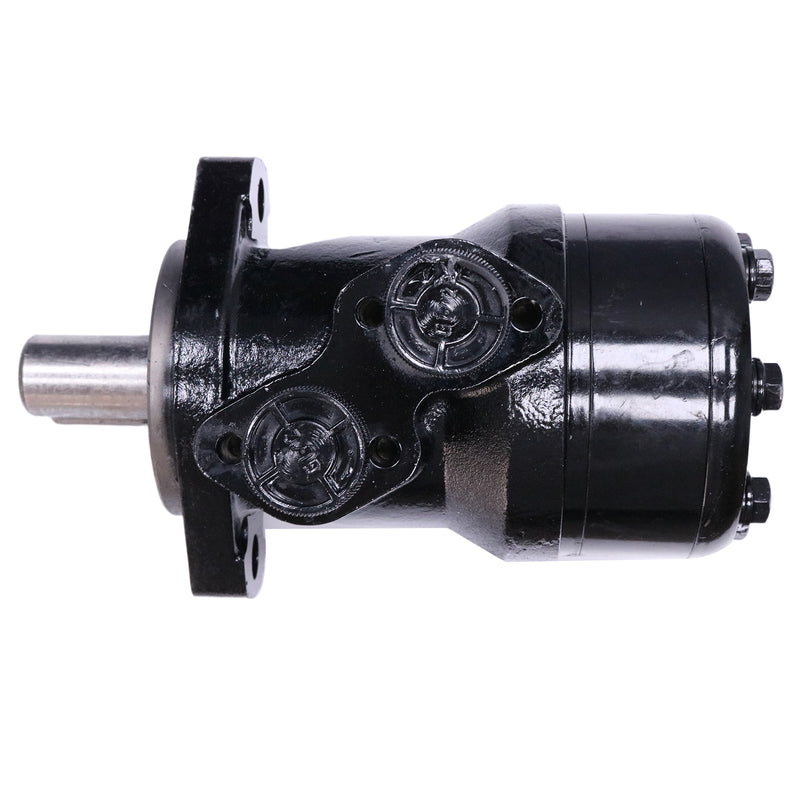

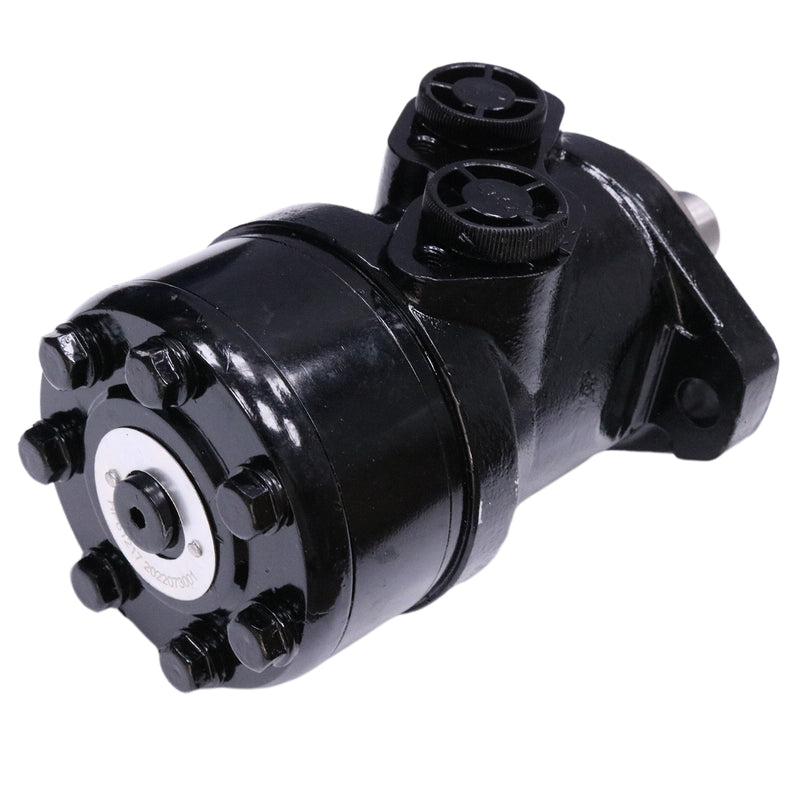

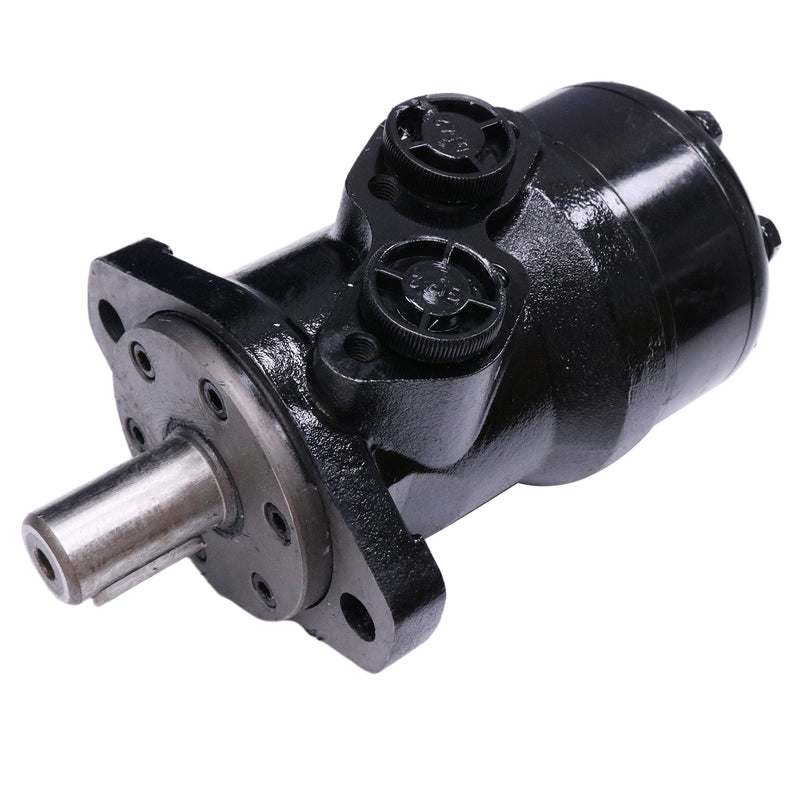

Part Name: Hydraulic Orbital Motor Manufacturing Part Number: OMP X 160-11186705, OMP160-1510614, OMP1601510614, OMPX16011186705 Specification:
Geometric displacement: 155.7cm³/[9.53in] Max speed cont: 385 rpm Max speed int: 480 rpm Max torque cont: 300Nm/[2660lbf in] Max torque int: 370Nm/[3280lbf in] Max output power cont: 10.0kW/[13.4hp] Max output power int: 12.0kW/[16.1hp] Max pressure drop cont: 140bar/[2030psi] Max pressure drop int: 175bar/[2540psi] Max pressure drop peak: 225bar[3260psi] Max oil flow cont: 60L/min Max oil flow int: 75L/min Max starting pressure with unloaded shaft: 7bar/[100psi] Min starting torque at max press drop cont: 280Nm/[2480lbf in] Min starting torque at max press drop int: 350Nm/[3100lbf in] Max inlet pressure cont: 175bar/[2540psi] Max inlet pressure int: 200bar/[2900psi] Max inlet pressure peak: 225bar/[3260psi] Max return pressure with drain line cont: 175bar/[2540psi] Max return pressure with drain line int: 200bar/[2900psi] Max return pressure with drain line peak: 225bar/[3260psi]
