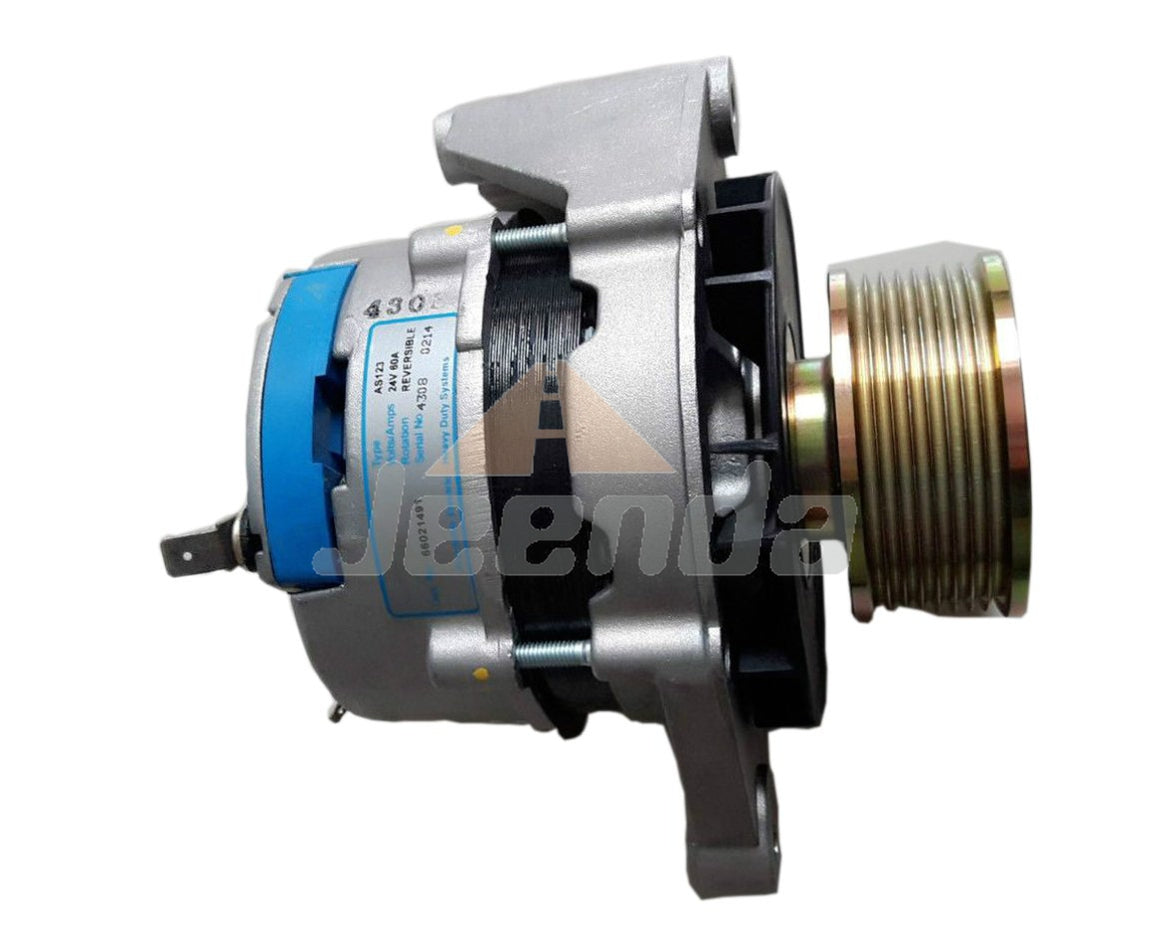

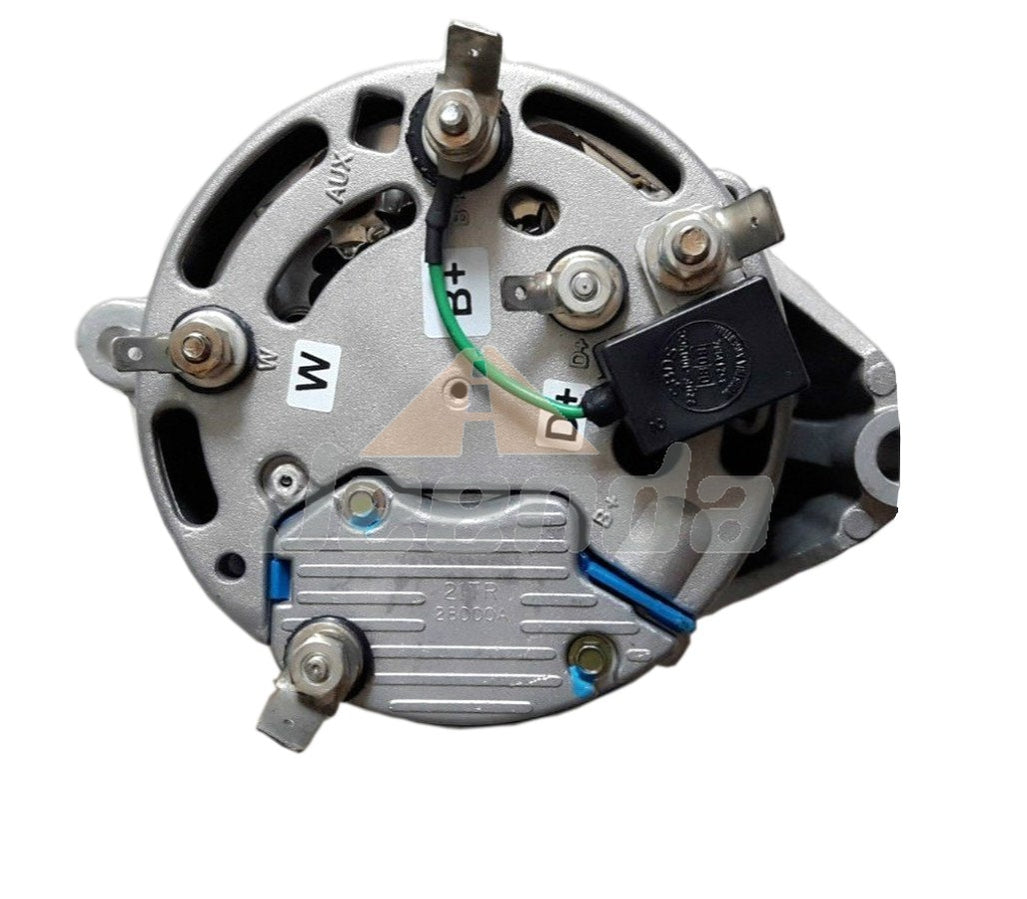

Free Shipping Alternator 108-275 108-026 4308-0241 24V 80A 8S for Caterpillar FG Wilson Perkins Engine

OE Number：108-275 108-026 4308-0241 859444 66021491

Type：Alternator

Package:1*Alternator

Application：Caterpillar FG Wilson Perkins Engine

Details：

Notes NOT AVAILABLE- 19MM SHAFT; 8 GROOVE POLYVEE PULLEY
NEW, FIELD ISOLATION FOR PETROL TANKERS
FIX CIRCLE (MOUNT): 88.9MM
FIX CIRCLE (ADJUSTER): 93.1MM
BRACKET ANGLE: 0°
CUT IN SPEED: 1680, MAX SPEED: 15000
WEIGHT: 5.1KG
System voltage 24
Output 55
Mounting style SPOOL
Dimensions in MILLIMETERS
Rotation BI-DIRECTIONAL
Housing coating RAW
UL Approved No
Spool length 76mm
Mounting ear size 9
Mounting holes 11.2
Positive stud size M5/9.5 LUCAR BLADE
Negative stud size M6/9.5 LUCAR BLADE
Rectifier location INTERNAL
Shaft diameter 19 MM
Excitation type
Regulator location
Regulator number
Diode trio No
Pulley included 8K, 82mm
Lamp driver No
Adjustable regulator No
Remote sense No
Smart check No
Batteryless No
