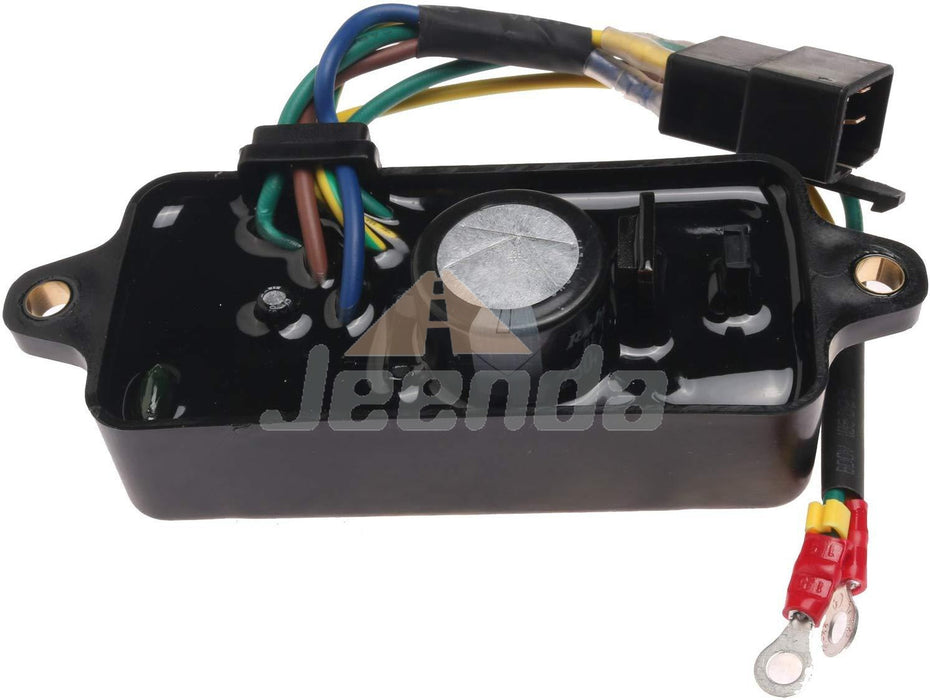

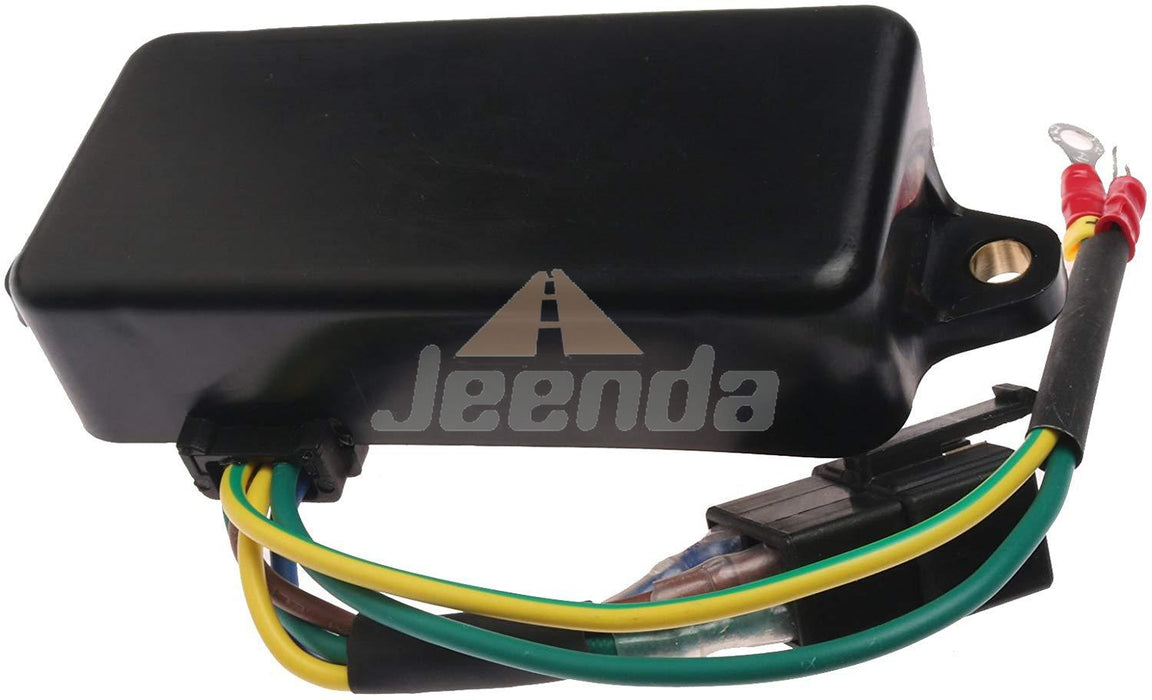

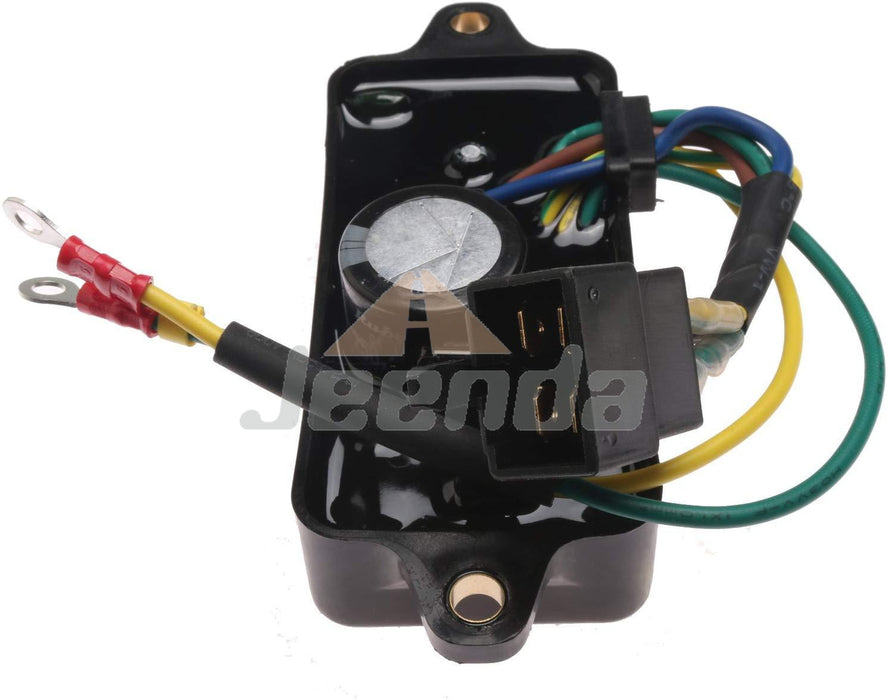

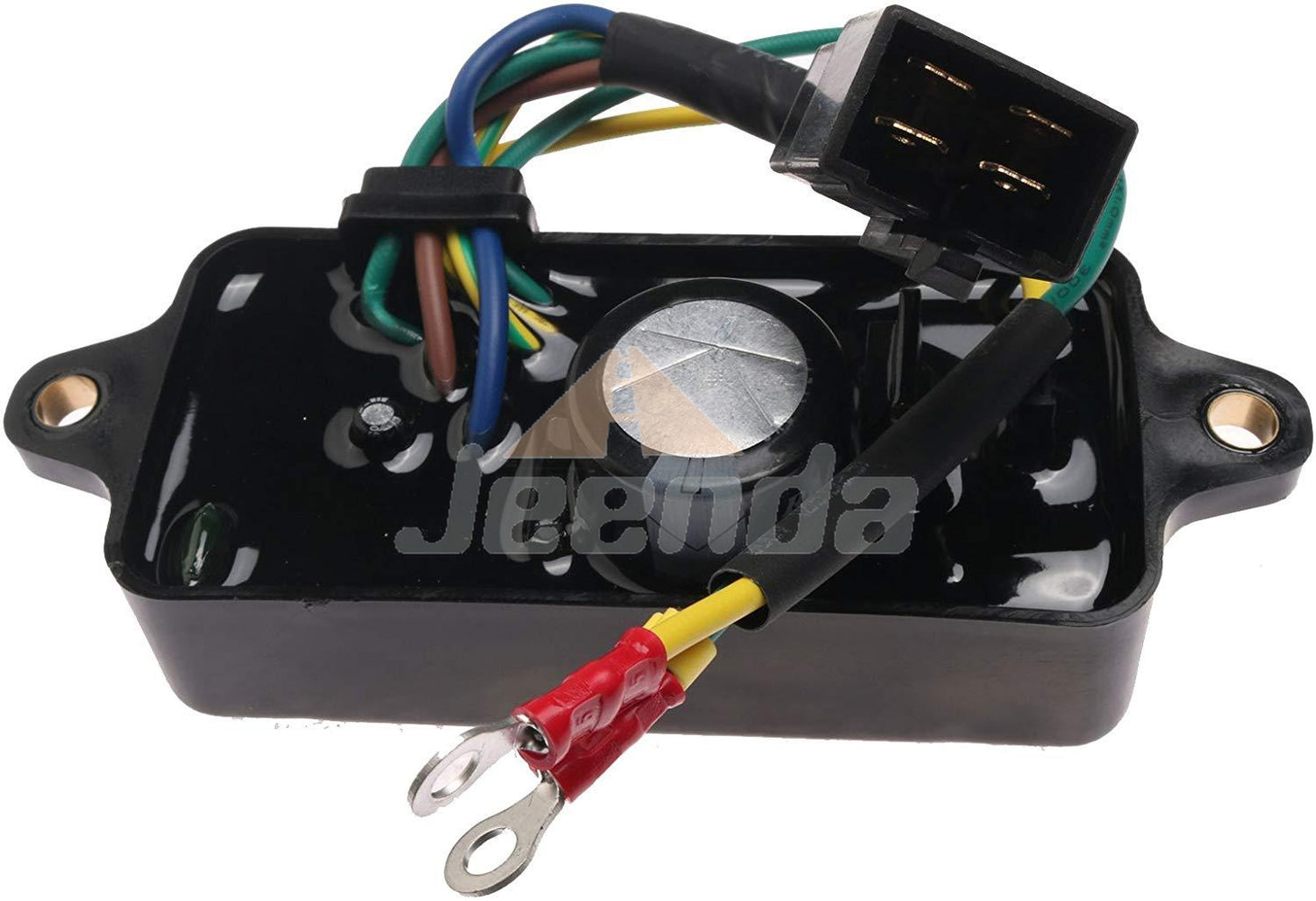

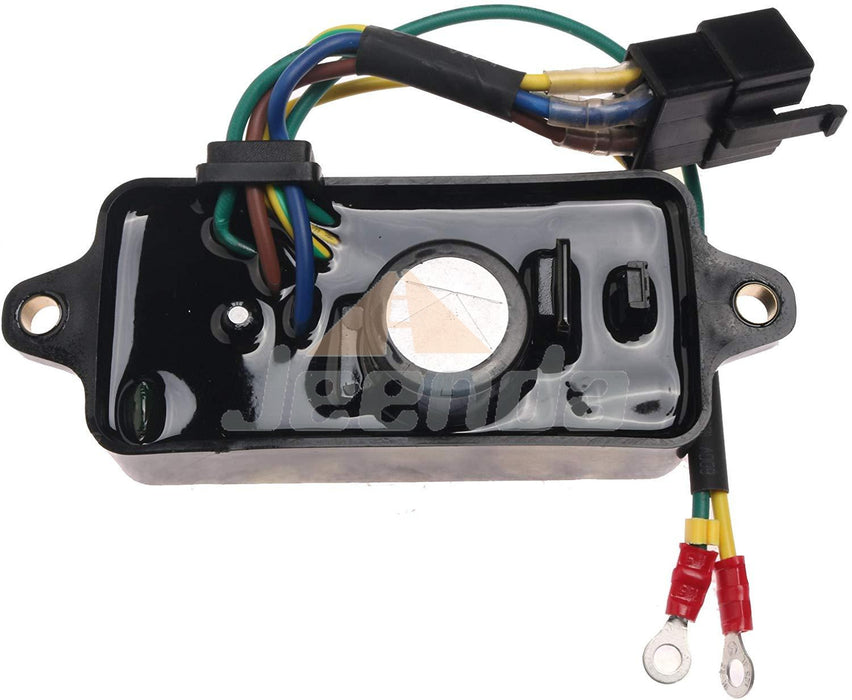

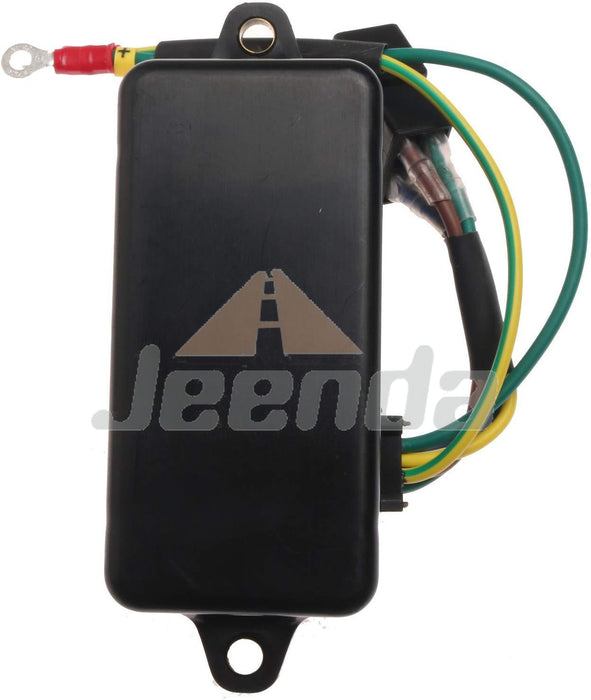

JEENDA Automatic Voltage Regulation AVR EC2500 for Honda
JEENDA Automatic Voltage Regulation AVR EC2500 for Honda

JEENDA Automatic Voltage Regulation AVR EC2500 for Honda

by Honda
$19.00
SKU HW0705013

Voltage Regulator for Honda EP-1800 EM2200 EC2500 EP-2500 EX800 Generator

Specification:
  • Sensing Input Voltage 18 - 24 VAC, 1 phase 2 wire
  • Voltage Regulation < ±2% (within 4% engine governing)
  • Power Input: Voltage 60 - 90 VAC, 1 phase 2 wire
  • Voltage Build Up Residual volts at AVR terminal >1 VAC
  • Excitation Output Voltage 5 - 85 VDC
  • Voltage Adjust Range 110 VAC ± 15%
  • Current: Continuous 3A, Intermittent 4A for 60 sec
  • Thermal Drift 0.05% per change in AVR ambient
  • Field / rotor resistance: minimum 25 Ω
  • Environment
  • Vibration 1.5G @ 5 - 30 Hz 5.0G @ 30 - 500 Hz Relative Humidity < 95%
  • Operating Temperature -40 ~ 60 C
  • Storage Temperature -40 ~ 85 C
