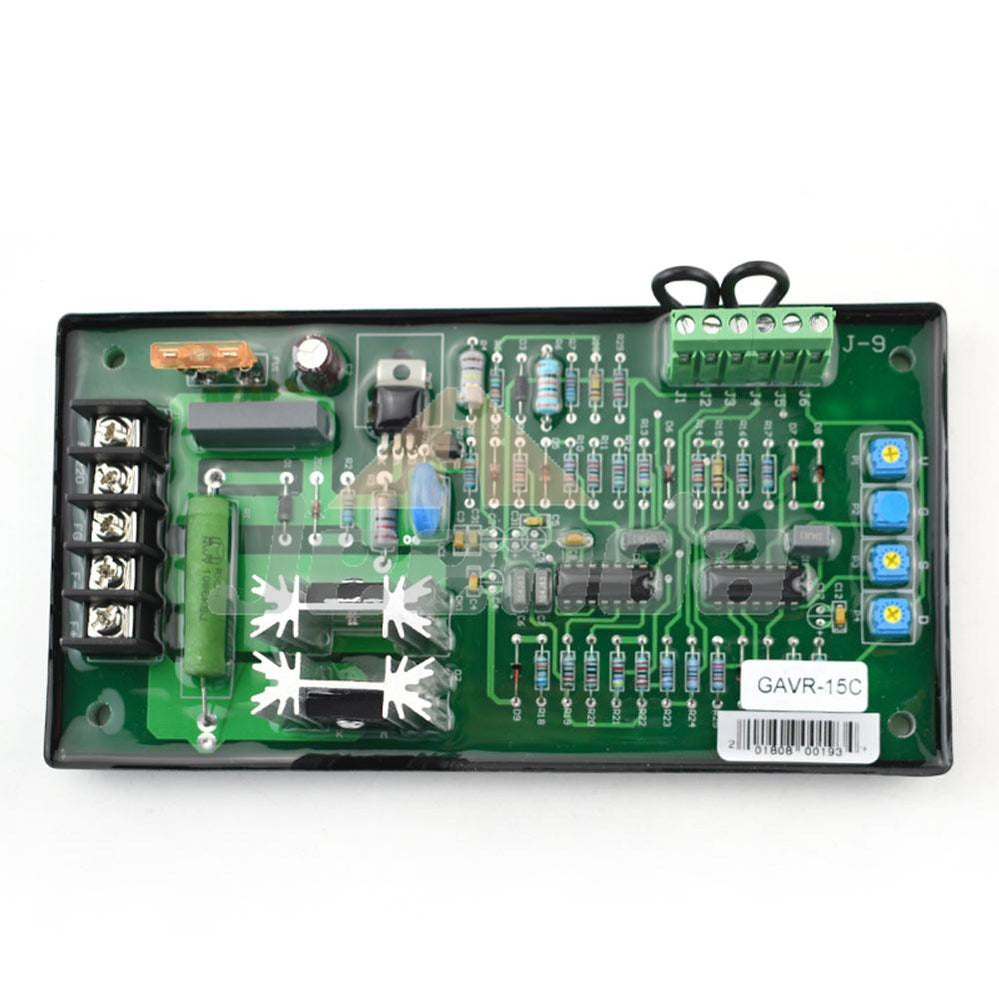

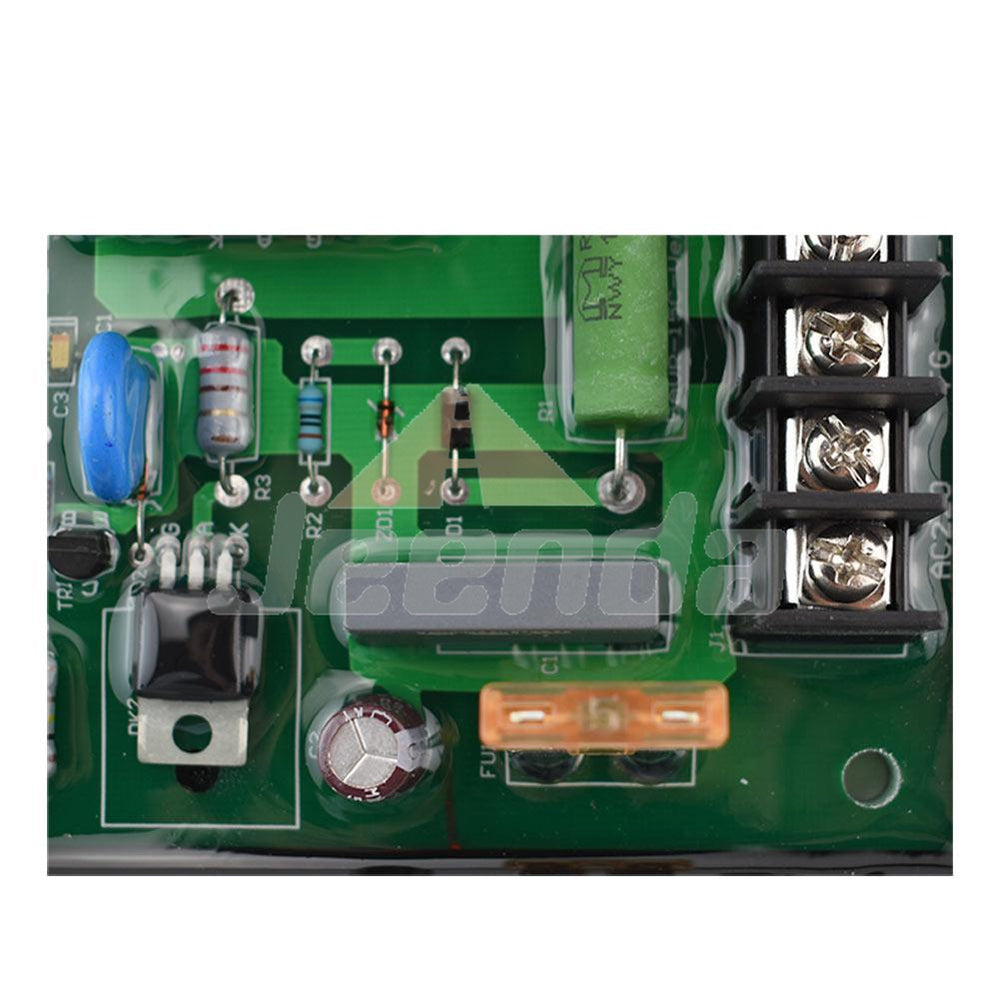

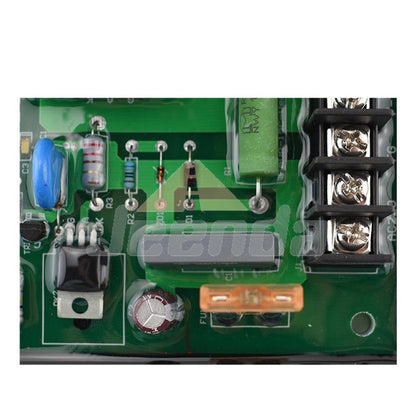

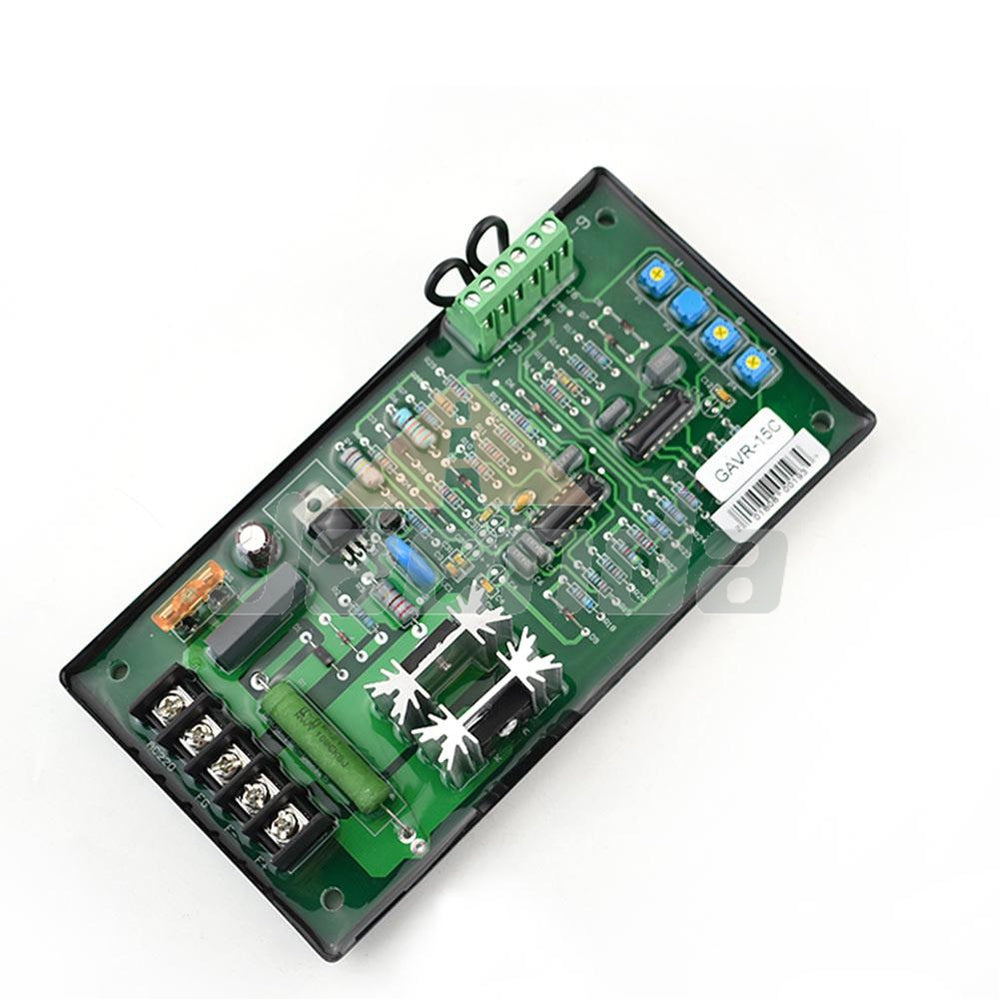

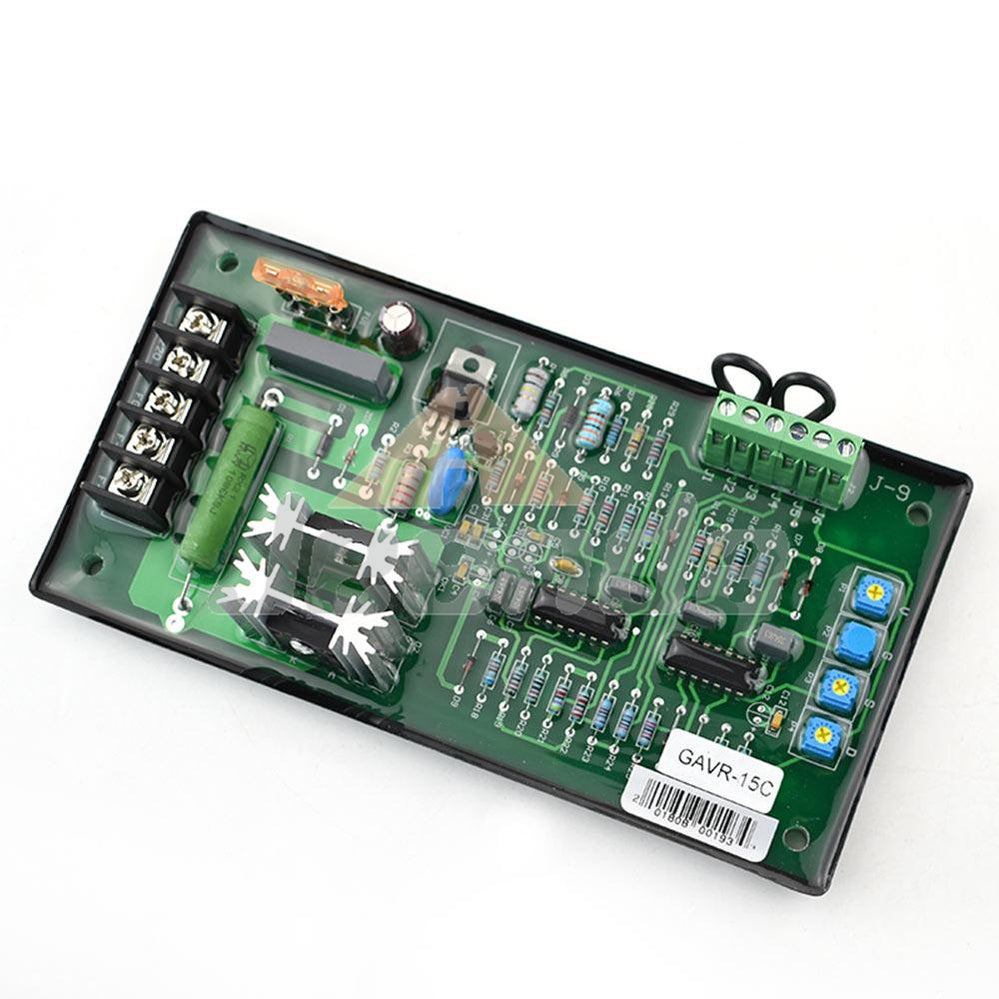

Circuit Board GAVR-15C

Product Description:

GAVR-15C generator AVR is Universal 15 Amp 1/2 Wave Self Excited Dip-Switch Programmable Automatic Voltage Regulator.

Mains features:

1、<士0.5% Regulation

2、220/400 VAC Pmgrammahle Input

3、Rugged Compact Design

4、With Under Frequency Protection

5、Soft Start Voltage Ramping

6、EMI Suppression

7、Built-High, Capacity 15Amp Fuse

Specifications:

Sensinglnput Voltage:220/400V AC, I phase2wire

PoNNerlnput Voltage:180-24OVAC,I phase2wire

Output      Voltage:Max.9OVDC CC240VAC input

                  Current:Continuous 6A

                  Intermittent 12A for 10SEE.

Resistance: Min.10 Q Max.100 Q

Volts Regulation: <+-0.5%(with 4% engine governing)

VoltageBuild-up            Residualvolts at A VR teminal>5 VAC

External Volts Adjustment  士7%with 1 K 0 1 watt trimmer

Soft Start Ramp Time       3sec.

Unit Power Dissipation     Maix.8Watt

EMI Suppression            Internal Electromagnetic Interference Filtering

Thermal.Drift              0.05%per0C charge in A VR ambient

Under Frequency Protection 6OHz system presets knee point at 57Hz

(Factory Settings)         50Hz system presets knee point at 47Hz

Environment

Vibration: 3G@ 100-2K Hz

Operating Temperature:-40-65 0C

Relative Humidity:<95%

Storage Temperature:-40-85 C
