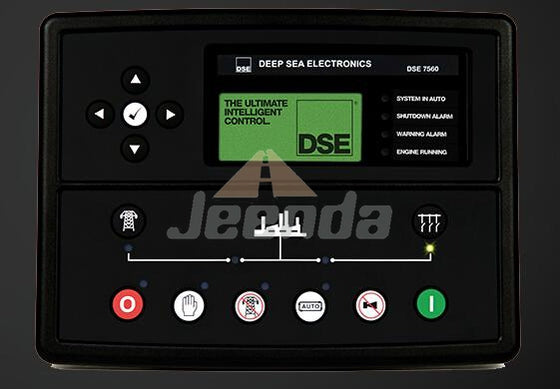

Deep Sea DSE7560 Auto Transfer Switch Mains (Utility) Control Module
Deep Sea DSE7560 Auto Transfer Switch Mains (Utility) Control Module
MODULE CAPABILITIES
Fixed export with mains (utility) supply
Will synchronize any combination of up to 16 gensets with up to 16 mains (utilities) up to a maximum of 20 in one system e.g. 16 gen-sets + 4 mains, 4 gensets + 16 mains etc
KEY LOAD SHARE FEATURES
Fixed export with mains (utility)
Volts and frequency matching
kW and kV Ar sharing
Dead bus sensing
Peak lopping
Peak shaving
No break return
Load demand scheme
R.O.C.O.F & Vector Shift
Mains (utility) de-coupling test facility
Multiple mains (utility) monitoring
Synchronizing up to 16 generators
Sequential start
Auto-ID negotiation
KEY FEATURES
4-Line backlit LCD text display
Five key menu navigation
Front panel editing with PIN protection
Multiple display languages
LED and LCD alarm indication
Customizable status screens
9 configurable inputs
5 configurable outputs
Configurable timers and alarms
Multiple dates and time scheduler
Event log (25)
Mains (utility) fail to monitor
Automatic load transfer between mains (utility) and generator
Manual load transfer between mains (utility) and generator
Audible alarm
Backed-up real-time clock
Fully configurable via by DSE7500 PC software
Multiple display languages
Remote SCADA monitoring and control via DSE7500 PC software
RS485 communications
KEY BENEFITS
132 x 64 Pixel ratio display for clarity
The real-time clock provides accurate event logging
Remote monitoring of module using comprehensive DSE7500 PC software
Ethernet communications (via DSE860/865 modules), provides advanced remote monitoring at low cost
Modules can be integrated into building management systems (BMS)
Surplus energy/power can be sold back to the grid (subject to local mains/utility supplier)
License-free PC software
IP65 rating (with supplied gasket) offers advanced protection from water ingress
