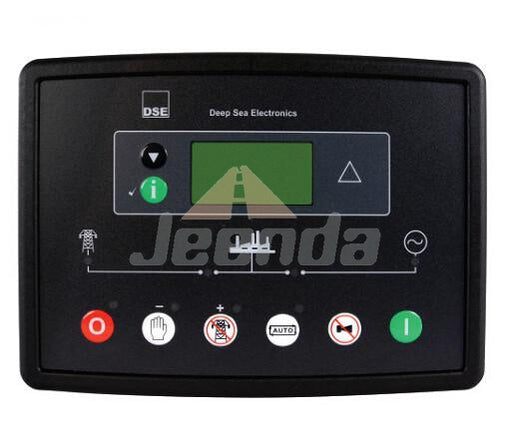

DSE6020 Auto Mains Failure Control Module

KEY FEATURES

• Large back-lit icon display

• Heated display option available

• Fully configurable via the fascia or PC using USB communication

• Efficient power save mode

• 3 phase generator sensing

• 3 phase mains (utility) sensing (DSE6020 MKII only)

• Generator/load power monitoring (kW, kV A, kV Ar, pf)

• Generator overload protection (kW)

• Generator/load current monitoring and protection

• Breaker control via fascia buttons

• Fuel and start outputs, configurable when using CAN

• 4 configurable DC outputs

• 4 configurable analogue/digital inputs

• 6 configurable digital inputs

• Support for 0-10 V & 4-20 mA oil pressure sensors

• Configurable staged loading outputs

• CAN, MPU and alternator speed sensing in one variant

• 3 engine maintenance alarms

• Engine speed protection

• Engine hours counter

• Engine pre-heat

• Engine run-time scheduler

• Engine idle control for starting & stopping

• Fuel pump control

• Real-time clock

• Battery voltage monitoring

• Start on low battery voltage

• Configurable remote start input

• 1 alternative configuration

• Comprehensive warning, electrical trip or shutdown protection upon a fault condition

• LCD and LED alarm indication

• Configurable event log (50)
