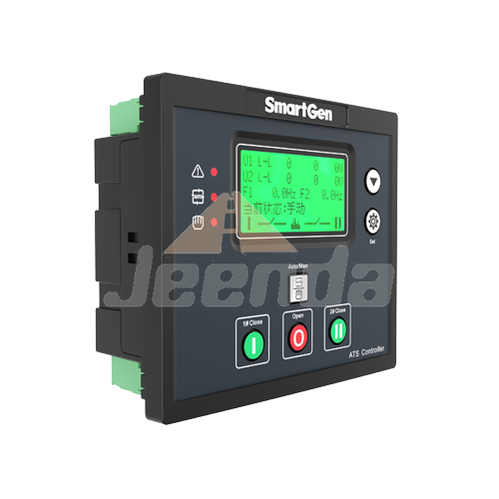

SmartGen HAT560NBC ATS controller PC Two-stage PC Three-stage CB and CC switch
SmartGen HAT560NBC ATS controller PC Two-stage PC Three-stage CB and CC switch
通常価格
$135.00 USD
通常価格
$135.00 USD
セール価格
$135.00 USD
配送料はチェックアウト時に計算されます。
- 1. System type can set as: Mains (1#) & Generator (2#), Generator (1#) & Mains (2#), Mains (1#) & Mains (2#), Generator (1#) & Generator (2#).
- 2. 132x64 LCD with backlight, optional Chinese and English display, push-button operation.
- 3. Measure and display 2-way 3 phase Voltage and Frequency:
- 4. Over/under voltage, loss of phase, reverse phase sequence, over/under frequency protection.
- 5. Automatic/Manual mode. In manual mode, can force the switch to close or open;
- 6. All parameters can be set on site. Two different passwords which ensure authorized staff operation only.
- 7. During commissioning, the genset can be set either on On-load or Off-load mode.
- 8. ATS Controller has the function of automatic Re-closing.
- 9. The closing output signal can be set as on intervals or as continuous output.
- 10. Applicable for ATS of one neutral position, two neutral positions and non-position.
- 11. Applicable for 2 isolated neutral lines.
- 12. Real-time clock (RTC).
- 13. The event log can record 50 items circularly.
- 14. Scheduled start & stop generator (can be set as start genset once a day/week/month whether with load or not).
- 15. Can control two generators to work in a cycle, even the genset running time and crank rest time can be set.
- 16. Optional AC system or DC system.
- 17. With standard LINK communication interface. With "remote controlling, remote measuring, remote communication" function by the Modbus communication protocol. Can remote start/stop the genset and remote control the ATS to close or open?
- 18. With RS485 isolated communication interface. With "remote controlling, remote measuring, remote communication" function by the ModBus communication protocol; or remote measuring the status of incoming cabinet and remote controlling the ATS to close/open by the front-end intelligent device (YD/T 1363.3－2005) protocol.
- 19. Can check the current status of the controller (digital input port, a digital output port, over-voltage, under-voltage, over frequency, under frequency, etc.).
- 20. Suitable for various AC systems (3 phase 4-wires, 3-phase 3-wires, single-phase 2-wire, and 2-phase 3-wire).
- 22. Modular design, self-extinguishing ABS plastic shell, pluggable terminal, built-in mounting，compact structure with easy installation.
