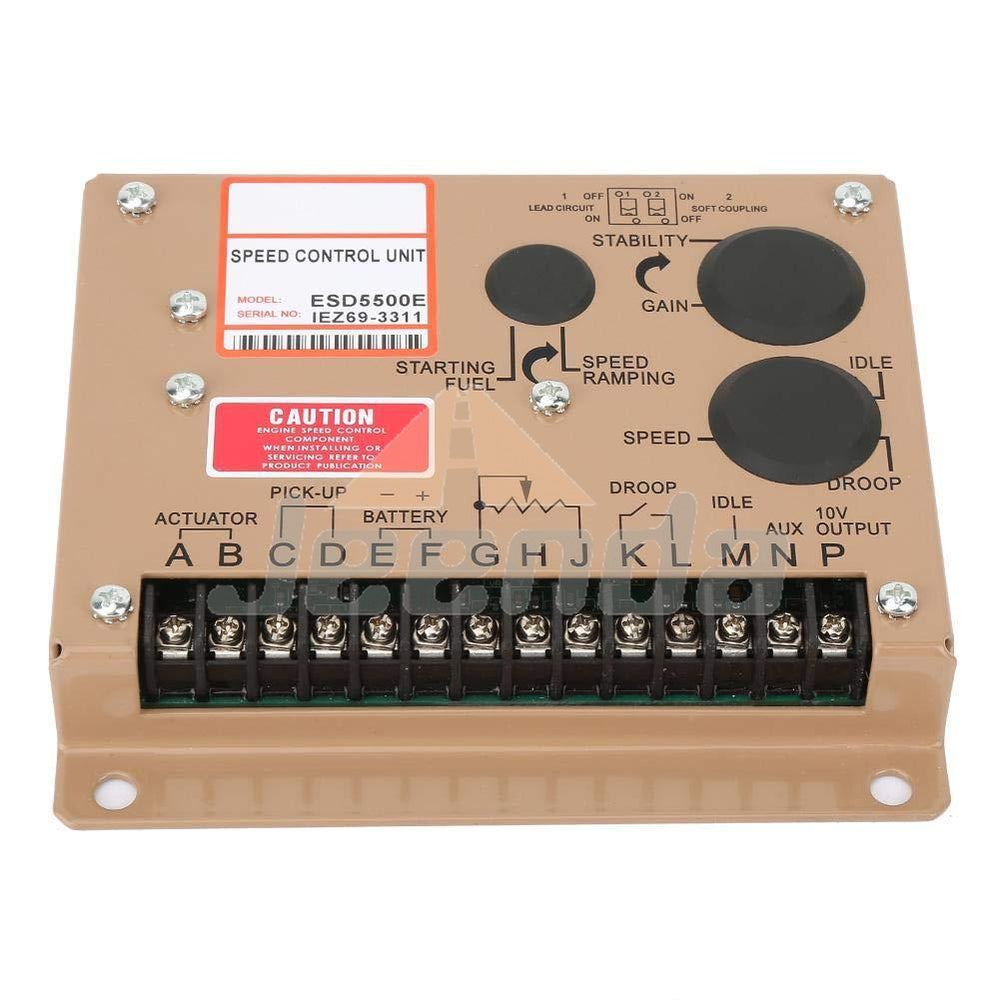

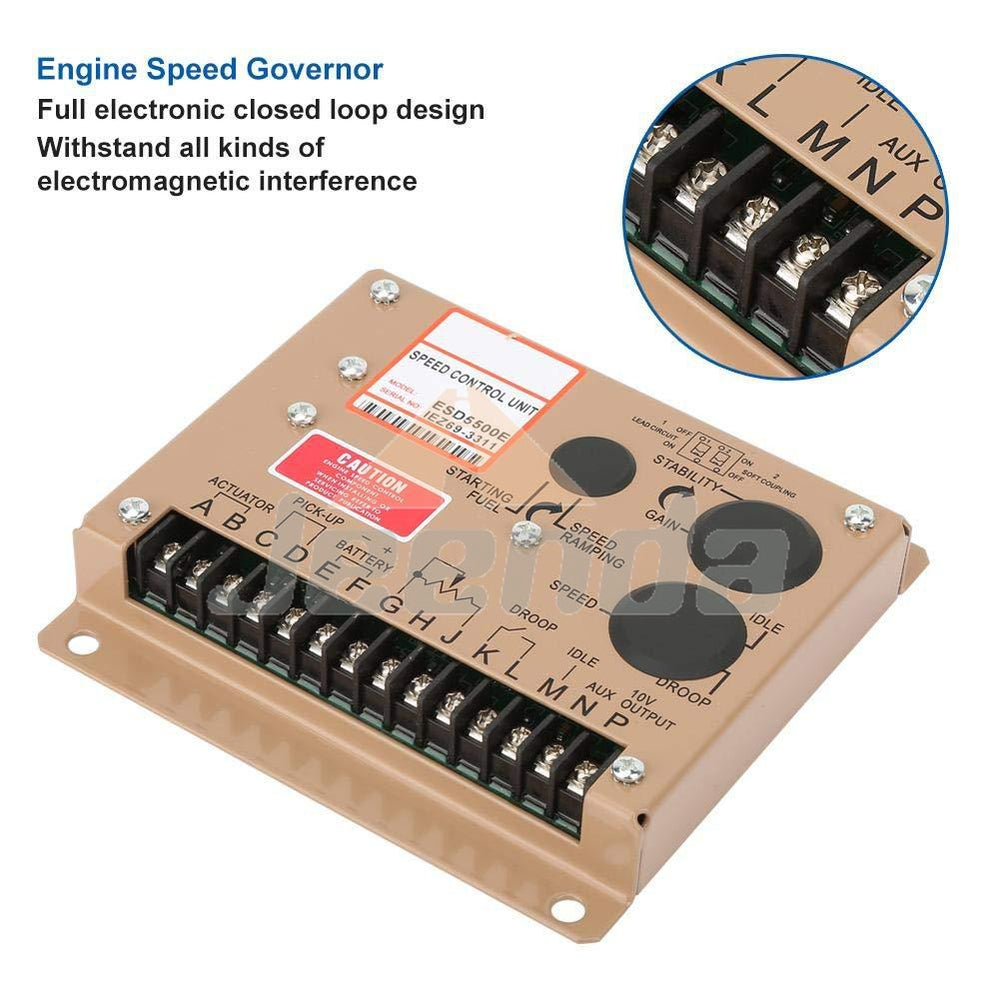

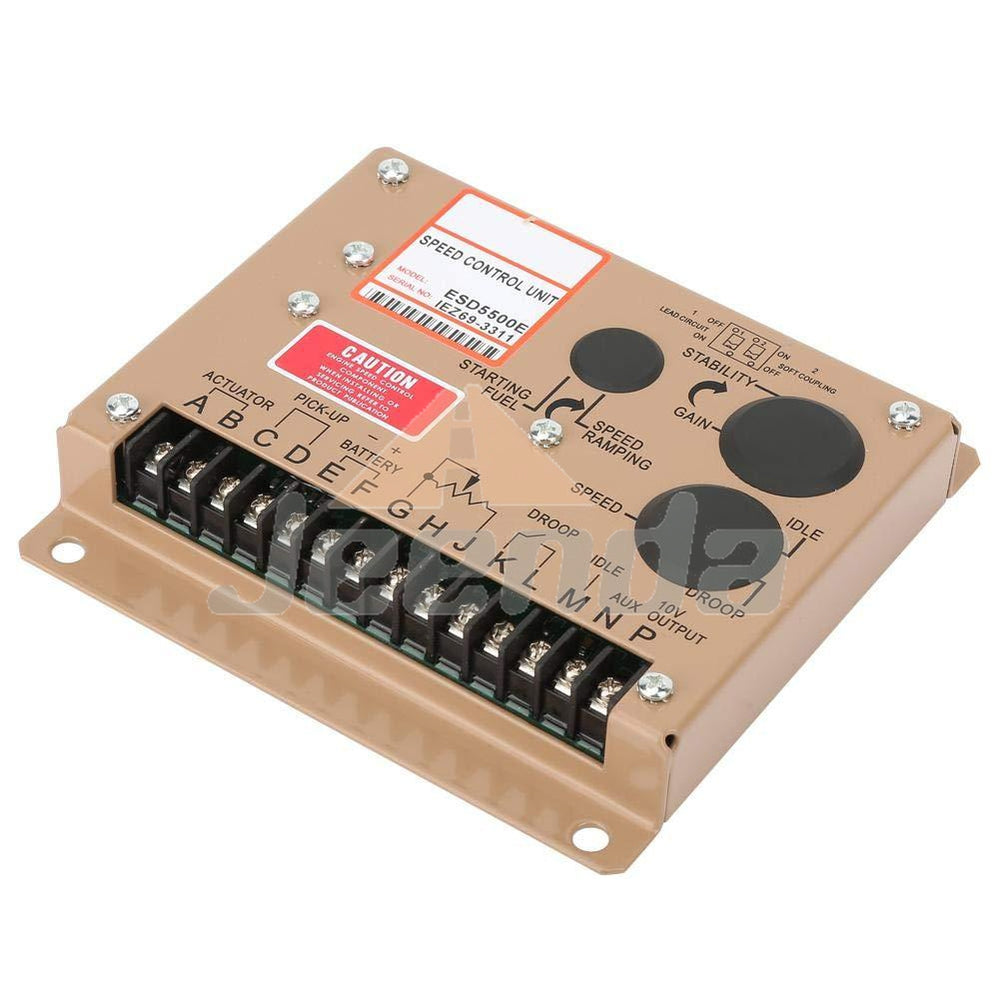

Free Shipping Controller ESD5500E for Speed Controller Governor

Free Shipping Controller ESD5500E for Speed Controller Governor

$69.00 USD
$69.00 USD $69.00 USD
セール 売り切れ
配送料はチェックアウト時に計算されます。
Specification:
  • Model: ESD5500E
  • Speed range: 1KHz ~ 7.5KHz
  • Thermostability: Max.+1%
  • IDLE adjustment: 160±20Hz ~ 95% of rated speed
  • DROOP adjustment: The minimum position is 15Hz +6Hz/ load current change per ampere
  • The maximum position is 400Hz +75Hz/ load current change per ampere
  • External speed adjustment:±200Hz (external 1KQ)
  • Weight: Approx.600g/ 21.2oz
Input power:
  • Supply 12 or 24V DC Battery Systems(Transient and Reverse Voltage Protected)
  • Polarity Negative Ground(Case Isolated)
  • Power Consumption 50mA continuous plus actuator current
  • Actuator Current Range @ 25℃-(Inductive Load) Min. 2.5 Amps, Max. 10 Amps continuous
  • Speed Sensor Signal 0.5-120 V RMS
  • Speed Switch Relay Contacts(N.O.and N.C.) 10Amp
Package List: 1 * Engine Speed Controller
