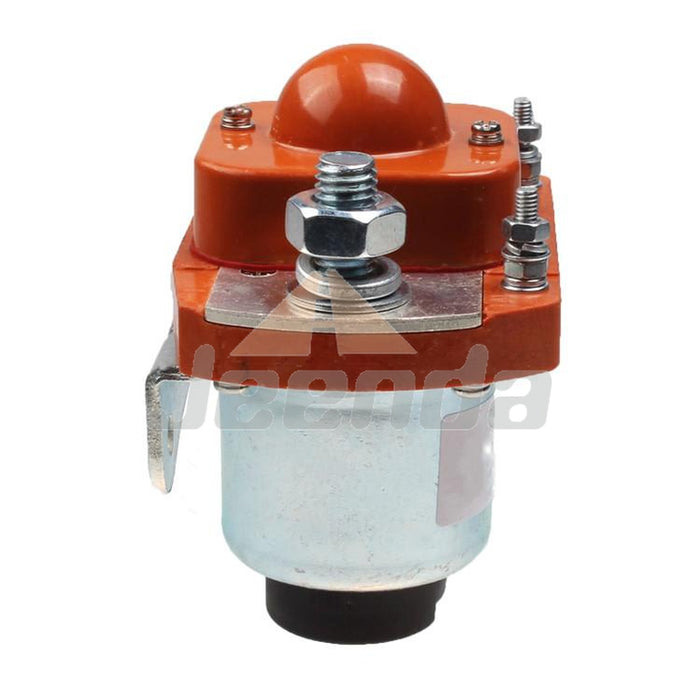

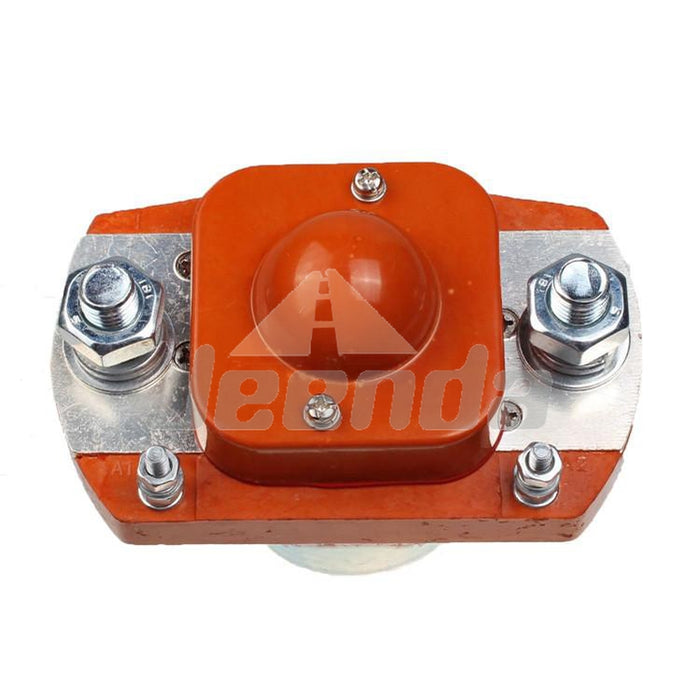

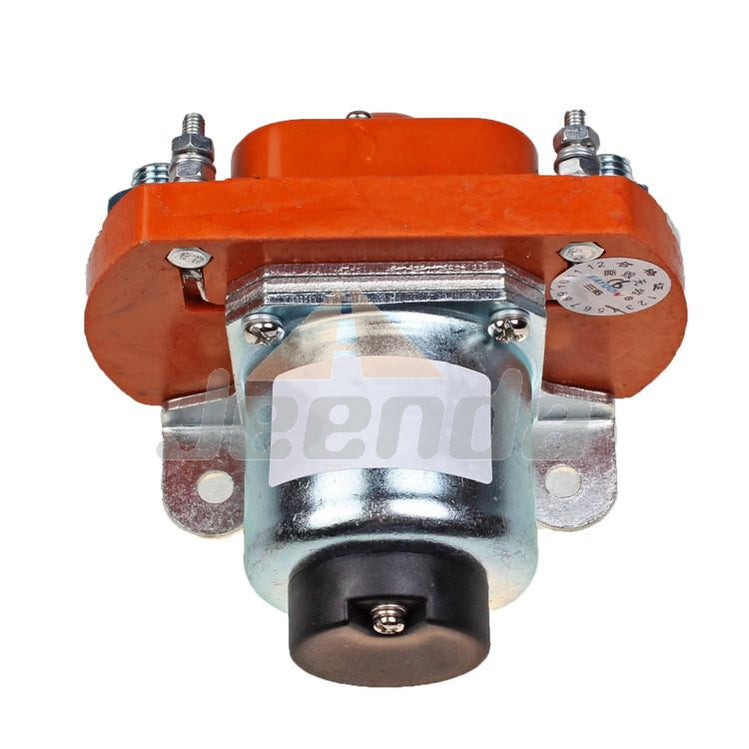

Free Shipping Main Contactor Solenoid MZJ-400A 36V 400A for Heavy Duty Golf Cart

Weight: ≤950g
Body size: 104mm*66mm*104mm (max)
Part Number:MZJ-400A

Details:

• Rated Voltage:36V
• Contact circuit rated load current (A):400A
• Typical voltage drop across contacts per 100A:≤80mV
• Under (20±5℃), Cooling Pull-in Voltage:≤70%
• Under (20±5℃), Cooling Release Voltage:≤40%, ≥5%
• Acceptable Fluctuation Range of Coil Voltage:±20%
• Electrify Time:≤30ms
• Disconnecting Release Time:≤20ms
• The Max Disconnecting Time of Contacts:≤5ms
• Insulation Resistance:≥50MΩ
• Dielectric Strength:50Hz/60Hz 1000VAC/1min
• Overload Current:≤7Ie, ≤1s
• Coil Consumption (W):≤8.0W
• Electrical Life:20000 times
• Mechenical Life:300,000 Times
• Working Mode:Continuous

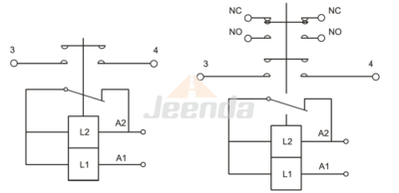

• Contacts Type:1 NO
• Contact Material:AgCdO / AgCuO
• Auxiliary Contact Rated Load:2A/48VDC, 5A/24VDC
• Technical Standard:GB14048.4-2010

The product have one normally open contact, for electric vehicles, telecommunication equipment, engineering machinery, car batteries, electric forklift trucks, trains, ships, electronic control systems such as uninterruptible power supply.
