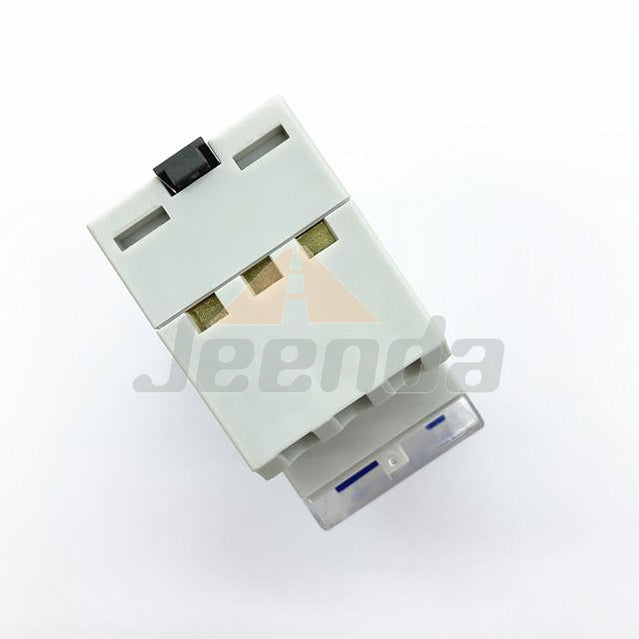

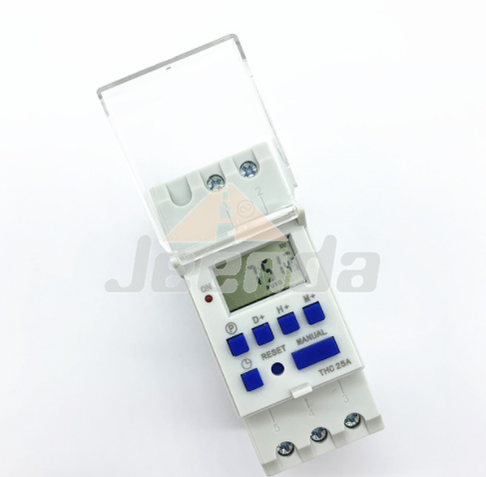

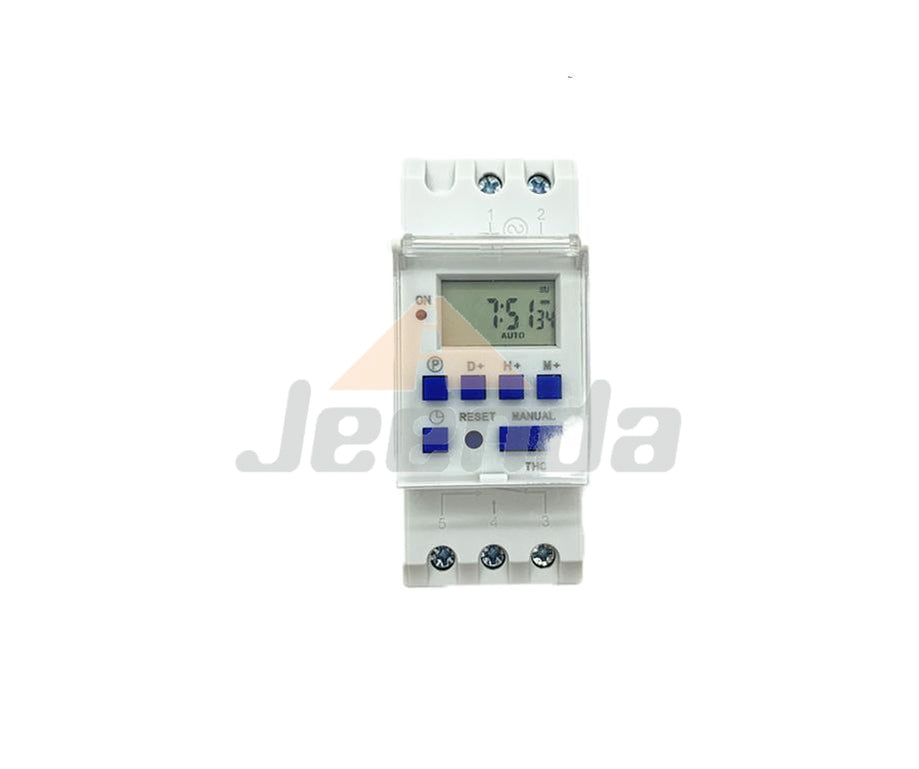

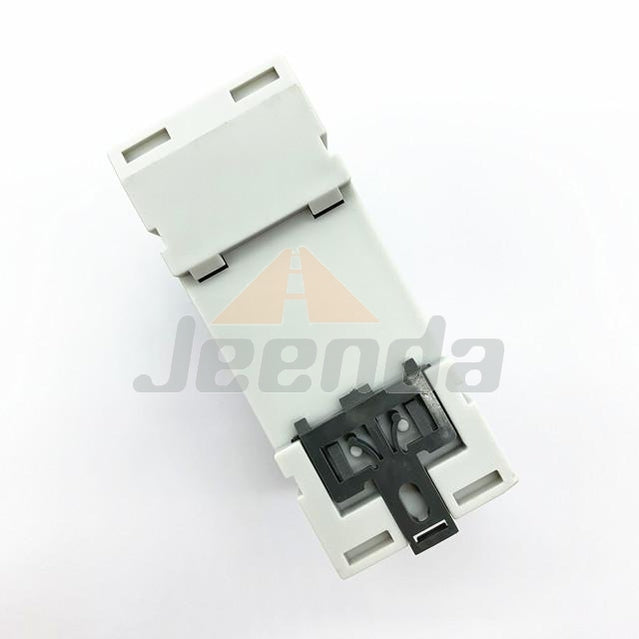

NBL15A-25A 110V 16A Microcomputer Timer Switch

Part Number: NBL15A-25A

Features:

• Rated Voltage: 110V AC; Contact Capacity: 16A
• Full Time Range: 1Min-168Hours; Programmable: 17times/week or day
• Internal battery: 1.2V/40mA (rechargeable batteries)
• Power failure memory: 60days; Operate Temperature: -20 to +55℃
• Net weight: 120g

Technical data:

• Operation voltage AC230V,DC12V 24V
• Frequency 50/60Hz
• Model THC-1516 THC-1520 THC-1530
• AC switching capacity resistive load 16A 20A 30A
• inductive load 8A 10A 15A
• Accuracy ±1s/day at 20 ℃
• Power Reserve 60 days
• Power Consumption ≤7.5VA
• Switching Contact 1 Changeover switch
• Min Interval time 1 Min
• No.of program 17 groups
• Installation Type Din Rail Mounting
• Ambient Temperature -20 ~ +55℃

The product can automatically switch on and ff the pwoer supply of various power equipment according to the time set by the user.Control objuects can be stret lghts,light boxes,neon lights,production equipment,agricultural cultivation,warehouses,ventilation,dehumidification,automatic preheating,radio and television equiment,such as the ideal control products.Built in 1.2V/4mA rechargeable battery,high precision,industrial chip,strong anti-interference.
