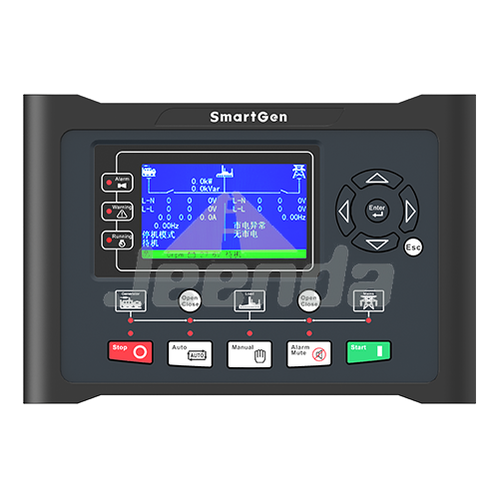

SmartGen HGM9520 Generator Controller
SmartGen HGM9520 Generator Controller
通常価格
$1,289.00 USD
通常価格
$1,289.00 USD
セール価格
$1,289.00 USD
配送料はチェックアウト時に計算されます。
Technical Specifications:
- Power Supply：DC(8-35)V
- Case Dimensions：266*182*45(mm)
- Panel Cutout：214*160(mm)
- Operating Temp. ：(-25~+70)℃
- With ARM-based 32-bit SCM, high integration of hardware and more reliable;
- 480x272 LCD with backlight, multilingual interface (including English, Chinese or other languages) which can be chosen at the site, making commissioning convenient for factory personnel;
- Improved LCD wear-resistance and scratch resistance due to hard screen acrylic;
- Silicon rubber panel and pushbuttons for better operation in high/low-temperature environment;
- RS485 communication port enables remote control, remote measuring, remote communication via ModBus protocol.
- Equipped with CANBUS port and can communicate with J1939 Genset. Not only can you monitoring frequently-used data (such as water temperature, oil pressure, speed, fuel consumption and so on) of ECU machine, but also control start, stop, raising speed and speed droop via CANBUS port.
- Suitable for 3-phase 4-wire, 3-phase 3-wire, single-phase 2-wire and 2-phase 3-wire systems with voltage 120/240V and frequency 50/60Hz;
- Collects and shows 3-phase voltage, current, power parameter, and frequency of mains/generator.
- Perfect mains split protection: over/under frequency, over/under voltage, ROCOF, and vector shift;
- For generator, the controller has over and under voltage, over and under frequency, loss of phase, phase sequence wrong, over and reverse power, over current protection functions;
- Synchronization parameters：Voltage Difference between the generator and mains，Frequency Difference between the generator and mains，Phase Difference between generator and mains；
- Multiple operation modes in the auto state: AMF (Automatic Mains Failure), Island Mode, Fixed Power, Peak Lopping Mode and Load Takeover Mode;
