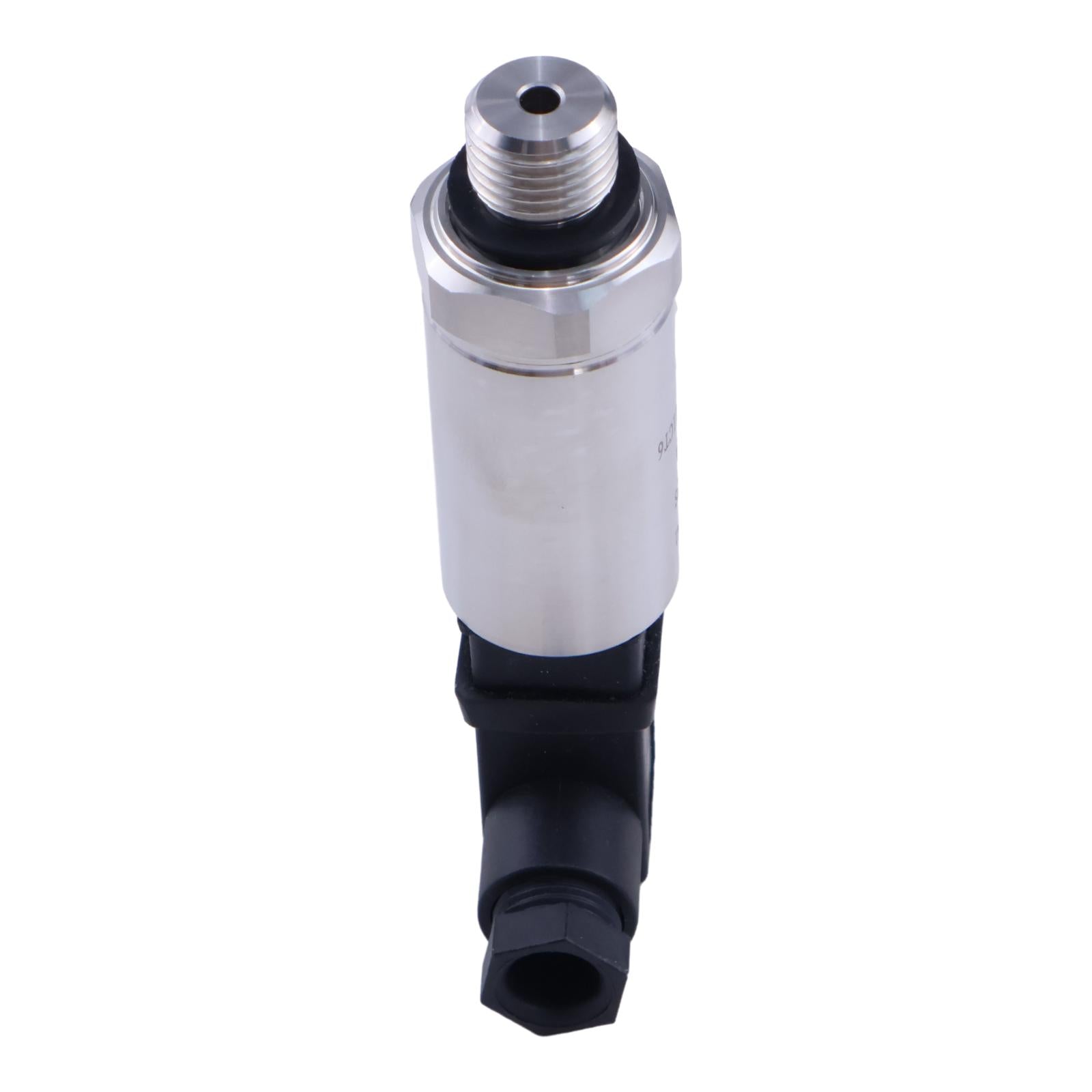

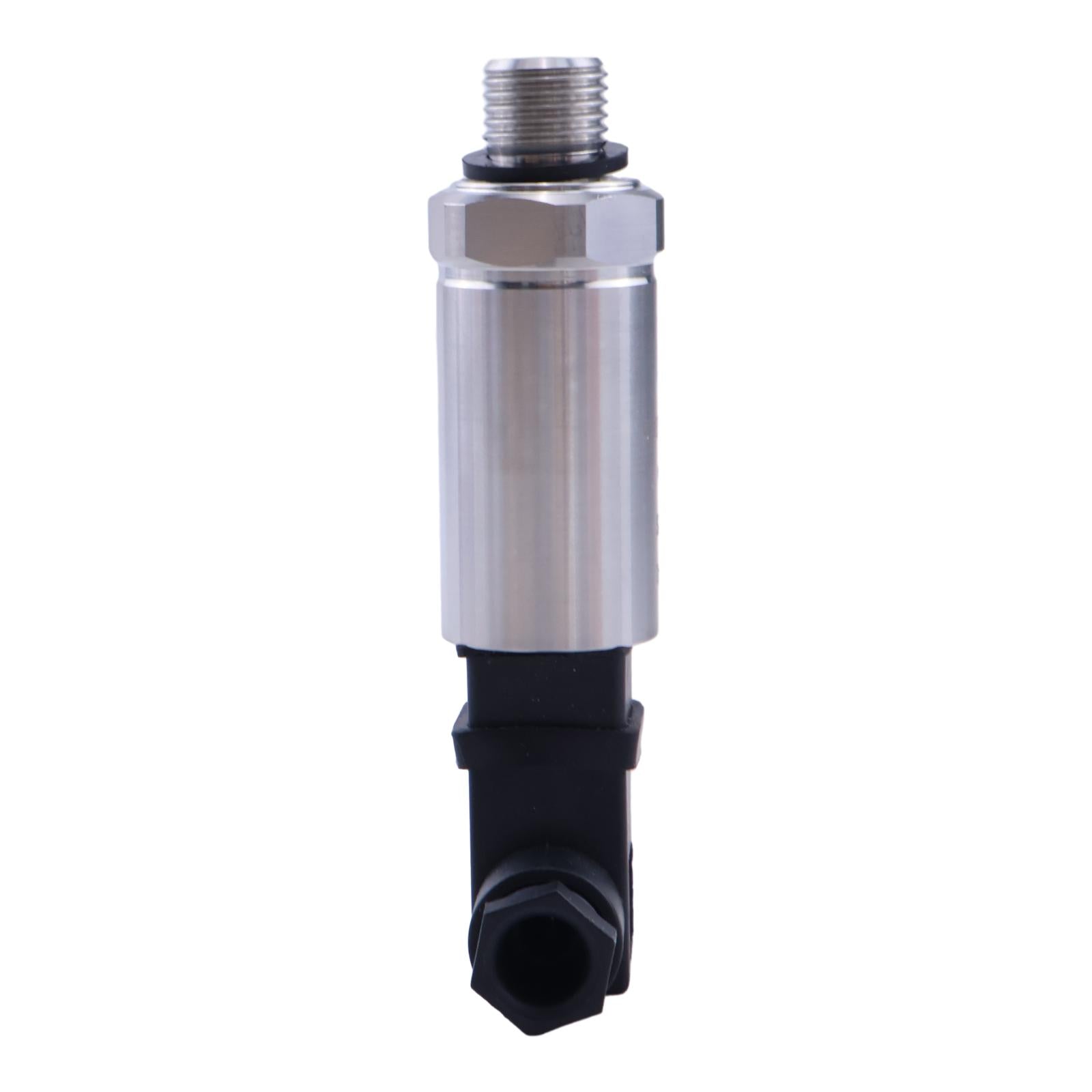

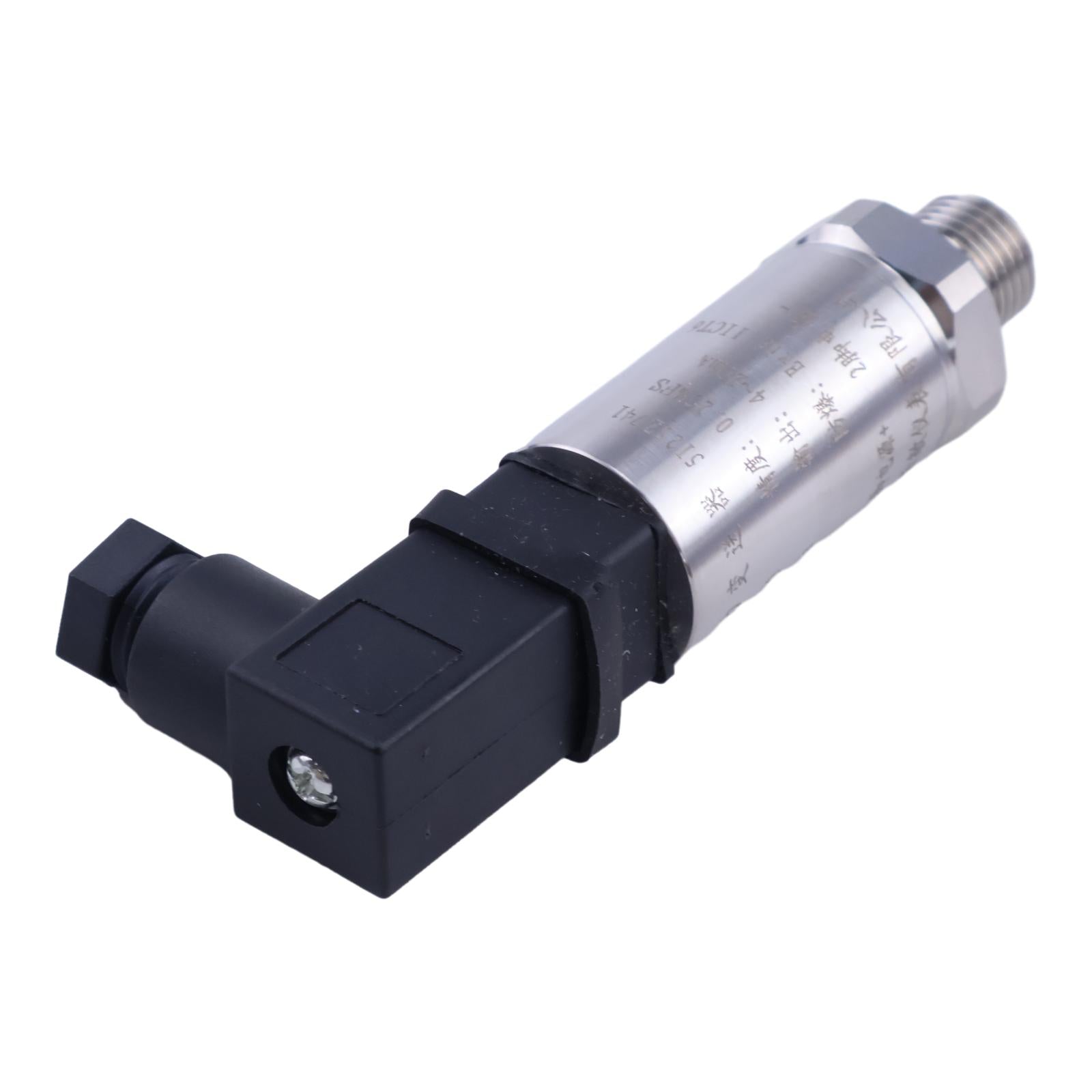

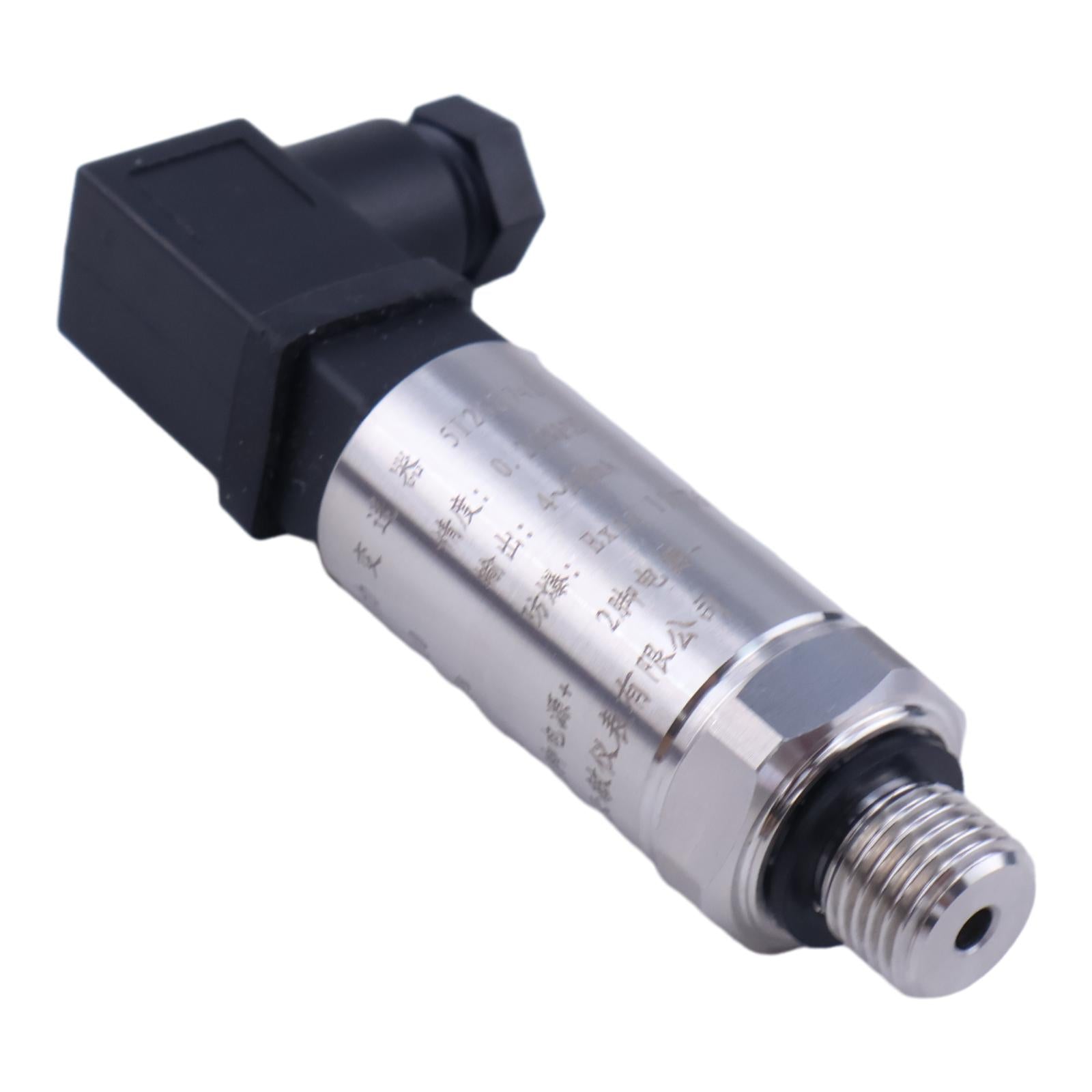

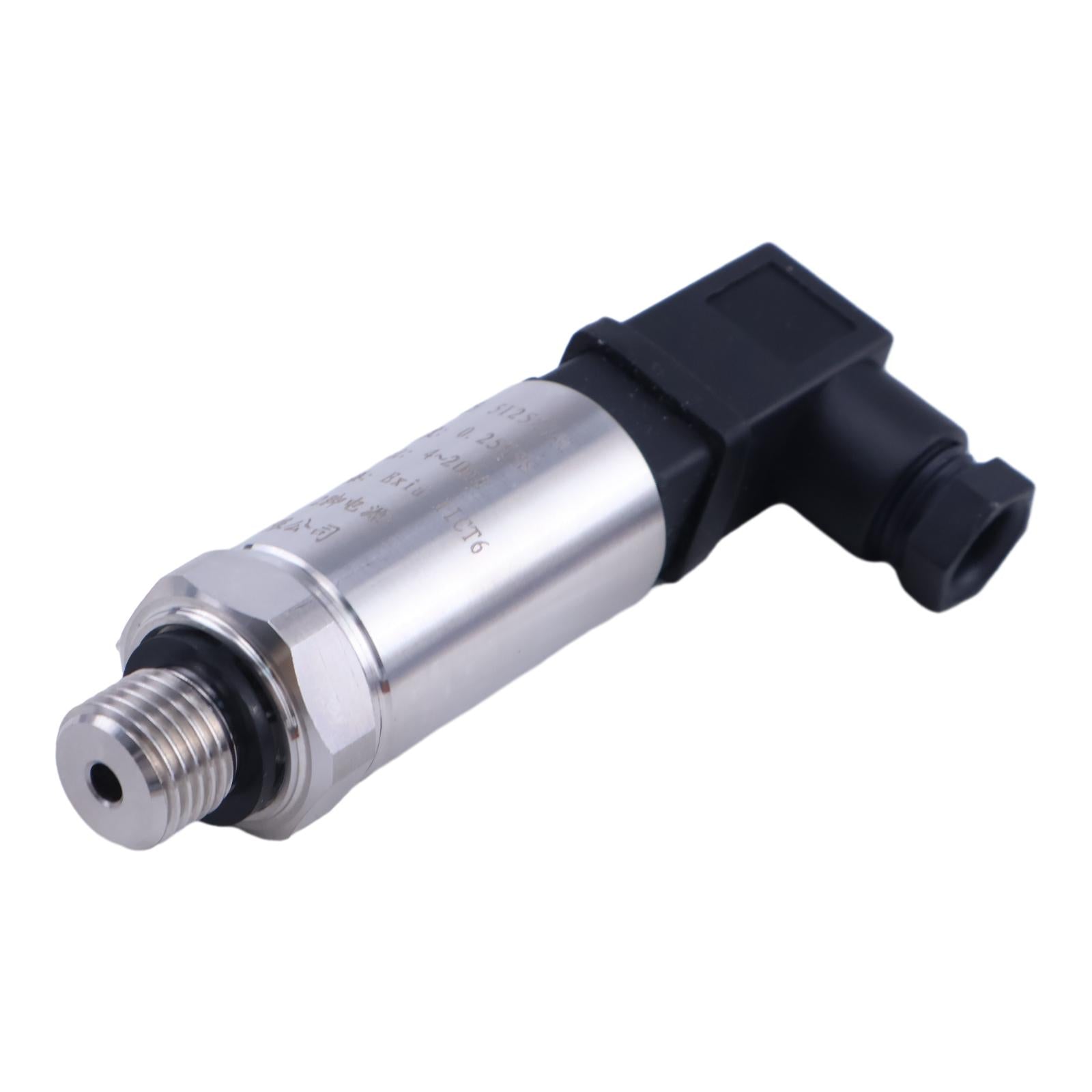

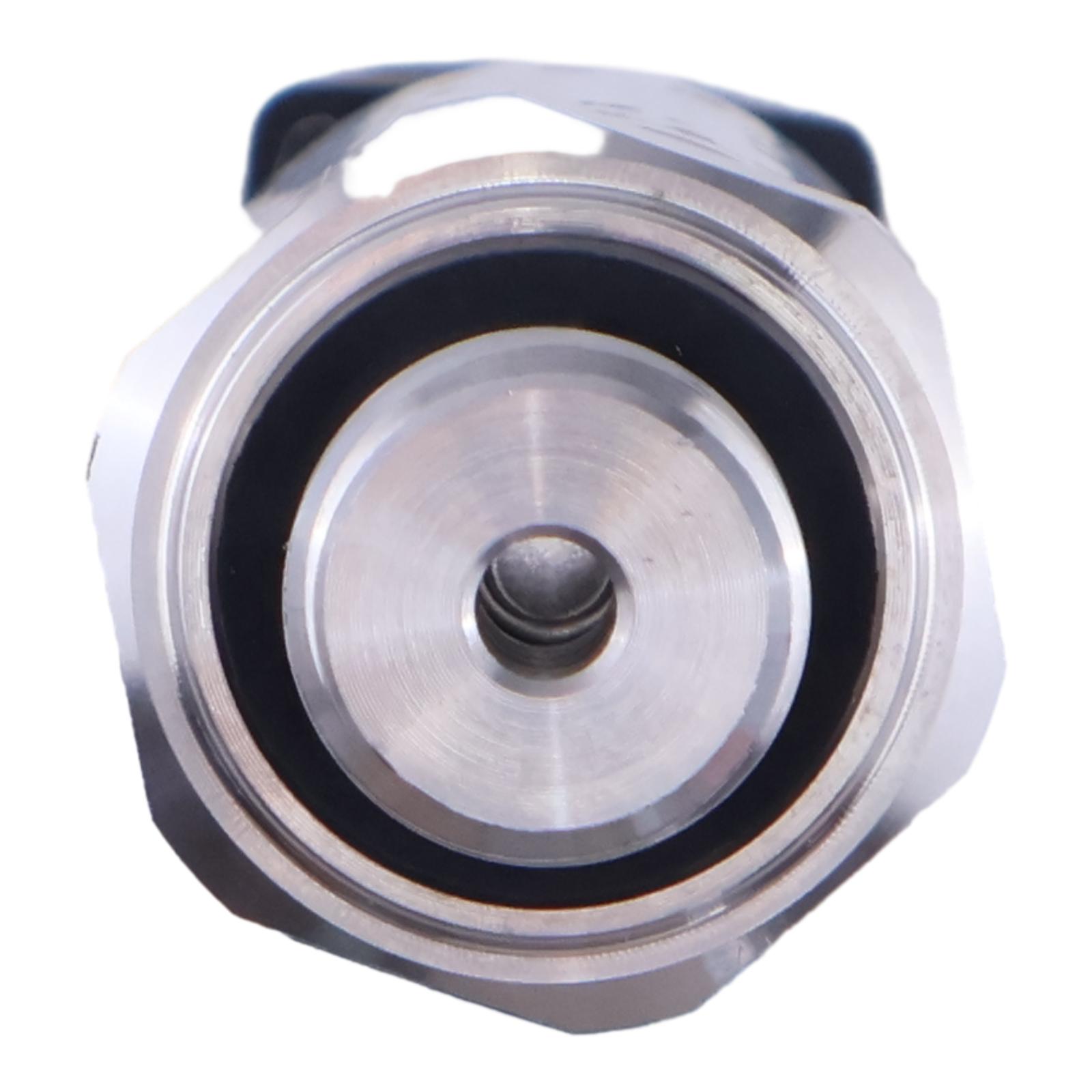

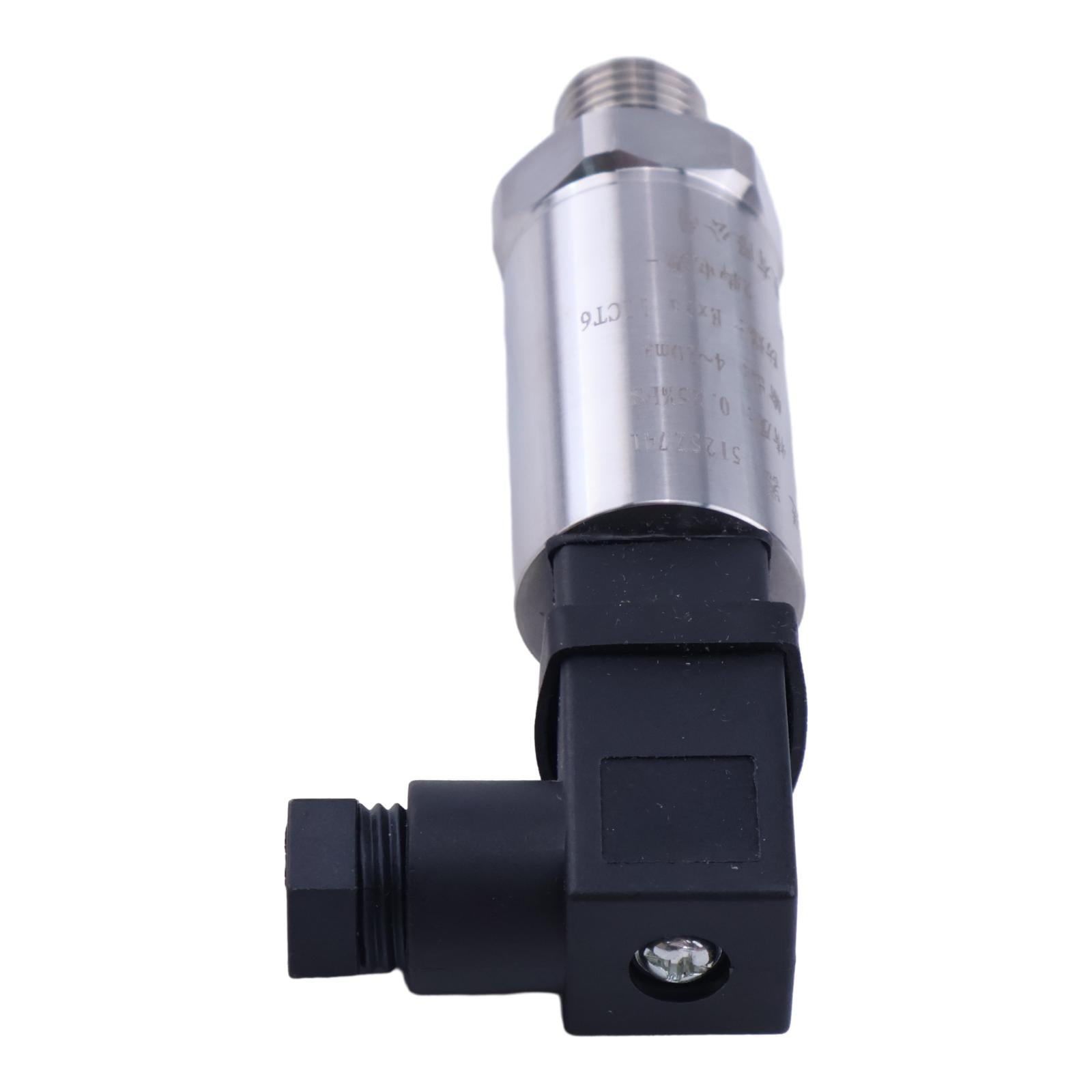

SGPT110 piezoresistive pressure transmitter is based on MEAS original advanced highly stable silicon piezoresistance transmitter installed into a 304 stainless steel enclosure. Compatible with various mediums, stable, reliable and highly accurate, SGPT110 can be widely used for gas and liquid pressure measurement.
CHARACTERISTICS:
Measuring range: (0~1)MPa
Two-wire standard output：4 mA ~20 mA
Wide working temperature range: (-40°C~125°C), with temperature compensation and common-mode rejection functions.
Whole stainless steel structure
O-shape gasket
Standard screw thread pressure measurement method
Pluggable connection, small volume, low power consumption.
