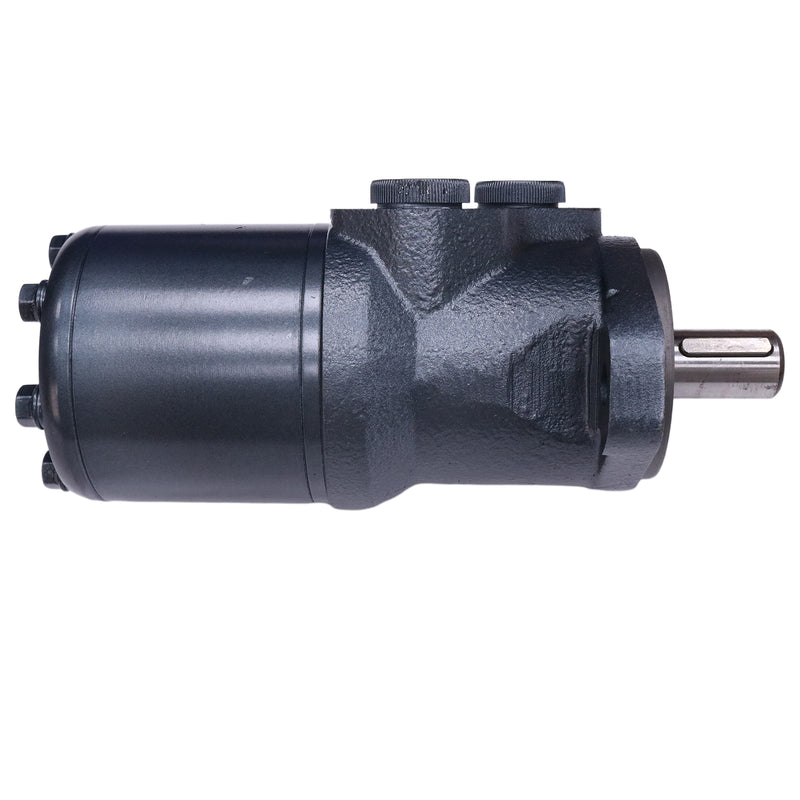

Part Name: Hydraulic Orbital Motor Manufacturing Part Number: OMR x 375 -11185556, 11185556
Specification:
Geometric displacement: 363.5cm³/[22.18in] Max speed cont: 165rpm Max speed int: 205rpm Max torque cont: 340Nm/[3010lbf in] Max torque int: 450Nm/[3980lbf in] Max output power cont: 4.9kW/[6.6hp] Max output power int: 7.0kW/[9.4hp] Max pressure drop cont: 70bar/[1015psi] Max pressure drop int: 100bar/[1450psi] Max oil flow cont: 60L/min Max oil flow int: 75L/min Max starting pressure with unloaded shaft: 5bar/[75psi] Min starting torque at max press drop cont: 290Nm/[2565lbf in] Min starting torque at max press drop int: 415Nm/[3675lbf in] Max inlet pressure cont: 175bar/[2540psi] Max inlet pressure int: 200bar/[2900psi] Max return pressure with drain line cont: 175bar/[2540psi] Max return pressure with drain line int: 200bar/[2900psi]
