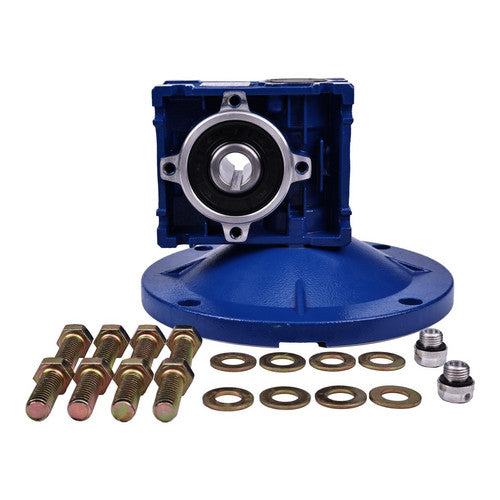

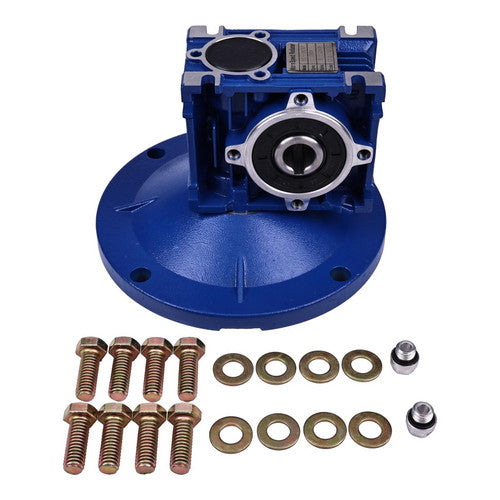

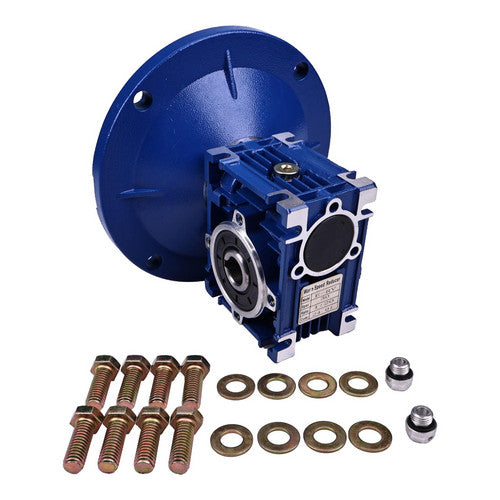

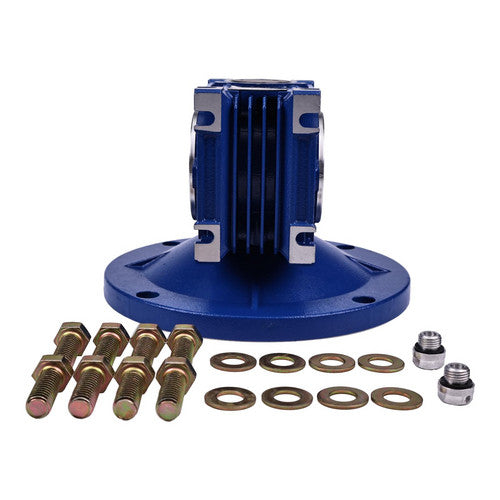

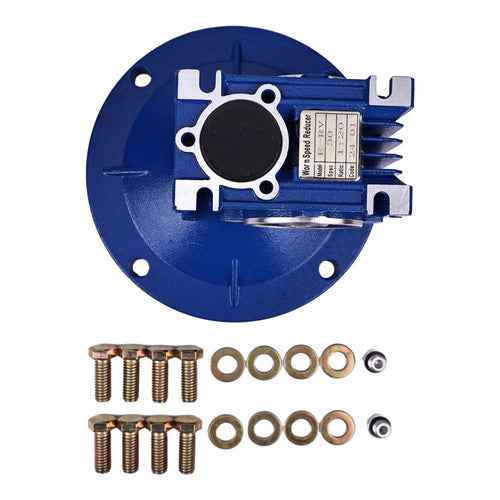

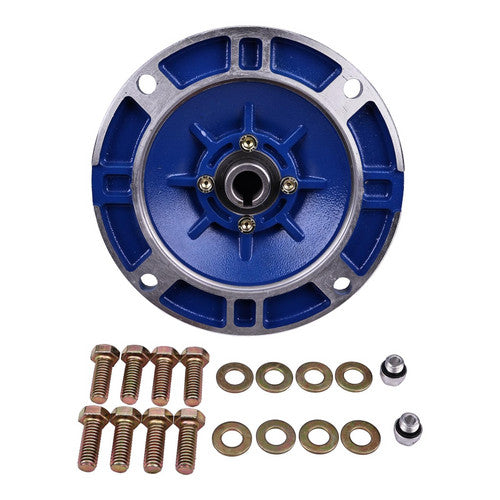

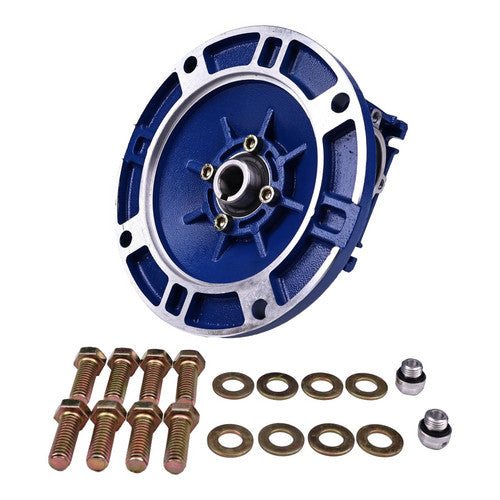

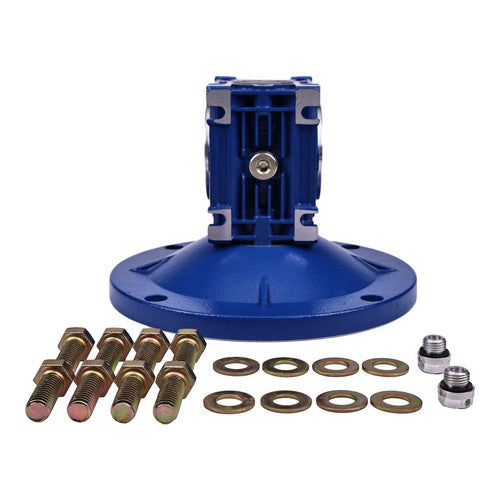

20:1 56C Worm Gear Speed Reducer MRV030

20:1 56C Worm Gear Speed Reducer MRV030

$124.00 USD
$124.00 USD
할인 품절
배송료는 결제 시 계산됩니다.
Part Name: Worm Gear Box
Manufacturing Part Number: MRV030
Specification:
Ratio: 20:1
Input Shaft Diameter: 5/8
Output Shaft Diameter: 5/8
Mounting Flange: 56C
Rated HP: 0.3
This 20:1 ratio speed reducer is rated for 0.30 HP input at 1750 RPM on a hollow 5/8" diameter x 1-7/8" long keyed shaft and 56C mounting flange.
Output is 159 lb/in on a hollow 5/8" diameter x 2-1/2" long keyed shaft
