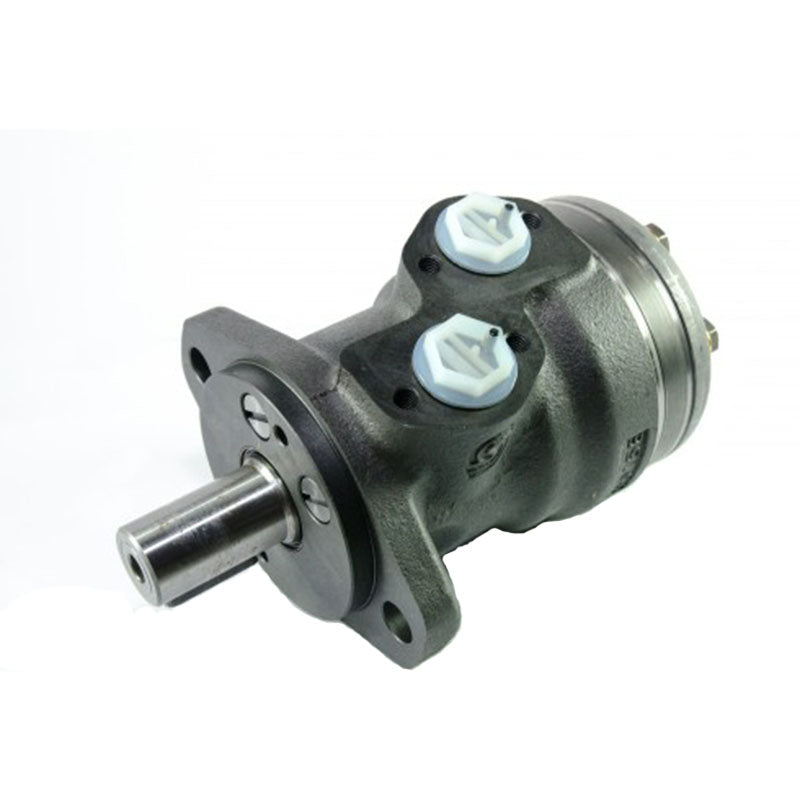

32mm 1/2 BSP Hydraulic Orbital Motor OMR160-151-0244
32mm 1/2 BSP Hydraulic Orbital Motor OMR160-151-0244
정가
$269.00 USD
정가
할인가
$269.00 USD
배송료는 결제 시 계산됩니다.
Part Name: Hydraulic Orbital Motor
Manufacturing Part Number: OMR160-151-0244, 1510244
Manufacturing Part Number: OMR160-151-0244, 1510244
Specification:
Type: OMR
Size: 160
Geometric displacement: 159.6cm³/[9.77in]
Max speed cont: 375rpm
Max speed int: 470 rpm
Max torque cont: 380Nm/[3360lbf in]
Max torque int: 430Nm/[3810lbf in]
Max output power cont: 12.5kW/[16.8hp]
Max output power int: 14.0kW/[18.8hp]
Max pressure drop cont: 175bar/[2540psi]
Max pressure drop int: 200bar/[2900psi]
Max pressure drop peak: 225bar[3260psi]
Max oil flow cont: 60L/min
Max oil flow int: 75L/min
Max starting pressure with unloaded shaft: 7bar/[100psi]
Min starting torque at max press drop cont: 320Nm/[2830lbf in]
Min starting torque at max press drop int: 370Nm/[3280lbf in]
Max inlet pressure cont: 175bar/[2540psi]
Max inlet pressure int: 200bar/[2900psi]
Max inlet pressure peak: 225bar/[3260psi]
Max return pressure with drain line cont: 175bar/[2540psi]
Max return pressure with drain line int: 200bar/[2900psi]
Max return pressure with drain line peak: 225bar/[3260psi]
Max speed cont: 375rpm
Max speed int: 470 rpm
Max torque cont: 380Nm/[3360lbf in]
Max torque int: 430Nm/[3810lbf in]
Max output power cont: 12.5kW/[16.8hp]
Max output power int: 14.0kW/[18.8hp]
Max pressure drop cont: 175bar/[2540psi]
Max pressure drop int: 200bar/[2900psi]
Max pressure drop peak: 225bar[3260psi]
Max oil flow cont: 60L/min
Max oil flow int: 75L/min
Max starting pressure with unloaded shaft: 7bar/[100psi]
Min starting torque at max press drop cont: 320Nm/[2830lbf in]
Min starting torque at max press drop int: 370Nm/[3280lbf in]
Max inlet pressure cont: 175bar/[2540psi]
Max inlet pressure int: 200bar/[2900psi]
Max inlet pressure peak: 225bar/[3260psi]
Max return pressure with drain line cont: 175bar/[2540psi]
Max return pressure with drain line int: 200bar/[2900psi]
Max return pressure with drain line peak: 225bar/[3260psi]
