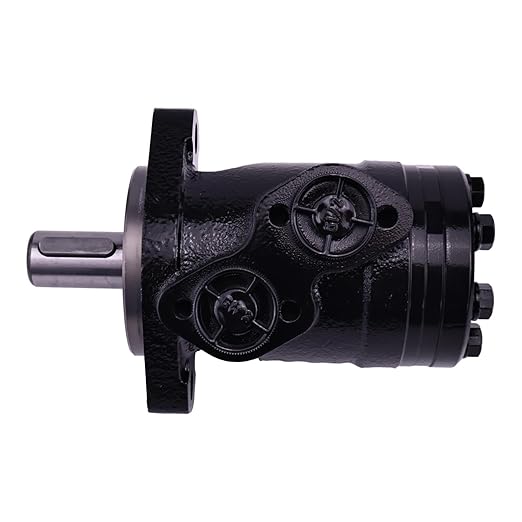

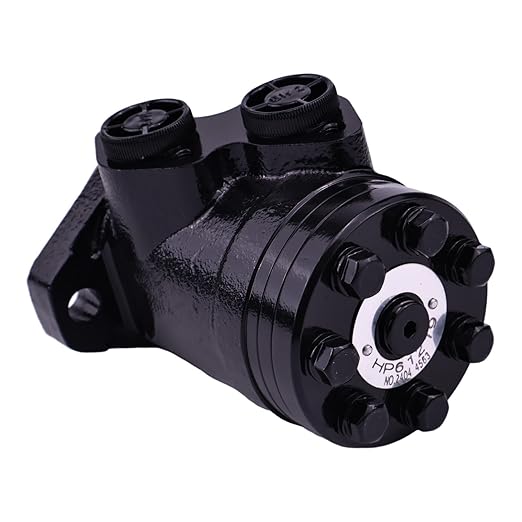

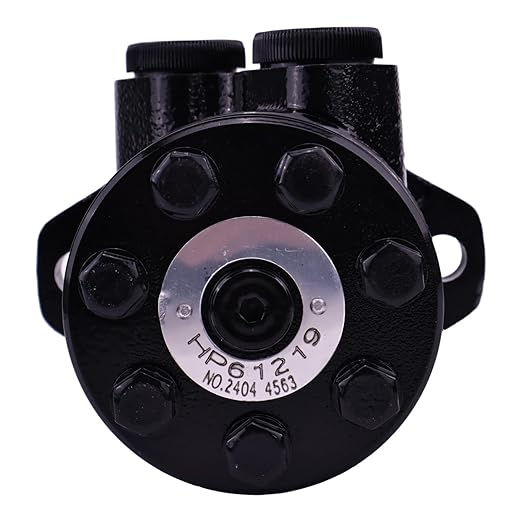

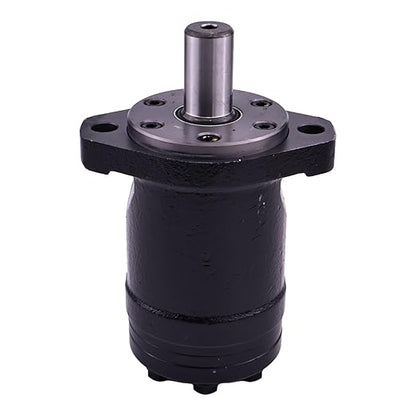

25mm 1/2 BSP Hydraulic Orbital Motor OMP X 25-11185769 11185769

OMP X 25 Low Speed High Torque motor, Geometric Displacement 25.0cm³

Part Number: OMP X 25 - 11185769 11185769 BMP-25-2ADN1

Main Specification:
Motor size: 25
Geometric displacement: 25[1.53]
Max speed cont: 1600
Max speed int: 1800
Max torque cont: 40[355]
Max torque int: 50[445]
Max output power cont: 5,4[7.2]
Max output power int: 6,7[9.0]
Max pressure drop cont: 115[1670]
Max pressure drop int: 160[2320]
Max oil flow cont: 40[10.6]
Max oil flow int: 45[11.9]
Max starting pressure with unloaded shaft: 10[145]
Min starting torque at max press drop cont: 35[310]
Min starting torque at max press drop int: 50[440]
Max inlet pressure cont: 200[2900]
Max inlet pressure int: 225[3260]
