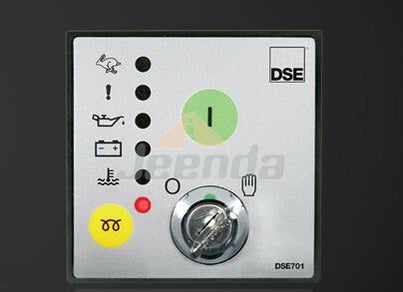

Deep Sea DSE701 Manual Auto Start Control Module

The model 701 is an Engine control module designed to control the engine via a key switch and push buttons on the front panel. The module is used to start and stop the engine and indicates fault conditions, automatically shutting down the engine and indicating the cause of the failure by LED, giving true, first up fault annunciation.
Additionally, the Autostart versions (701AS) of the controller will respond to a remote switched input to begin the start sequence.
Power Supply: DC 8 to 35 V Continuous & Cranking Dropouts: Able to survive voltage dips during cranking. Without the need for internal batteries.
Alternator Input Range :15-305V AC RMS (+20%) & Alternator Input Frequency: 50 - 60 Hz at rated engine speed. (Minimum 75V AC)
Overspeed: nominal frequency +14% (+24% Overshoot) & Start Output: Solid State 1.2A negative grounding terminal & Run Output: Solid State 1.2A negative grounding terminal & Pre-heat Output: Solid State1.2A negative grounding terminal & Operating Temperature Range: -30 to +70C
The model 701 is an Engine control module designed to control the engine via a key switch and push buttons on the front panel. The module is used to start and stop the engine and indicates fault conditions, automatically shutting down the engine and indicating the cause of the failure by LED, giving true, first up fault annunciation.

Additionally, the Autostart versions(701as) of the controller will respond to a remote switched input to begin the start sequence.

Model 702 has integral tamperproof LCD hours run counter to indicate total engine run time.

Style: 701MS (Manual) 701AS (Auto)

Power Supply: 8 to 35 Vdc Continuous

Cranking Dropouts: Able to survive voltage dips during cranking.Without the need for internal batteries.

Alternator Input Range :15 - 305 V AC RMS (+20%)

Alternator Input Frequency: 50 - 60 Hz at rated engine speed. (Minimum 75V AC)

Overspeed: nominal frequency +14% (+24% Overshoot)

Start Output: Solid State 1.2A negative grounding terminal

Run Output: Solid State 1.2A negative grounding terminal

Pre-heat Output: Solid State1.2A negative grounding terminal

Operating Temperature Range: -30 to +70C
