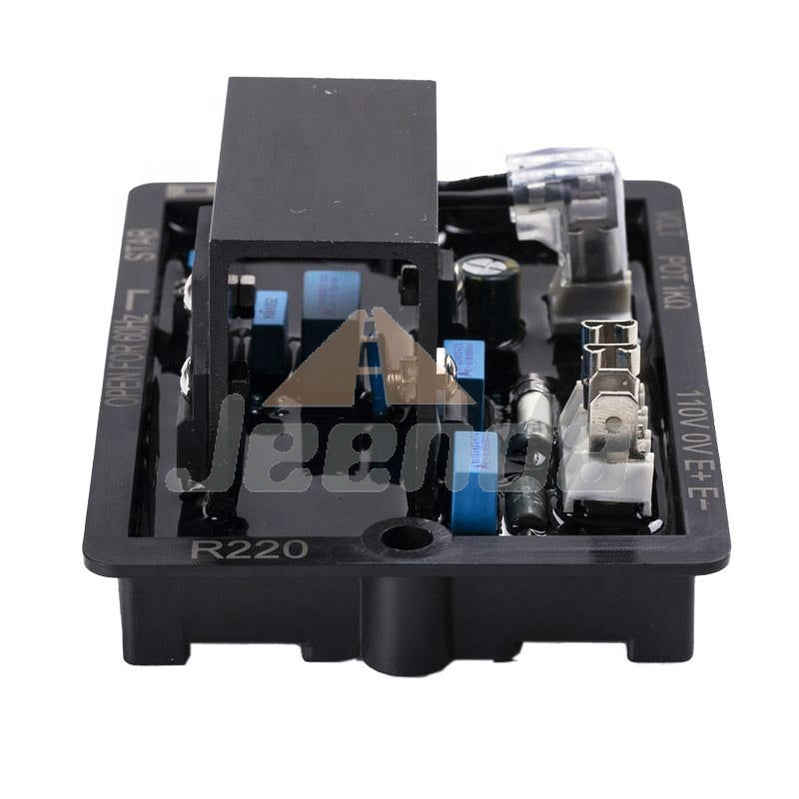

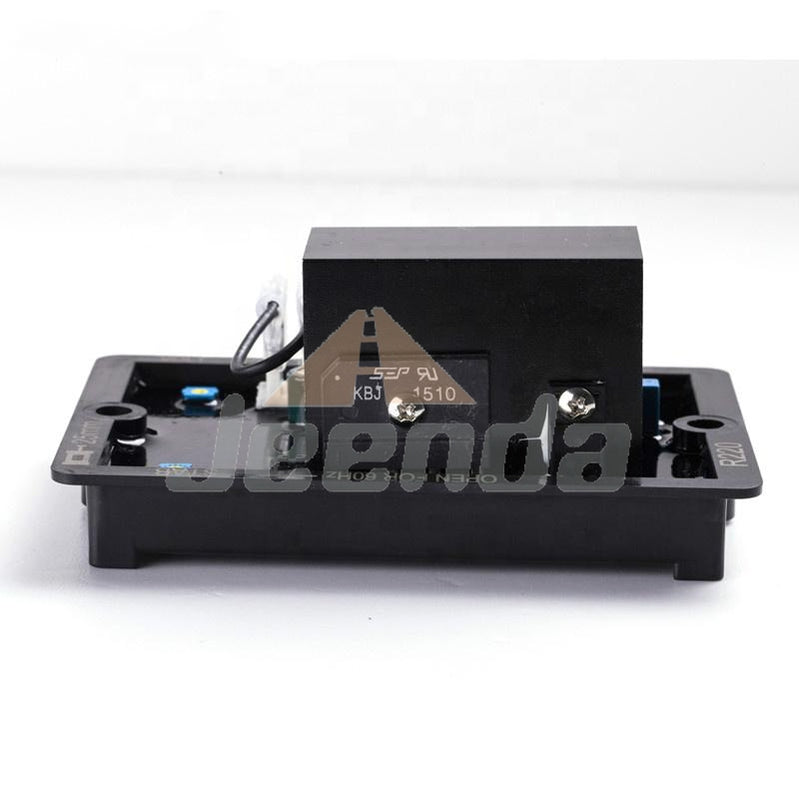

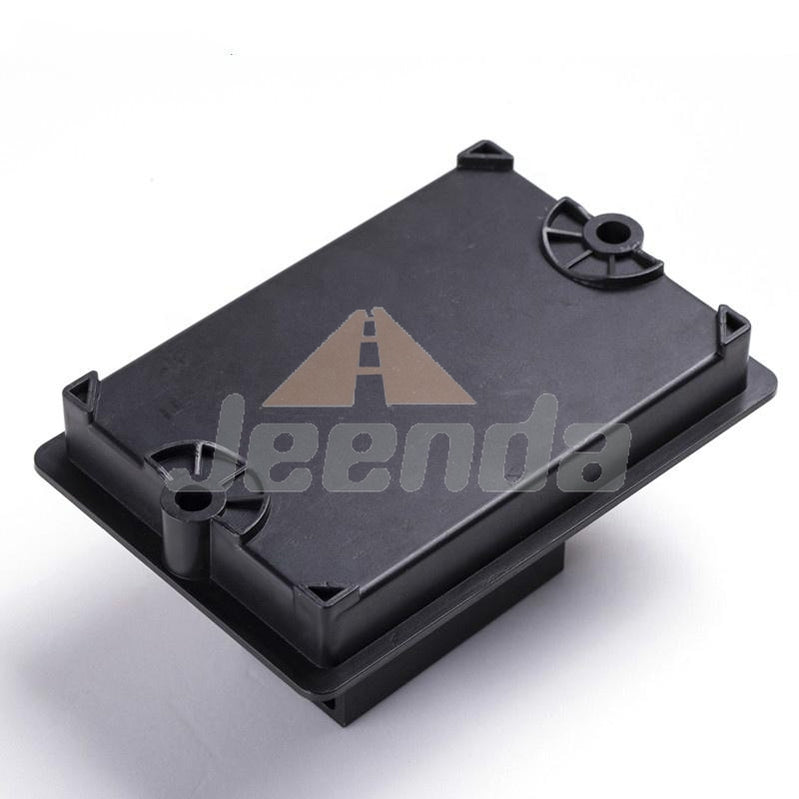

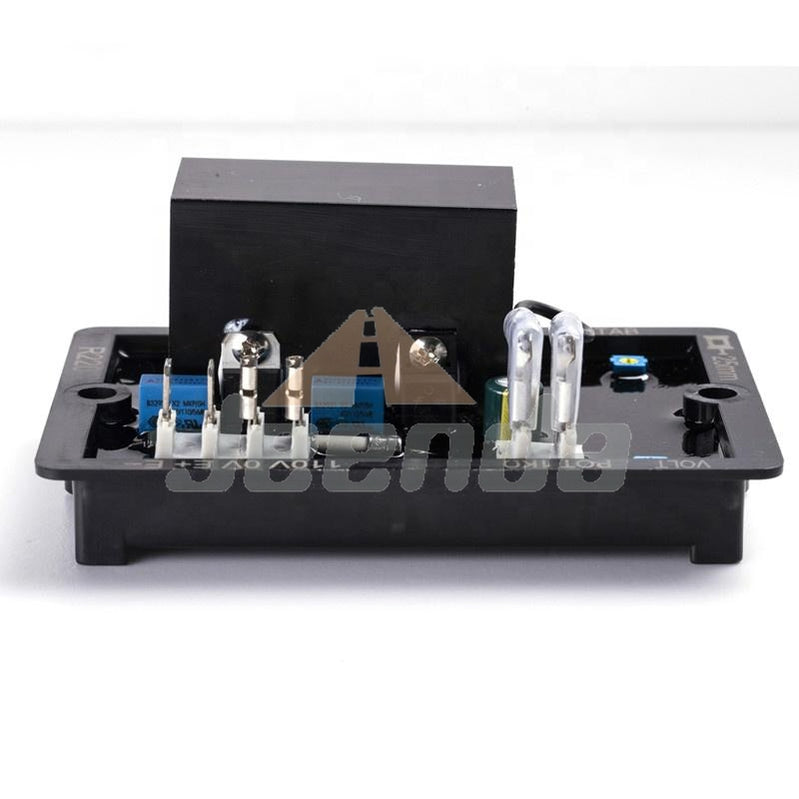

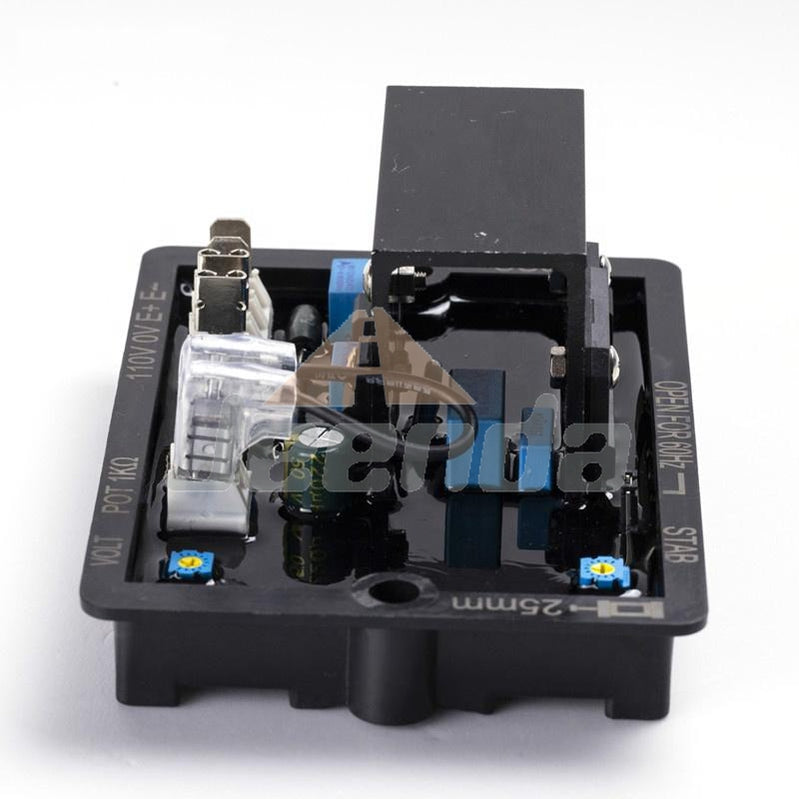

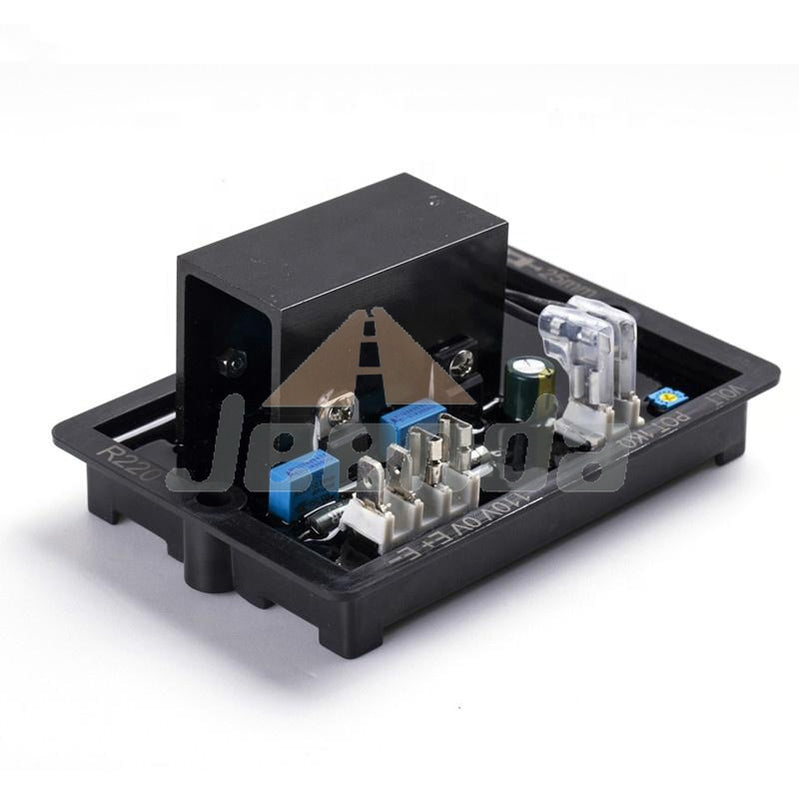

Free Shipping Automatic Voltage Regulator AVR R220 R220RVB1 for Leroy Somer AEM110RE028 Brushless Alternator

Details:

• Product Number:AVR R220
• Operation Voltage:190/240VAC
• Output Voltage:12V / 24V
• Temperature:12 mouths
• SAME EXACT AVR AS:
  • Leroy Somer Voltage Regulator AEM110RE028 AVR
  • FG Wilson Voltage Regulator 10000-47219 AVR
  • Olympian Voltage Regulator 10000-47219 AVR

R220 AVR is used in  LSA40 & LSA42.3 series alternators. The R220 AVR is a simple design, inexpensive and a perfect solution for small generators especially for standby or prime continuous applications.

Standard : for LSA 40 alternators.

Adapted to the SHUNT and AREP excitation system

Main characteristics

Voltage regulation +/- 0.5% at steady state and constant speed.

Response time 500 ms

Nominal excitation current : 3A

Maximum excitation current 7A for 10 sec.

Features:

Storage: -55°C ; +85°C

Operation : -40°C ; +65°C

Voltage regulation: ± 0.5%.

Voltage supply/sensing range 85 to 139 V (50/60 Hz)

Rapid response time (500 ms) for a transient voltage variation amplitude of ±  20%

Voltage setting P1

Stability setting P2

Power supply protected by 8 A fuse, slowblow action (tolerates 10 A for 10 s)

The fuse is impregnated in the resin, therefore it can not be replaced.

Frequency: 50 Hz with ST3 jumper - 60 Hz without ST3 jumper.

The size of the screwdriver tip used to adjust the potentiometer is 2.5 mm

Description:

1.R 220 is an analog A.V.R. with numerical regulation function.

2.It is designed for small alternators with a SHUNT excitation.

3.It controls the excitation current in order to maintain the output voltage of the alternator.

4.It is performant in terms of voltage regulation,simple to set , to use and is reliable.
