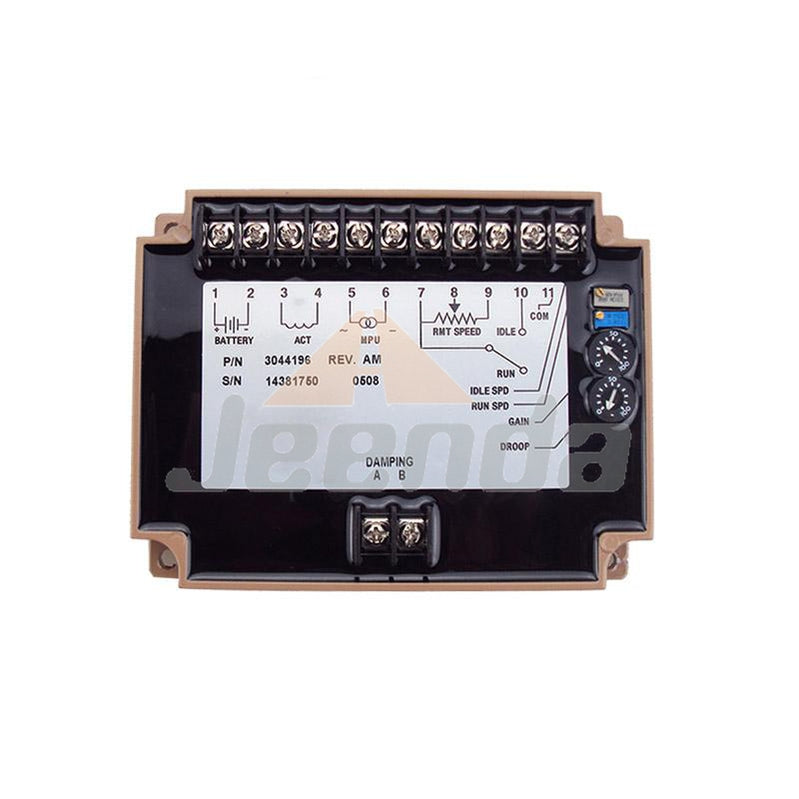

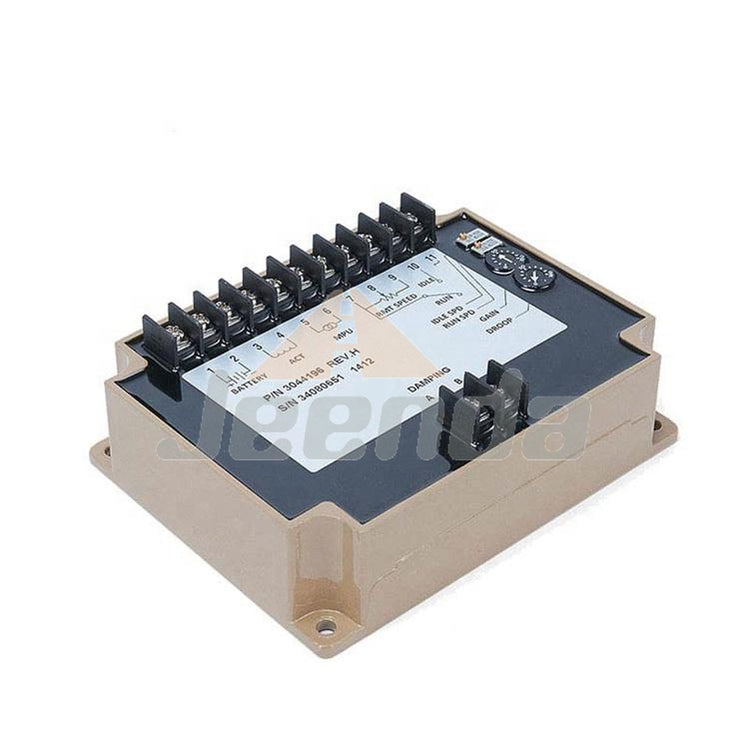

Free Shipping Speed Control Unit Actuator 3044196 EFC3044196 for Cummins 12-24V Generator KTA19 QSK19 K19

Part Number:EFC3044196 3044196
Application:

• Cummins 12-24V Generator
• KTA19 QSK19 K19

SPECIFICATIONS & PERFORMANCE for speed control unit 3044196:

• Operating Voltage: 12 or 24 volts ±20%
• Steady State Speed Band: ±0.25%
• Ambient Operating Temperature: -40℃ to +85℃
• Temperature Stability: Better than ±0.5% over temperatures of -40℃ to +125℃
• Mechanical Vibration: Withstands the following vibration without failure or degraded , performance: 0.06 inch double amplitude at 5 to 18 Hz; 1 G at 18 to 30 Hz
• Connections: Terminal strip
• Enclosure: Die cast aluminum
• Magnetic Pickup Frequency Range: 2500 - 5000 Hz Output Signal: PWM current to 5A at max.
• Actuator Compatibility: EFC3408324, DYNA2000, DYNA2500
