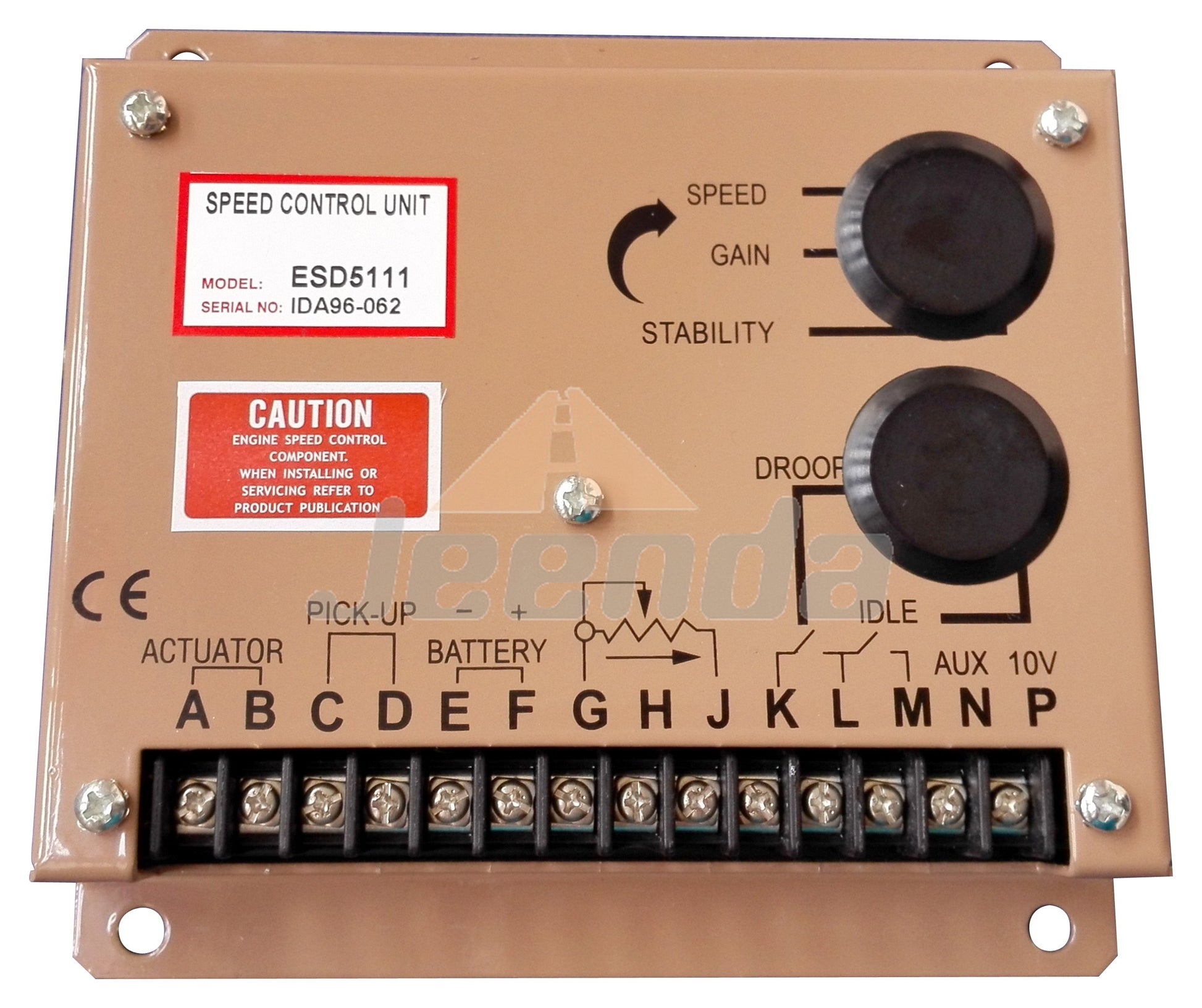

Free Shipping Speed Controller ESD5111 for GAC 5000 Series
Free Shipping Speed Controller ESD5111 for GAC 5000 Series
정가
$79.00 USD
정가
$99.00 USD
할인가
$79.00 USD
배송료는 결제 시 계산됩니다.
- Isochronous Operation/Steady State Stability ±0.25% or better
- Speed Range/Governor 1K-7.5K Hz continuous
- Speed Drift with Temperature± 1% Maximun
- Idle Adjust CW Min. 1200Hz. below set speed
- Idle Adjust CCW Min. 4100Hz. below set speed
- Droop Range 1-5% regulation
- Droop Adj. Max. (K-L Jumpered) Droop Adj. Max. (K-L Jumpered)
- Droop Adj. Min. (K-L Jumpered) 15Hz., ± 6Hz. per 1.0 A change
- Speed Trim Range ±200Hz.
- Remote Variable Speed Range 500 -7.5Hz. or any part thereof
- J: 100Hz., ±15Hz/Volt @ 5.0 K Impedance
- L: 735Hz., ± 60Hz/Volt @ 65 K Impedance
- N: 148Hz., ± 10Hz/Volt @ 1Meg. Impedance
- P: 10V DC Supply @ 20ma Max.
- Speed Switch Adjustment Range 1000-10000Hz.
- Ambient Operating Temperature Range -40℃ to +85℃
- Relative Humidity up to 95%
- Storage Temperature -55℃ ~ 90℃
- Shock 20-100HZ 500mm/Sec.
- Supply 12 or 24V DC Battery Systems(Transient and Reverse Voltage Protected)
- Polarity Negative Ground(Case Isolated)
- Power Consumption 50mA continuous plus actuator current
- Maximum Actuator Current at 25 10Amps continuous
- Speed Sensor Signal 0.5-120 Volts RMS
Package list:
1 * Engine Speed Controller
Note:
The actual product color may deviate from the photo due to light.
There may be a slight deviation in the measurement of the product.
