Original GAC ACB275H ACE275H Integrated Pump Mounted Actuators 275 Series 24 VDC
Notice: Original Products Don't Support the Unreasonable Return

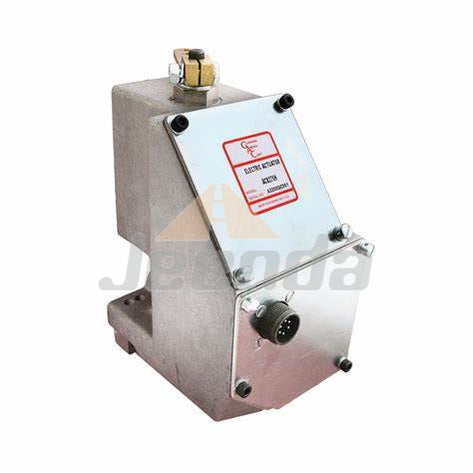

GAC Governors America Corp 275 Series ACB275H Multi-Voltage Actuator
(Multi VDC / MIL Connector)
The 275 Series Electric Actuator is a second-generation design more powerful than its predecessor. It is for Bosch-Style ¡ãP¡À 3000-7000 fuel injected Pumps. Coupling the 275 Series with a fuel pump results in a high-performance fuel control system without external linkages or brackets. Two isolated chambers eliminate the possibility of any magnetic particles collecting and jamming the actuator. As a result, the 275 Series typically outlasts the life of a diesel engine and is maintenance-free. Camshaft bearing retainer kits, position feedback transducer, and heavy-duty bearing retention options are available.
Features:
Optimum Performance for In-line Pumps
Includes Manual Rack Return Mechanism
Stop Lever
Injection Pumps in Place of a Mechanical Governor
Control Up to 12 Cylinder Pumps
Adjustable Maximum Fuel Limit
Weight:10KG
