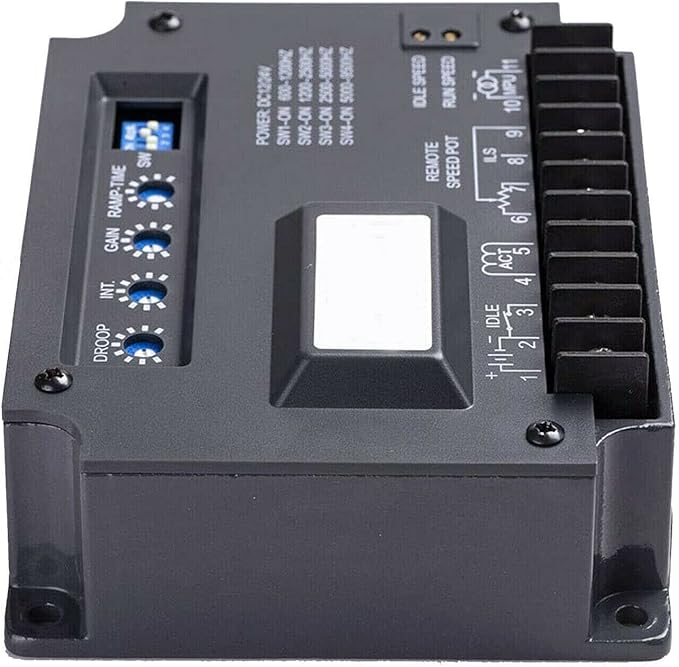

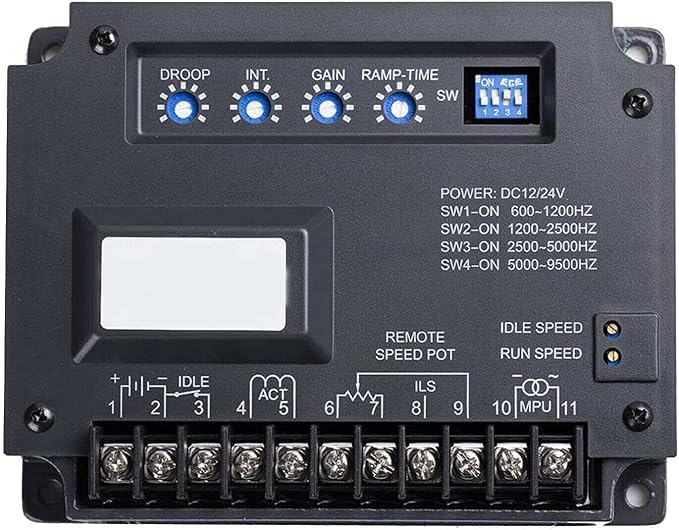

Governor Control Speed Controller ESC2301-A ESC2301 Compatible with Cummins PT Pump Woodward Barber Colman Onan

Part Name: Governor Control/ Speed Controller

Part Number: ESC2301-A ESC2301

Compatible with Cummins PT Pump Woodward Barber Colman Onan

The actuator resistance range is 1.6 ohm to 48 ohms on 24 volt operation, and 0.8 ohm to 24 ohms on 12 volt operation.

Replacement for:
DYN1 10752-000-0-12 / 24 250 to 1200 Hz ( starts at 600 Hz)
DYN1 10753-000-0-12 / 24 1200 to 2500 Hz
DYN1 10754-000-0-12 / 24 2500 to 5000 Hz
DYN1 10756-000-0-12 / 24 5000 to 9500 Hz
YN1 10752-001-0-12 / 24 250 to 1200 Hz ( starts at 600 Hz)
DYN1 10753-001-0-12 / 24 1200 to 2500 Hz
DYN1 10754-001-0-12 / 24 2500 to 5000 Hz
DYN1 10756-001-0-12 / 24 5000 to 9500 Hz
DYN1 10684-000-0-12 / 24
DYN1 10693-001-0-12 / 24 1200 to 2500 Hz
DYN1 10693-002-0-12 / 24 1200 to 2500 Hz
DYN1 10694-001-0-12 / 24 2500 to 5000 Hz
DYN1 10694-002-0-12 / 24 2500 to 5000 Hz
DYN1 10695-000-0-12 / 24 2500 to 5000 Hz
DYNC 50000-000-0-12 or DYNC 50000-000-0-24
