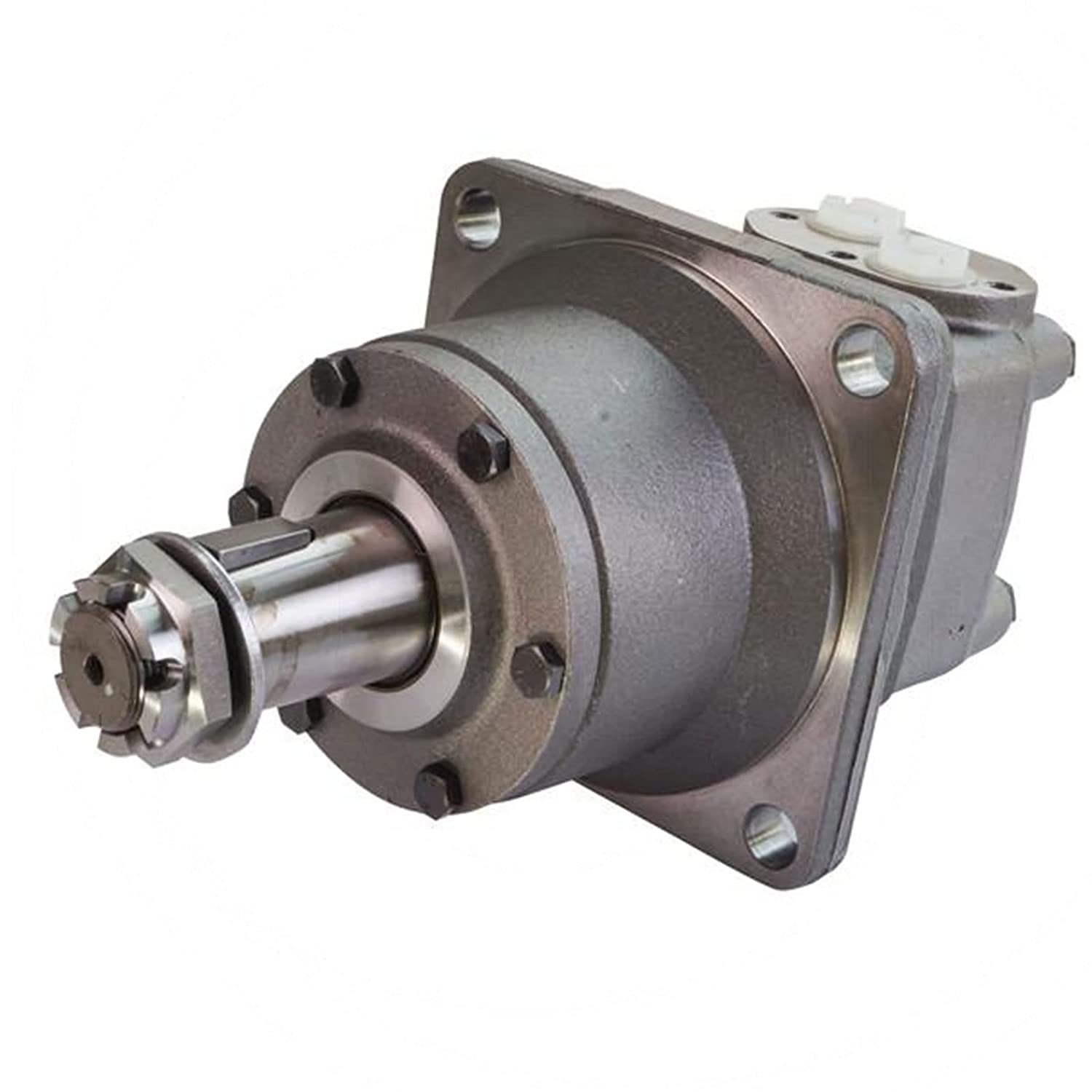

1 1/16 - 12 UN Hydraulic Motor 151B2083 OMTW315-151B2083 151B-2083

Part Number: 151B2083, OMTW315-151B2083, 151B-2083

Motorseries: O-Series

Basic Motor: OMTW

Displacement: 315

Design Number: 2

Mounting Flange: Wheel - PD 160 mm ; BC 200 mm

Mounting Thread Dimension: None

Shaft Style: Tapered - Cone 1:8

Shaft Size: 1 3/4 inch tap

Shaft Key: 7/16 x 7/16 x 1 1/4 inch

Port Size: Side port

Port Dimension: 1 1/16 - 12 UN

Drain Port Style: Standard

Drain port Dimension: 9/16 - 18 UNF

Brake Release Port: None

Brake Release Port Dimension: None

Front bearing: Tapered roller bearing

Rear bearing: Tapered roller bearing
