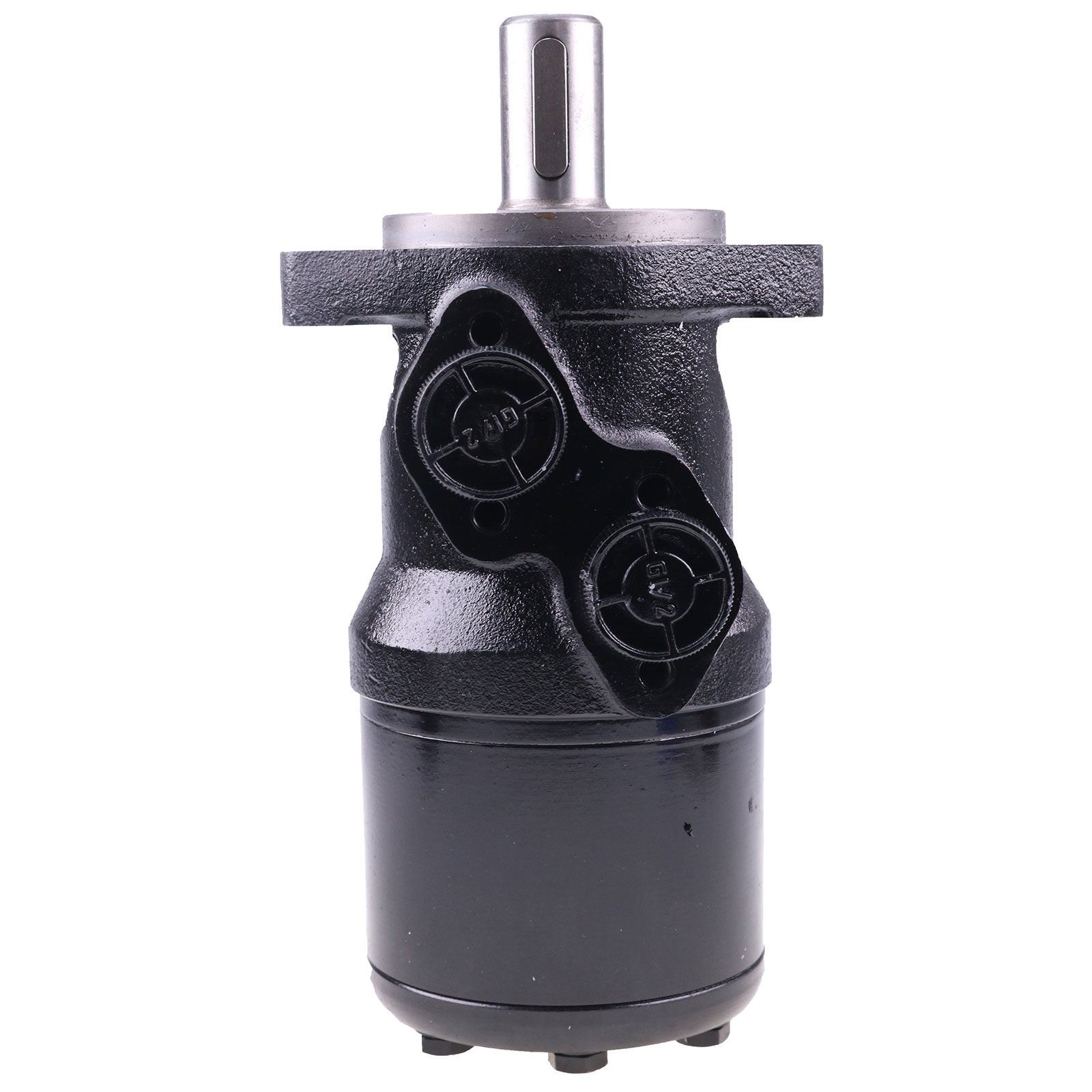

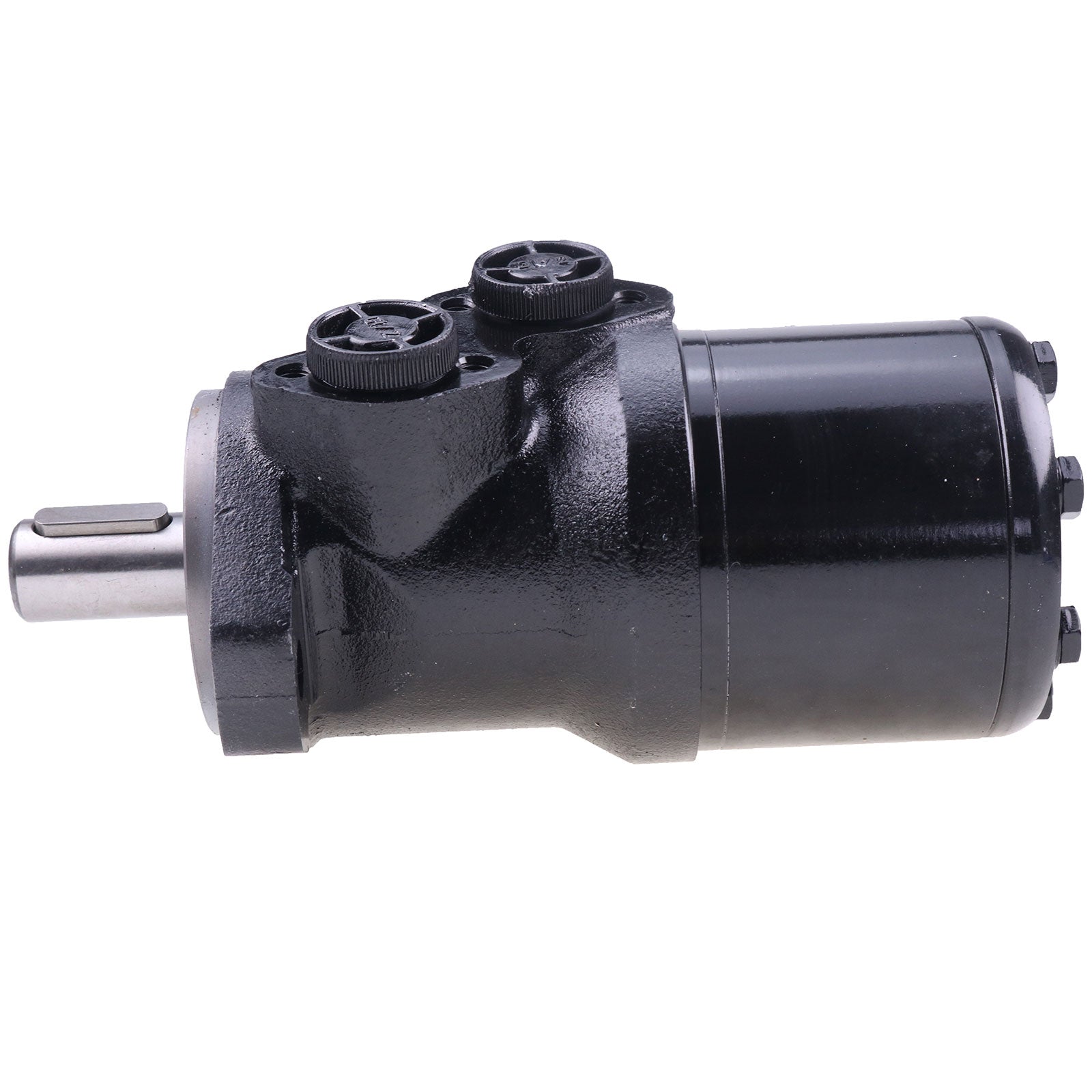

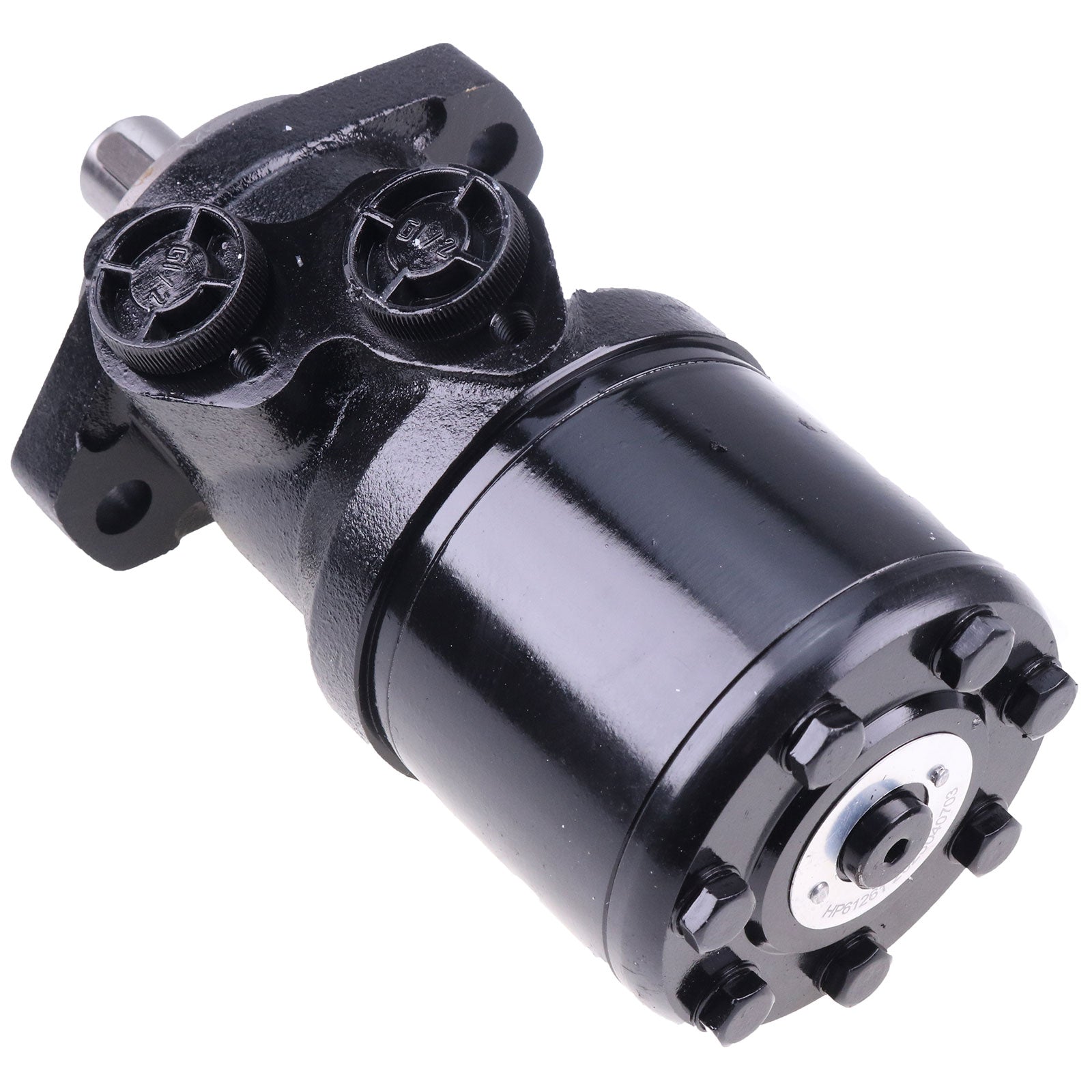

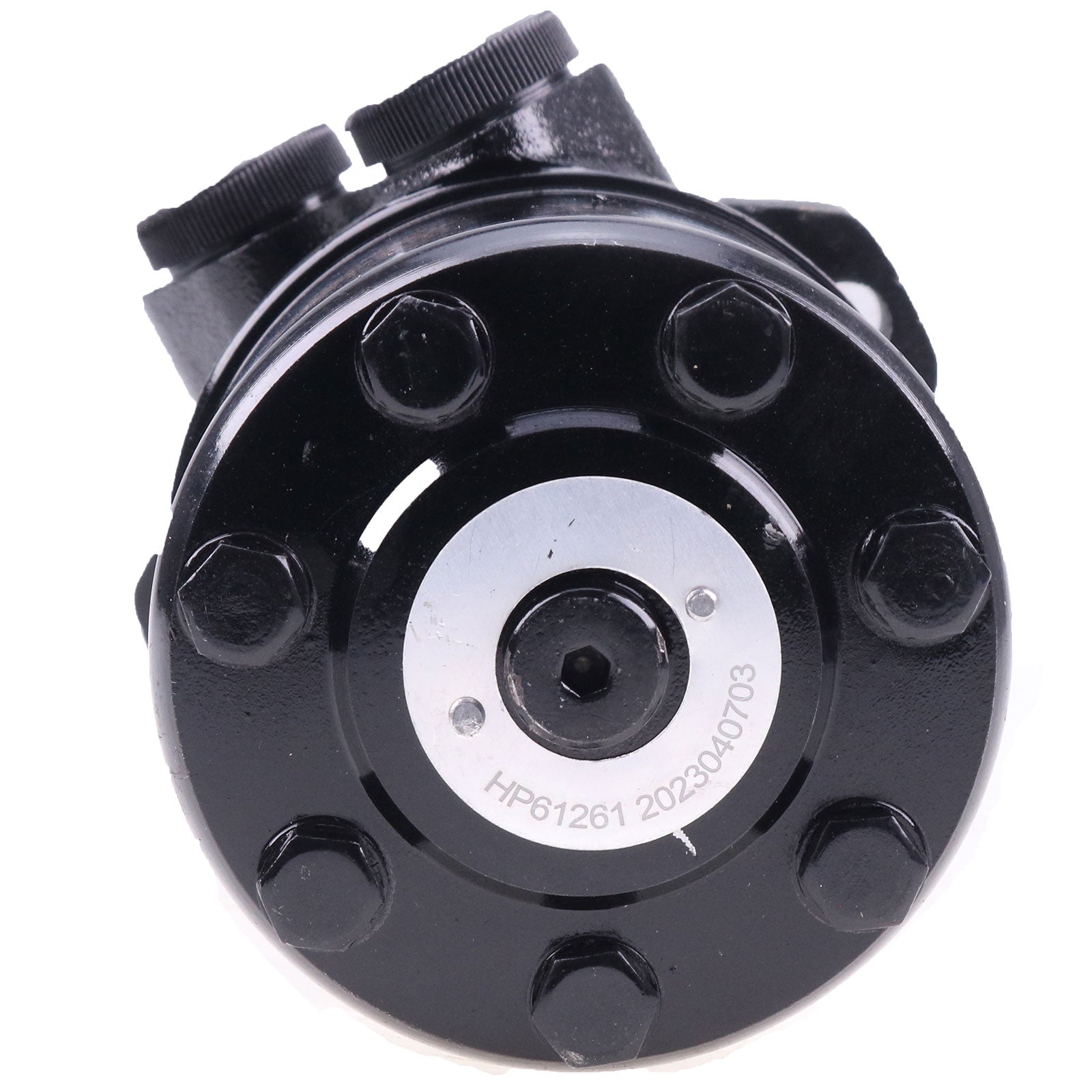

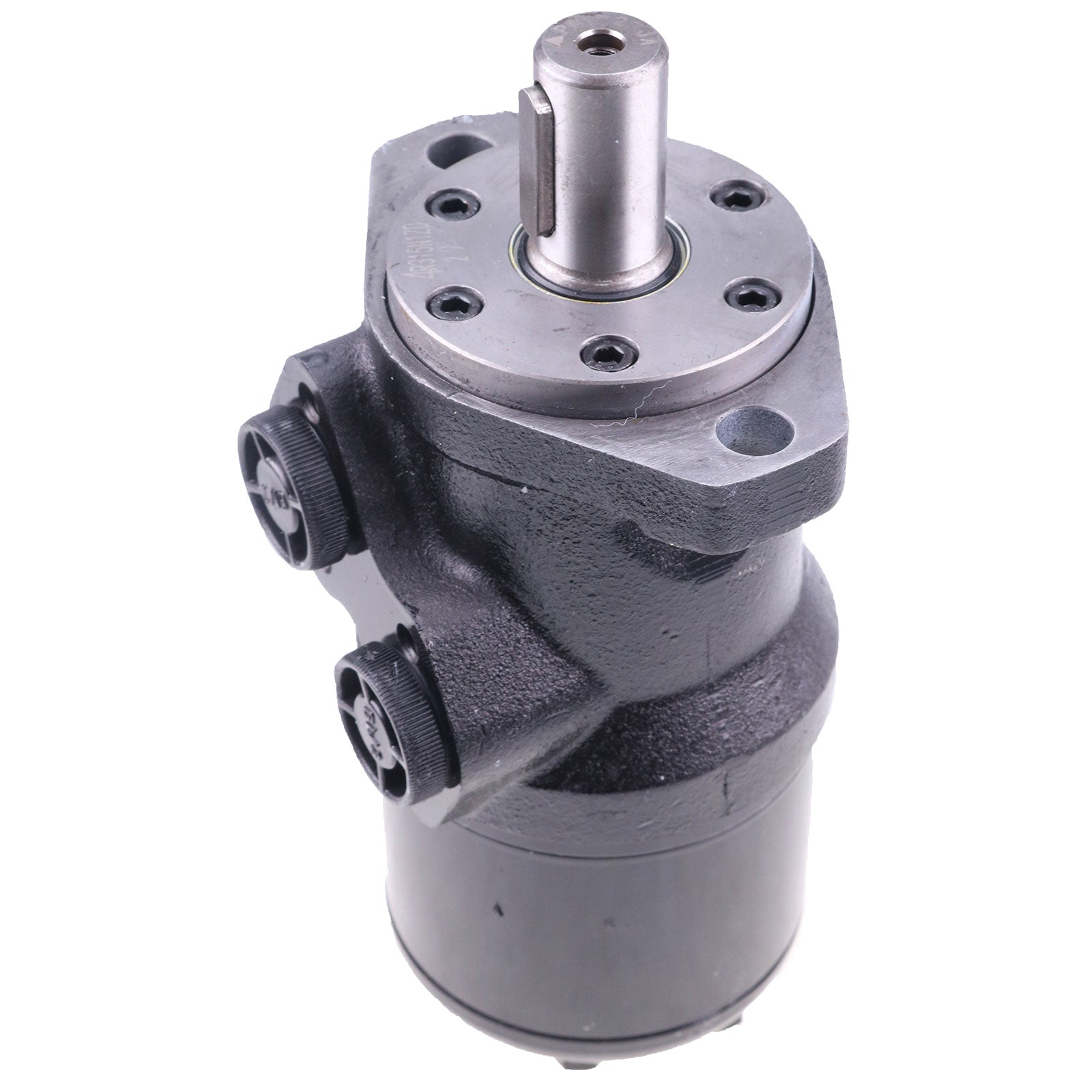

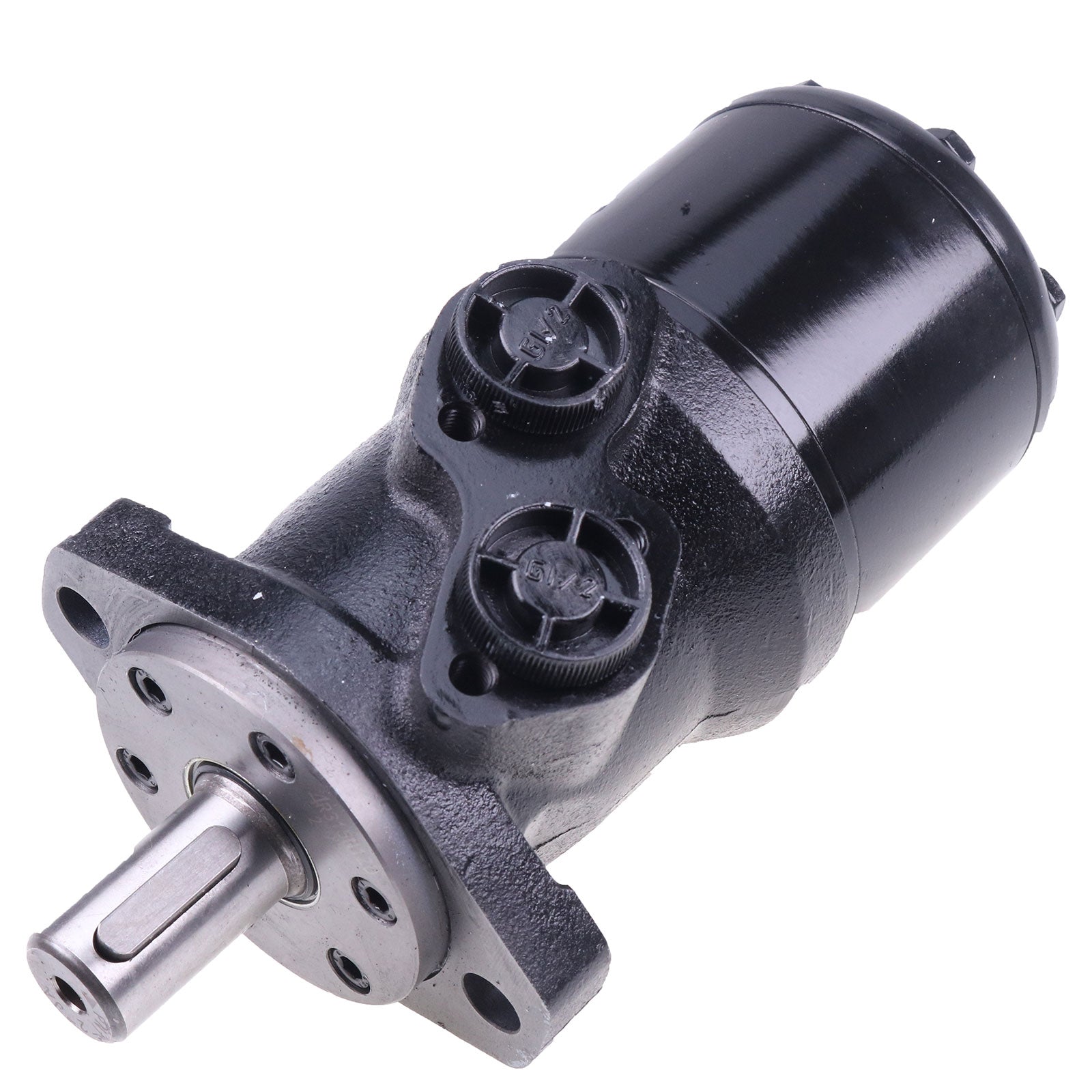

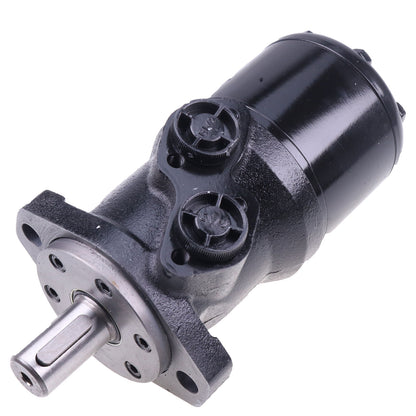

Part Name: Hydraulic Orbital Motor Manufacturing Part Number: OMR 315 - 151-0717, OMR x 315 - 11186652, 1510717
Specification:
Type:OMR
Motor Size: 315
Geometric displacement: 315.7cm³/[19.32in] Max speed cont: 190 rpm Max speed int: 240 rpm Max torque cont: 300Nm/[2660lbf in] Max torque int: 420Nm/[3720lbf in] Max output power cont: 5.0kW/[6.7hp] Max output power int: 6.5kW/[8.7hp] Max pressure drop cont: 70bar/[1020psi] Max pressure drop int: 100bar/[1450psi] Max pressure drop peak: 150bar[2180psi] Max oil flow cont: 60L/min Max oil flow int: 75L/min Max starting pressure with unloaded shaft: 5bar/[75psi] Min starting torque at max press drop cont: 260Nm/[2300lbf in] Min starting torque at max press drop int: 350Nm/[3100lbf in] Max inlet pressure cont: 175bar/[2540psi] Max inlet pressure int: 200bar/[2900psi] Max inlet pressure peak: 225bar/[3260psi] Max return pressure with drain line cont: 175bar/[2540psi] Max return pressure with drain line int: 200bar/[2900psi] Max return pressure with drain line peak: 225bar/[3260psi]
