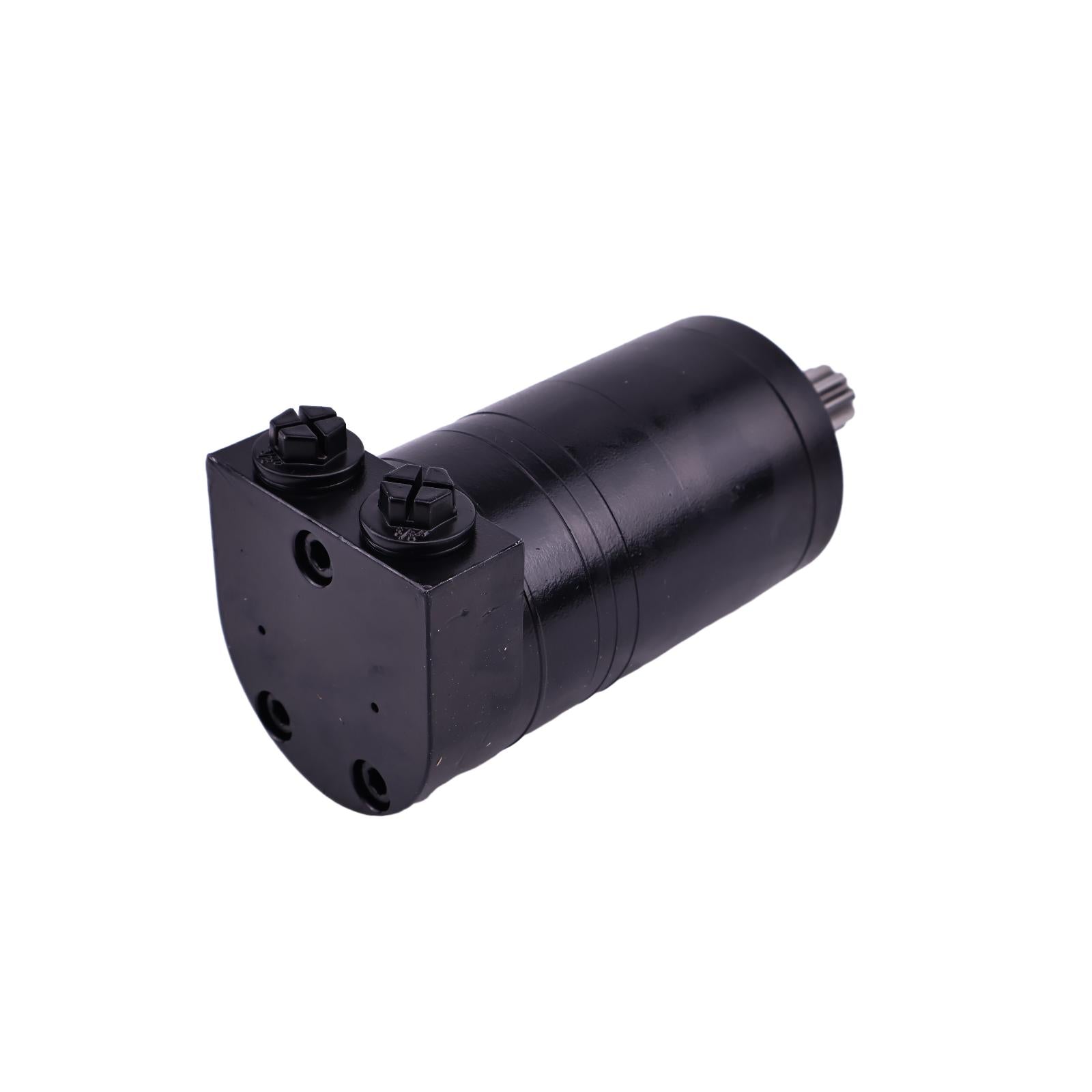

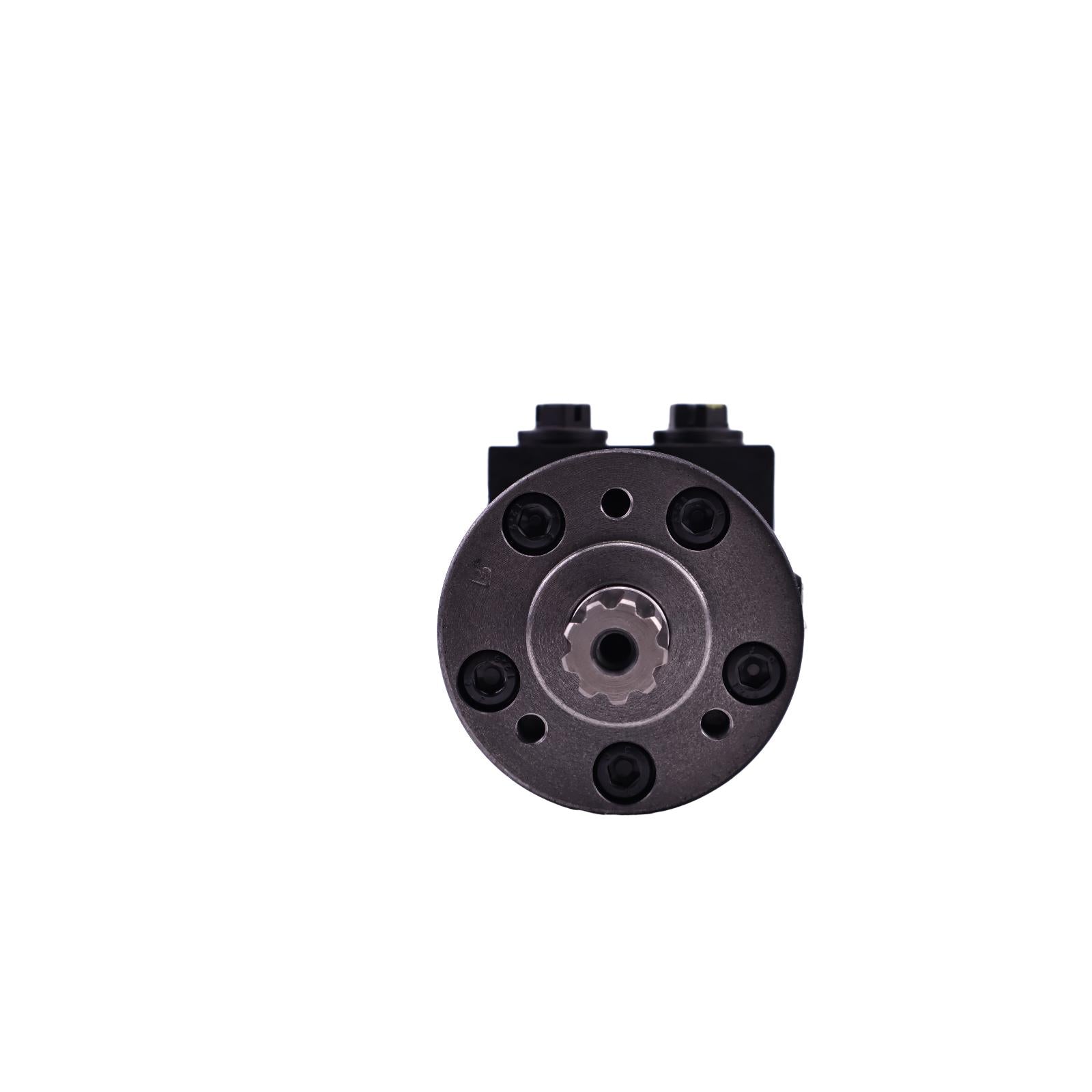

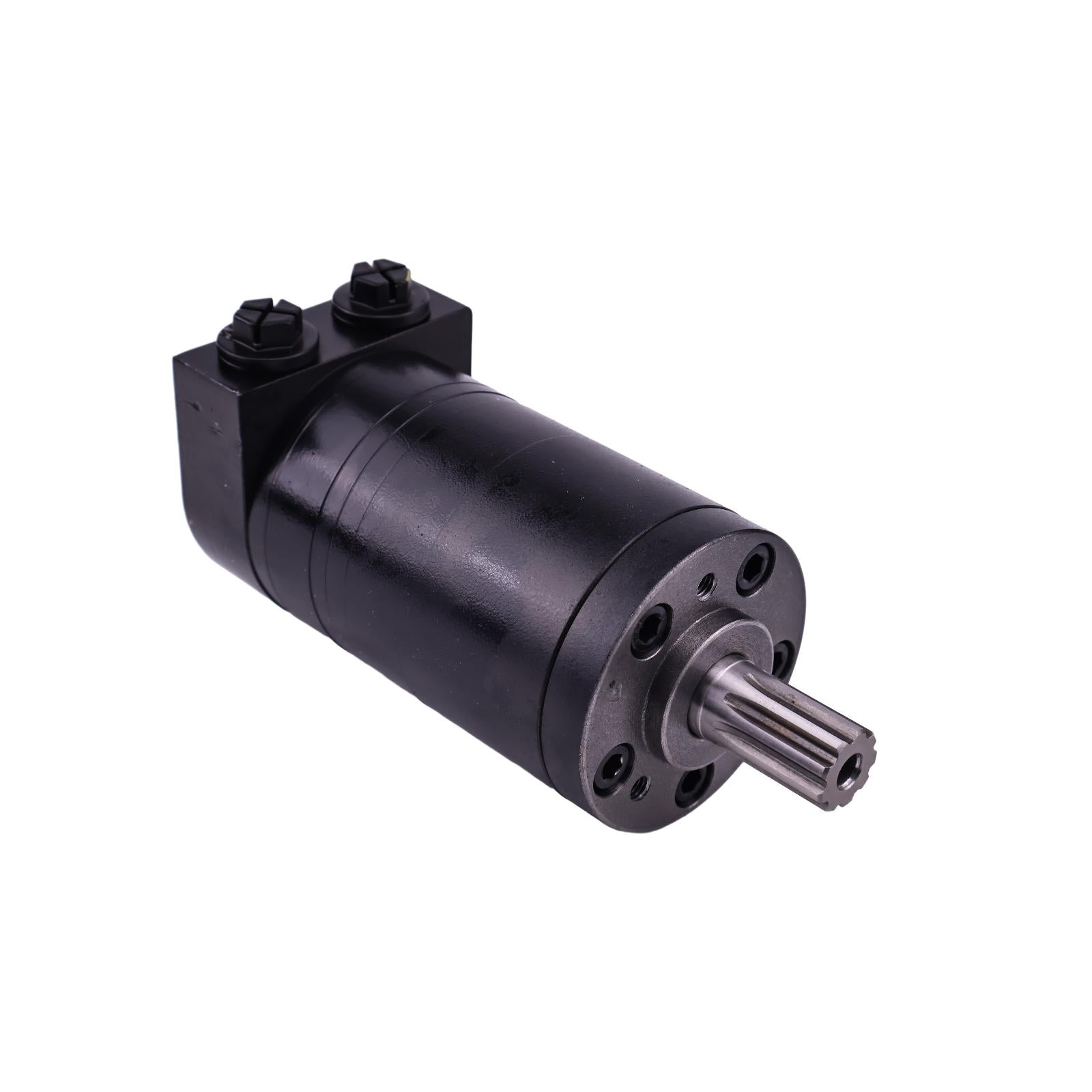

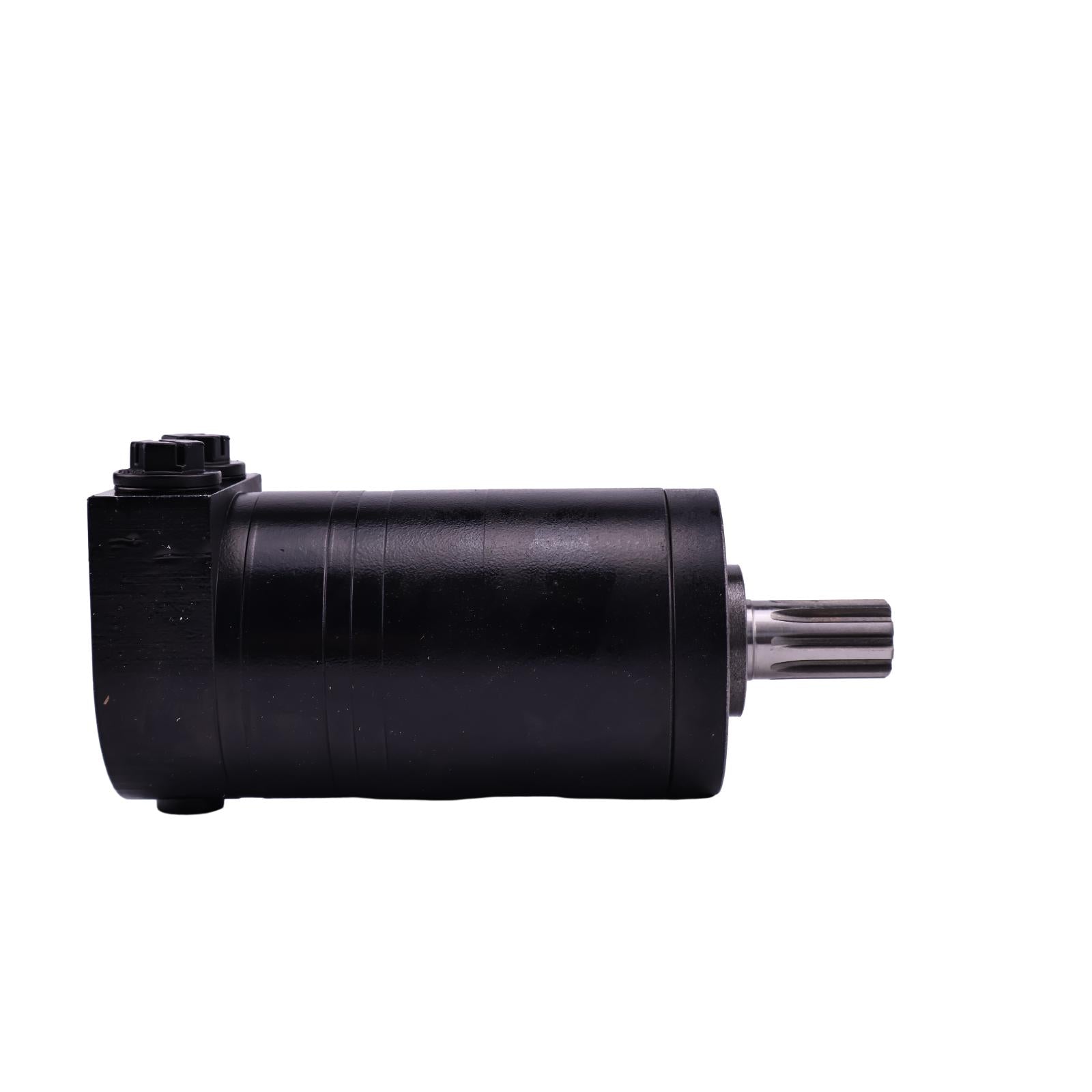

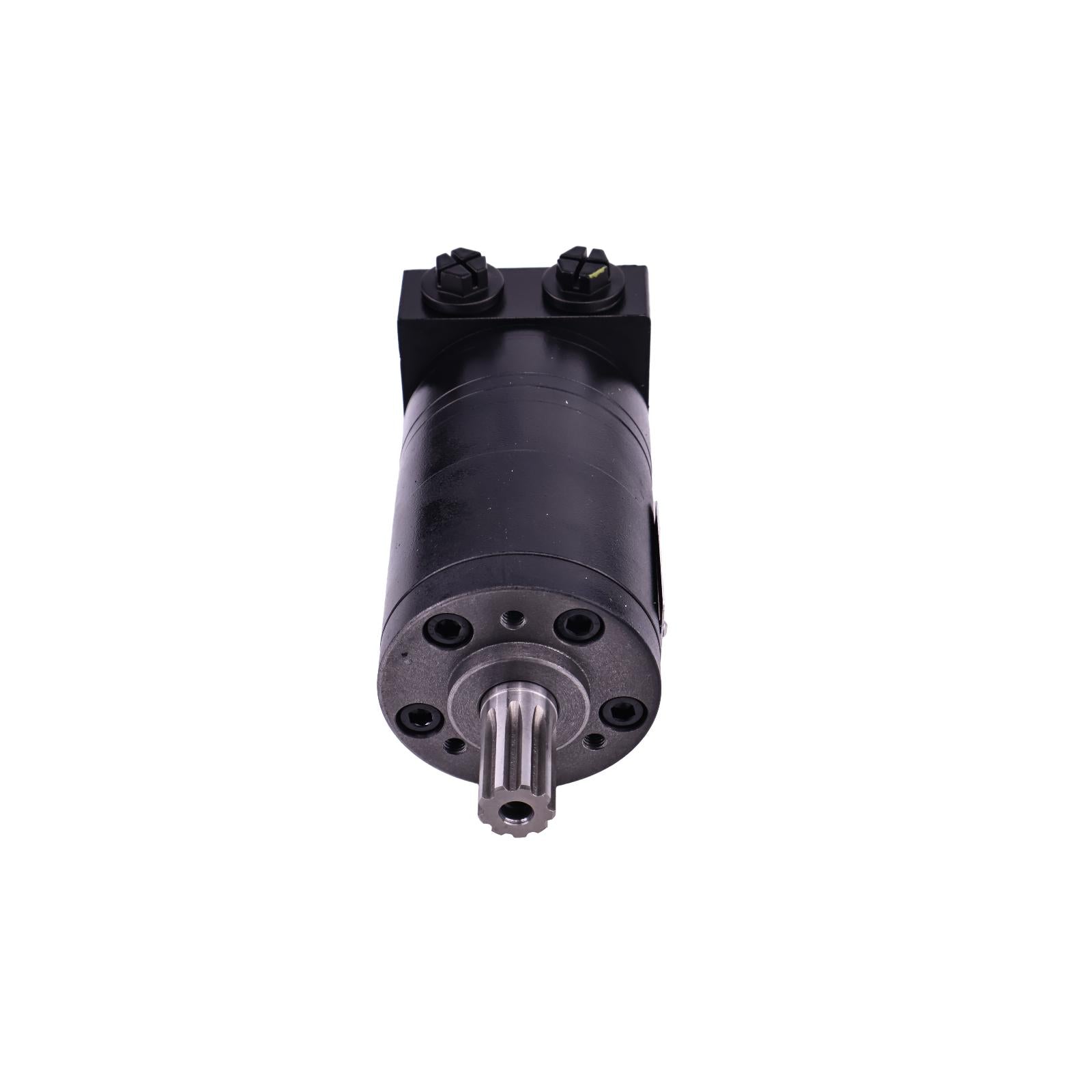

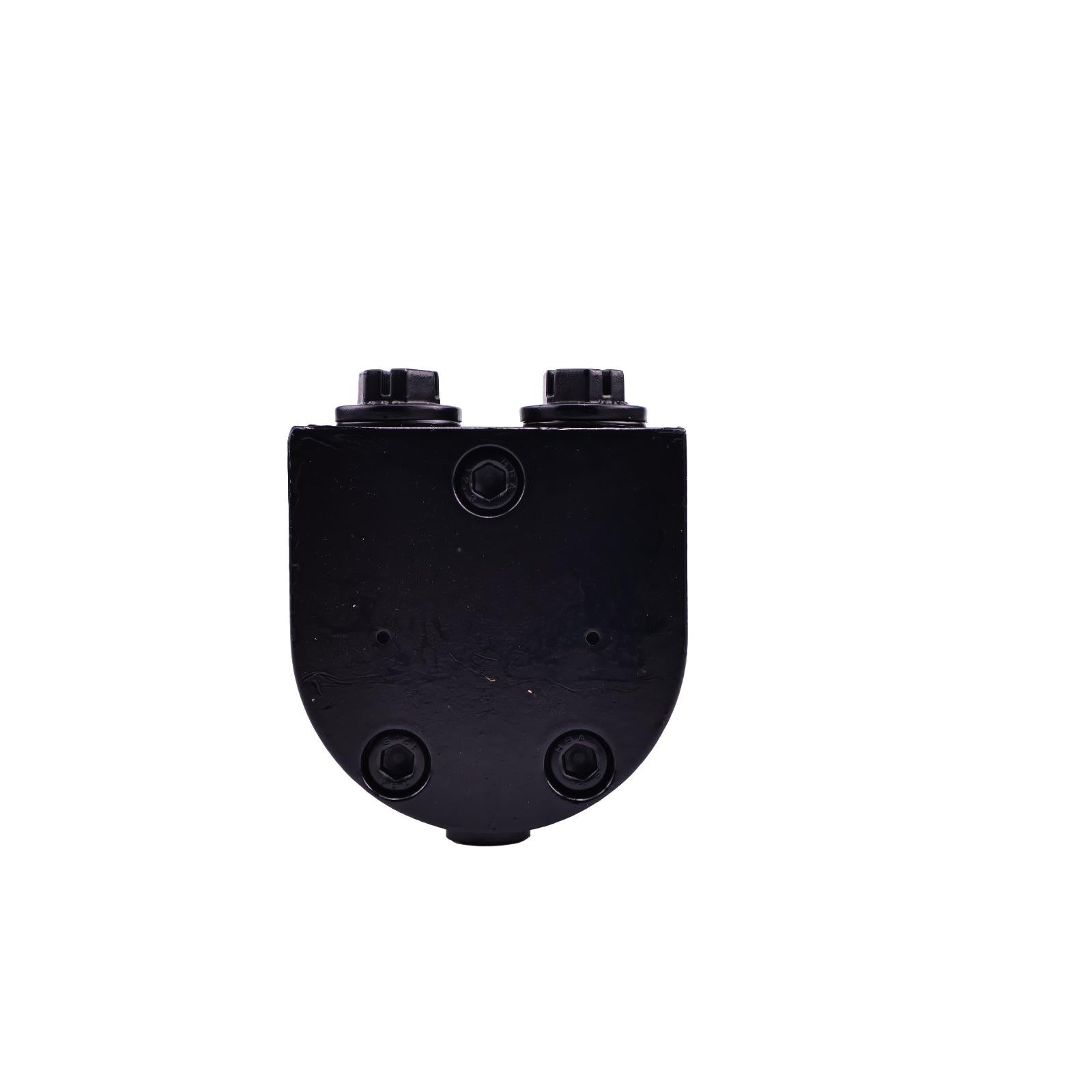

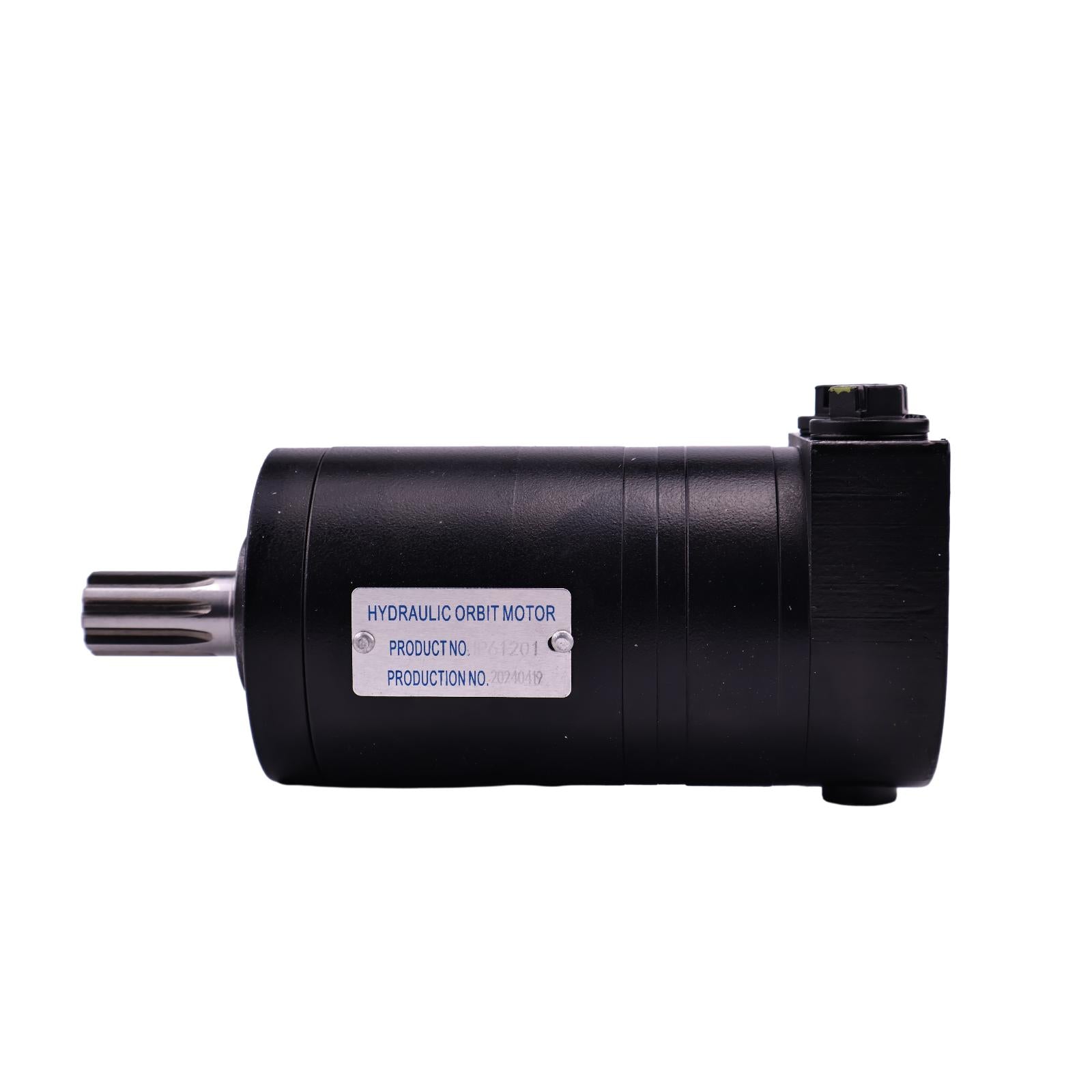

Part Name: Hydraulic Orbital Motor Manufacturing Part Number: OMM32 - 151G0029, 151G0029, OMM32151G0029 Specification:
Type:OMM
Motor Size: 32
Geometric displacement: 31.6cm³/[1.93in] Max speed cont: 630 rpm Max speed int: 800 rpm Max torque cont: 40Nm/[350lbf in] Max torque int: 57Nm/[500lbf in] Max output power cont: 2.4kW/[3.2hp] Max output power int: 3.2kW/[4.3hp] Max pressure drop cont: 100bar/[1450psi] Max pressure drop int: 140bar/[2030psi] Max pressure drop peak: 160bar[2320psi] Max oil flow cont: 20L/min Max oil flow int: 25L/min Max starting pressure with unloaded shaft: 4bar/[60psi] Min starting torque at max press drop cont: 34Nm/[300lbf in] Min starting torque at max press drop int: 48Nm/[425lbf in] Max inlet pressure cont: 140bar/[3050psi] Max inlet pressure int: 175bar/[3630psi] Max inlet pressure peak: 225bar/[4350psi] Max return pressure with drain line cont: 140bar/[2030psi] Max return pressure with drain line int: 175bar/[2540psi] Max return pressure with drain line peak: 225bar/[3050psi]
