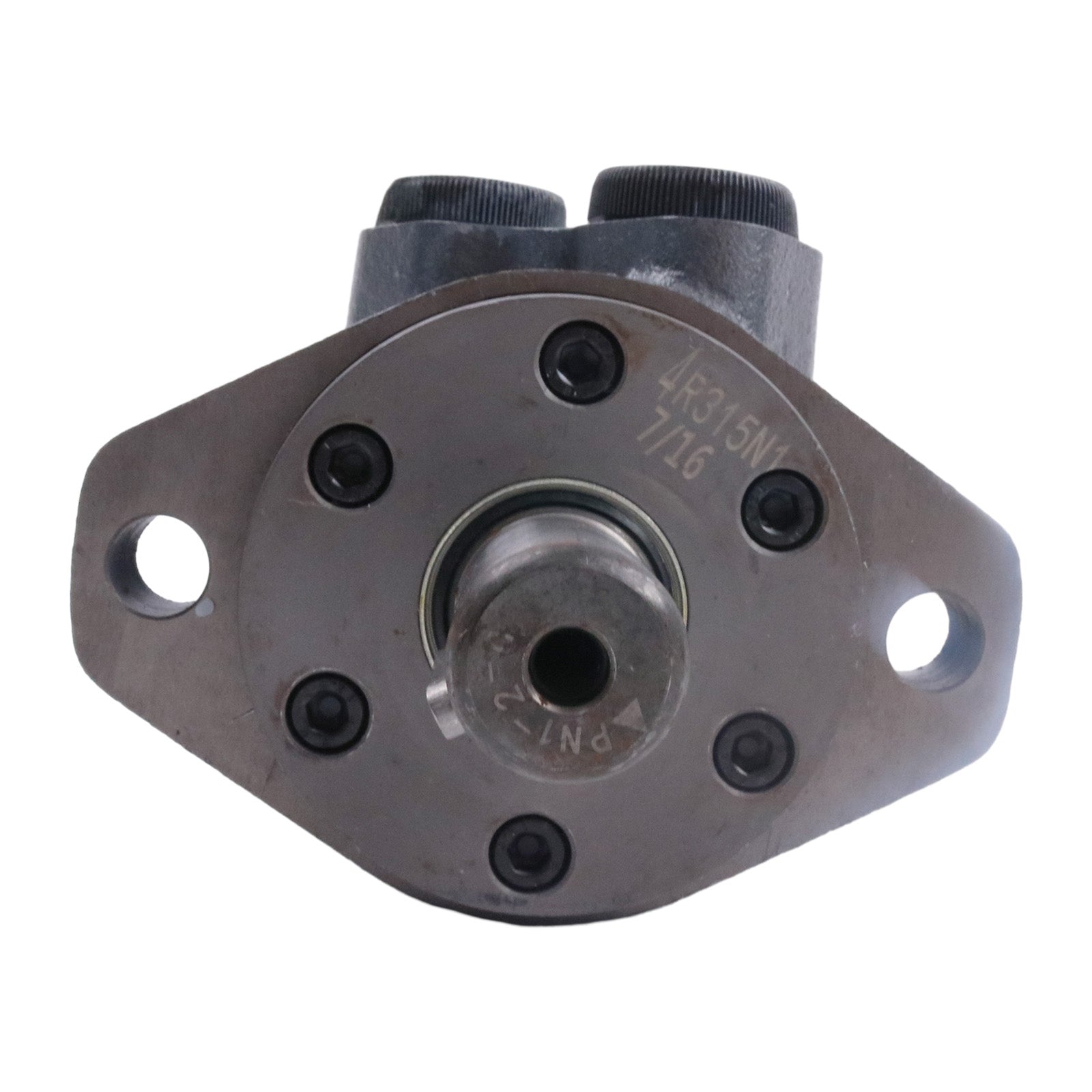

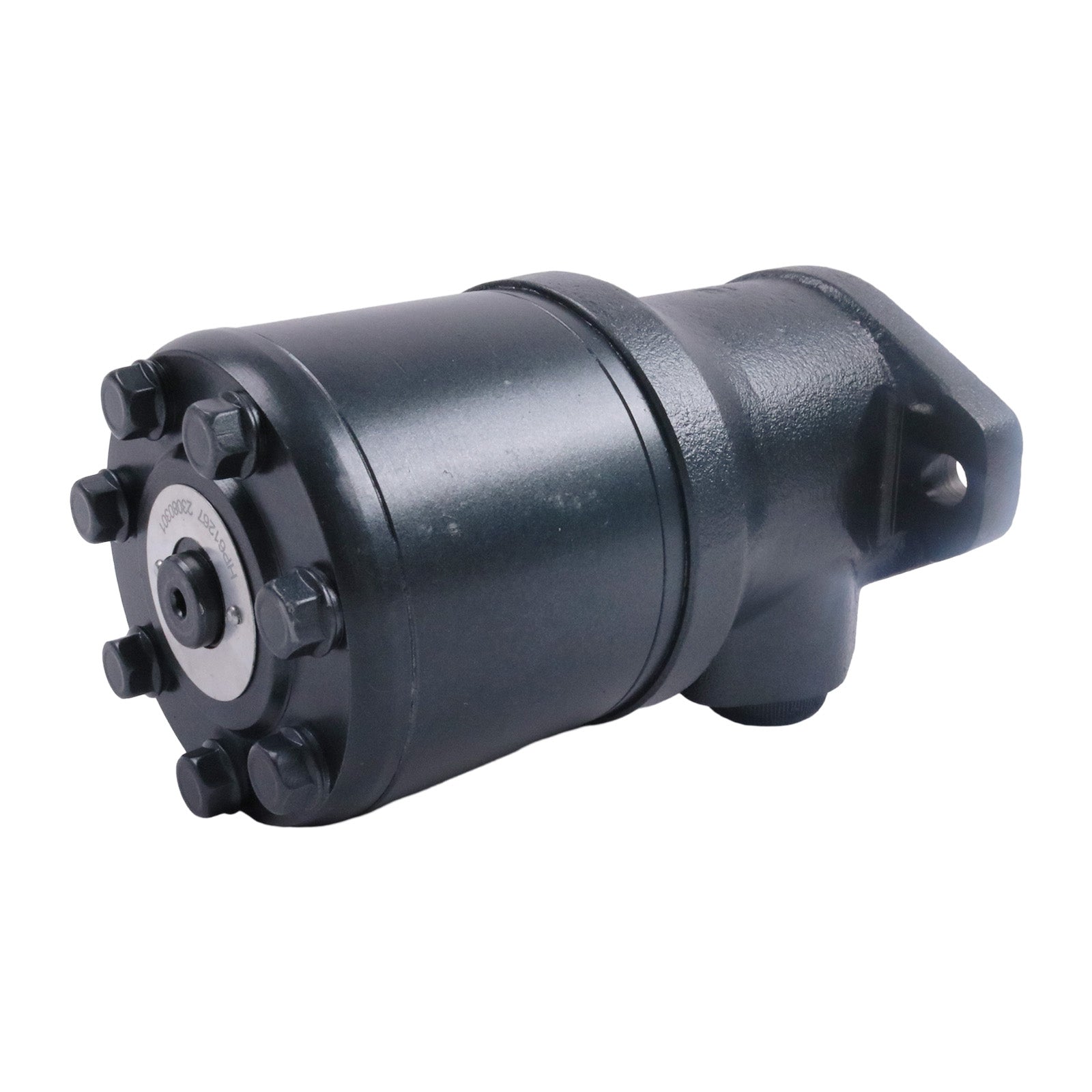

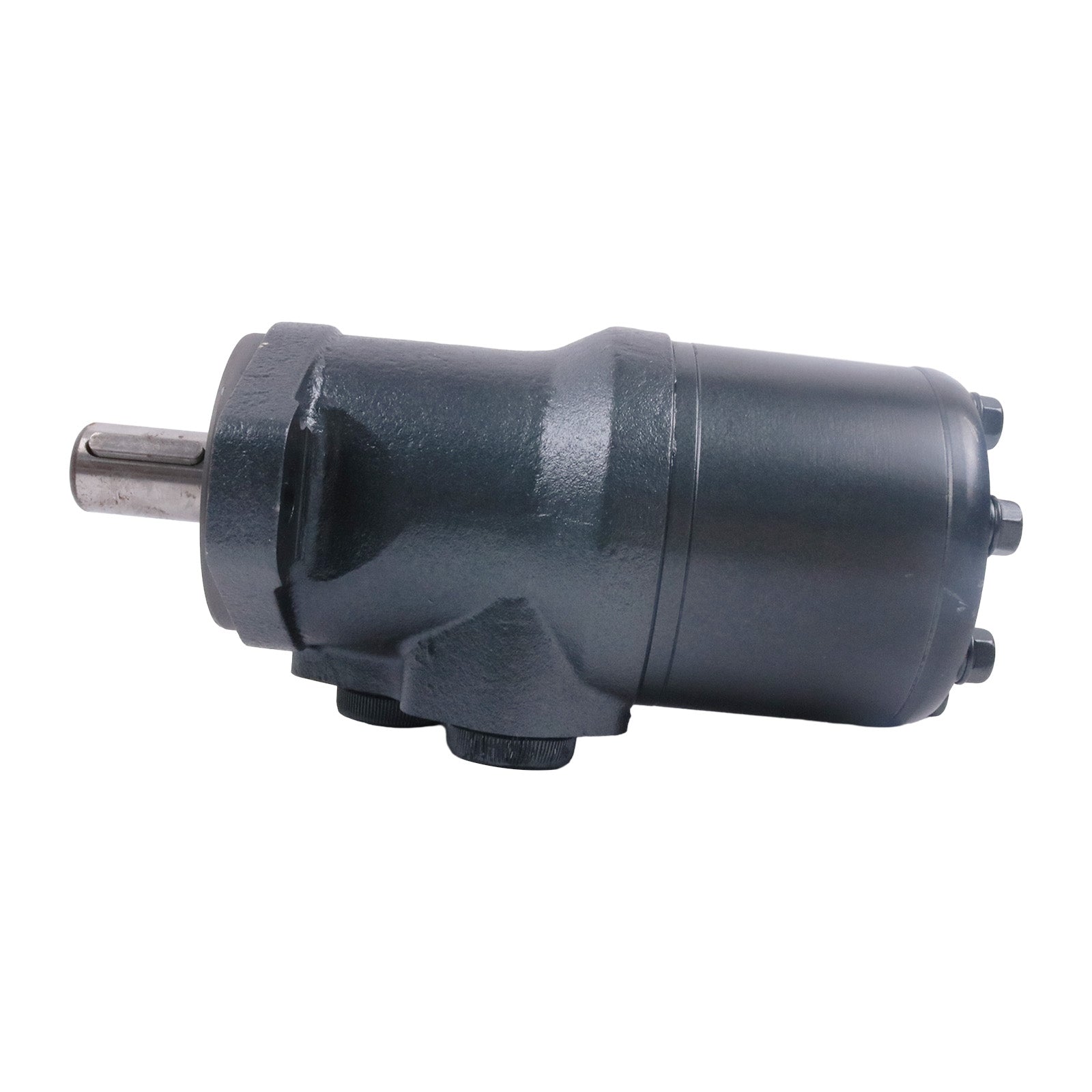

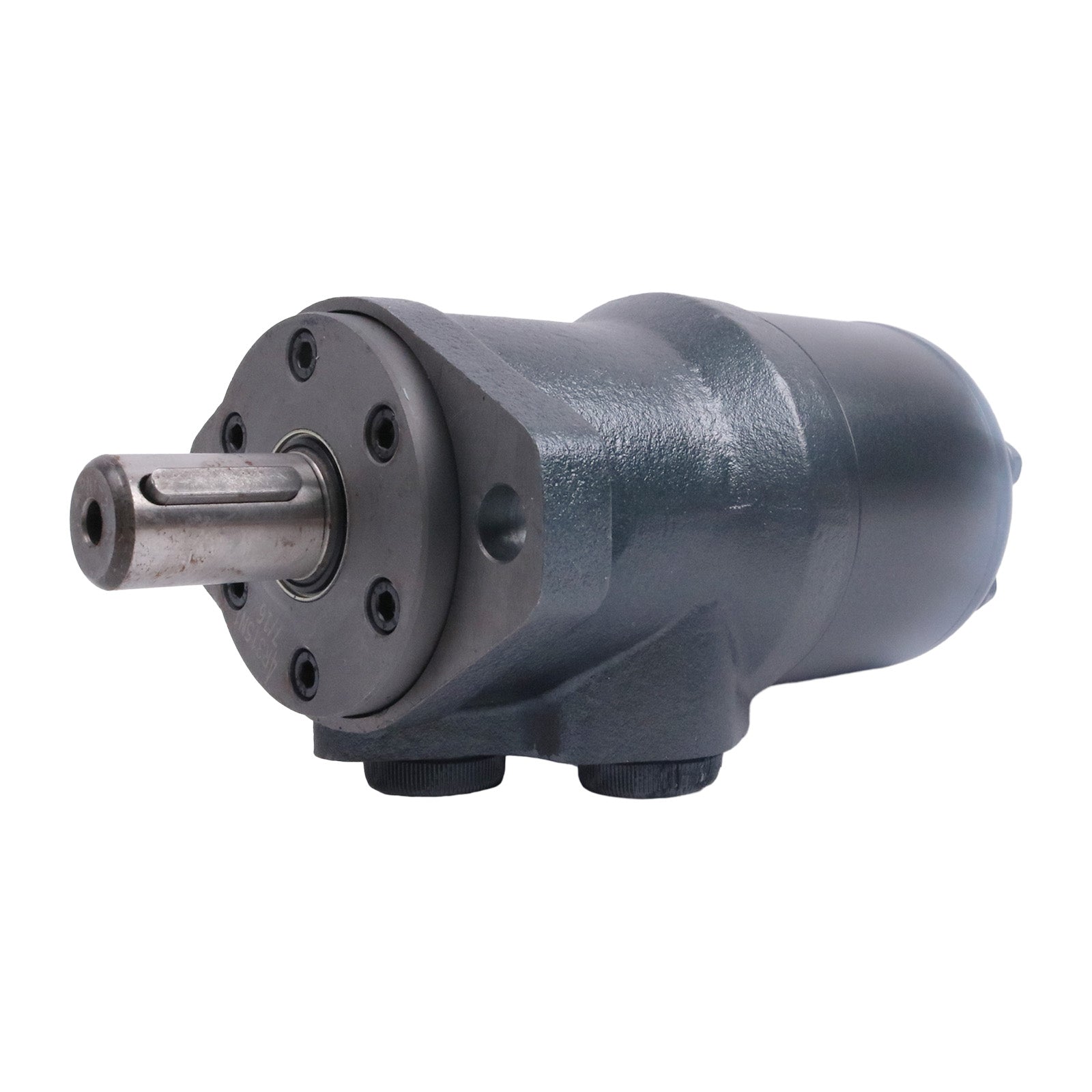

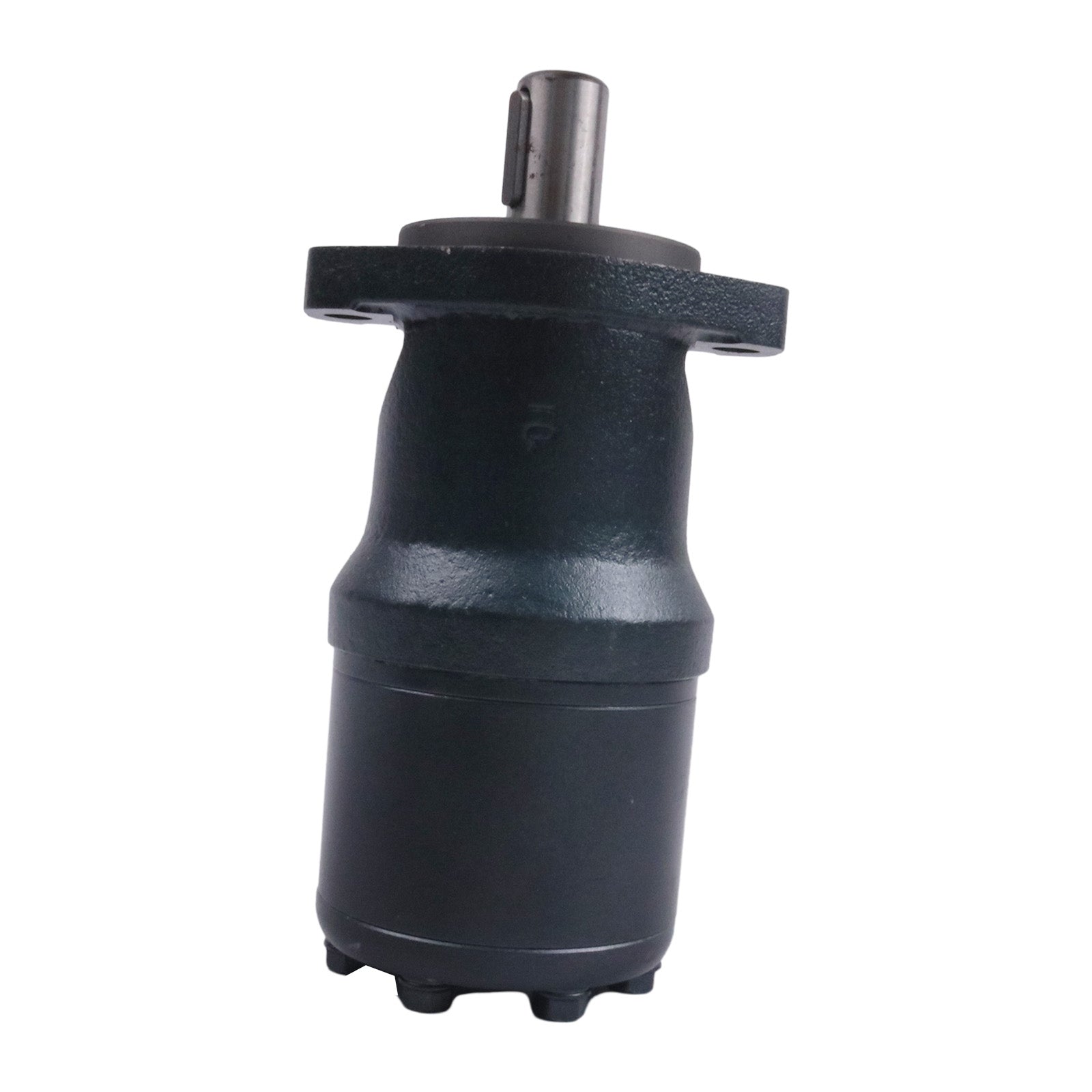

1'' 1/2 BSP Hydraulic Orbital Motor OMR315 - 151-0707 OMR x 315 - 11185545

1'' 1/2 BSP Hydraulic Orbital Motor OMR315 - 151-0707 OMR x 315 - 11185545

$280.00 USD
$280.00 USD
Sale Sold out
Shipping calculated at checkout.
Part Name: Hydraulic Orbital Motor
Manufacturing Part Number: OMR315 - 151-0707, OMR x 315 - 11185545, 1510707
Specification:
Type  OMR
Motor Size 315
Geometric displacement 315.7cm³/[19.32in]
Max speed cont 190 rpm
Max speed int 240 rpm
Max torque cont 300Nm/[2600lbf in]
Max torque int 420Nm/[3720lbf in]
Max output power cont  5.0kW/[6.7hp]
Max output power int  6.5kW/[8.7hp]
Max pressure drop cont  70bar/[1020psi]
Max pressure drop int 100bar/[1450psi]
Max pressure drop peak 150bar[2180psi]
Max oil flow cont  60L/min
Max oil flow int  75L/min
Max starting pressure with unloaded shaft  5bar/[75psi]
Min starting torque at max press drop cont 260Nm/[2300lbf in]
Min starting torque at max press drop int 350Nm/[3100lbf in]
Max inlet pressure cont  175bar/[2540psi]
Max inlet pressure int  200bar/[2900psi]
Max inlet pressure peak  225bar/[3260psi]
Max return pressure with drain line cont  175bar/[2540psi]
Max return pressure with drain line int  200bar/[2900psi]
Max return pressure with drain line peak  225bar/[3260psi]
