BlackMax AVR 5KW 5.7KW 7KW 7.5KW 9KW 5000 5700 7125 8750 Watt Gas Generator Automatic Voltage Regulation

▲Product Features:

• Built-in Full-Wave Output Bridge Rectification.
• Voltage Output Increase with Loading.
• Stable Voltage Output with Negative Voltage Feedback.
• Over Voltage, Over Current and Short Circuit Protection.
• Large Manual Adjustable Voltage Output Range of 160V ~ 260V for 240V output.

▲Technical Specifications:

• Maximum Output: DC 90V 3.5A.
• Excitation Voltage: 90V ~ 100V.
• Feedback Voltage: 14V ~ 24V with an Average of 18V.
• Frequency: 50/60Hz.
• AC Voltage Output: 120V/240V.
• Auto Voltage Adjusting Accuracy: ≤ ±1%.
• Maximum Temperature Rise: 130C or 266F.
• Continuous Working Time: ≥ 20 Hours.
• Installation-Center Distance: 140 ± 1mm (about 5.5 in).

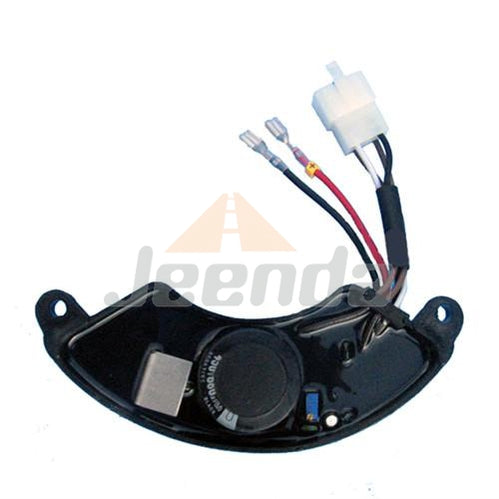

Part Number: Automatic Voltage Regulation AVR-7510K-BM

Premium Replacement 6.5KW to 8.5KW Adjustable Generator Automatic Voltage Regulator(Automatic Voltage Regulation AVR) for BlackMax Portable Gasoline Generator Models: BM10500, BM10500G, BM10680, BM10680S, BM905000, BM905700, BM905700P, BM907000, BM907000A, BM10700D, BM10700DG, BM10700DR, BM10700H, BM10700HR, BM10700J, ZR10700, ZR10700J, ZR10711 & ZR10722. It can handle maximum surge power up to 10KW.
