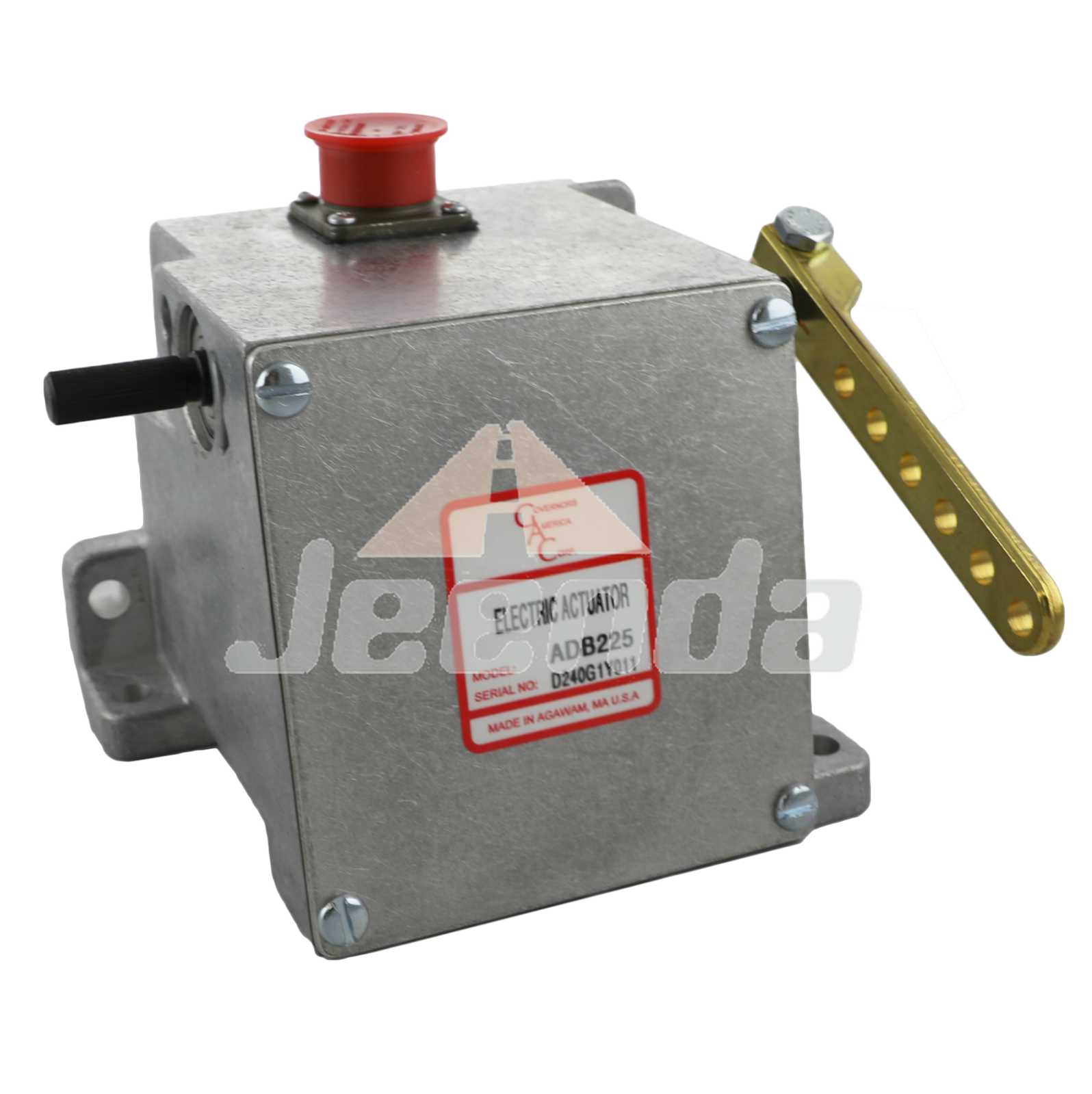

GAC Governors America Corp 225 Series ADB225 Multi-Voltage Actuator
(Multi VDC / MIL Connector / Diecast Housing)
The 225 Series electric actuator is a rotary output, linear torque, proportional servo. This electromechanical actuator is typically used as an engine fuel control positioning device. An internal spring provides fail-safe operation by forcing the actuator to the fuel shut off position when the actuator is de-energized. This design combines fast operation, multi-voltage usage, wider rotation angles, and proven reliability. The actuator can operate directly from 12 and 24-volt battery supplies. The speed of operation of the actuator is typically faster than competitive units, thus it provides a more stable and rapid response to transient conditions. Applications include fuel injection pumps, with or without mechanical governors, rotary type pumps, and medium-sized gaseous fueled engines. The 25 degrees of rotation expands the application to a wider variety of engines.
Features:
Easy Installation
Universal Design
Internal Return Spring
Rapid Response to Transient
Multiple Mounting Positions
2.2 lb.ft. Torque
25?? Rotation
