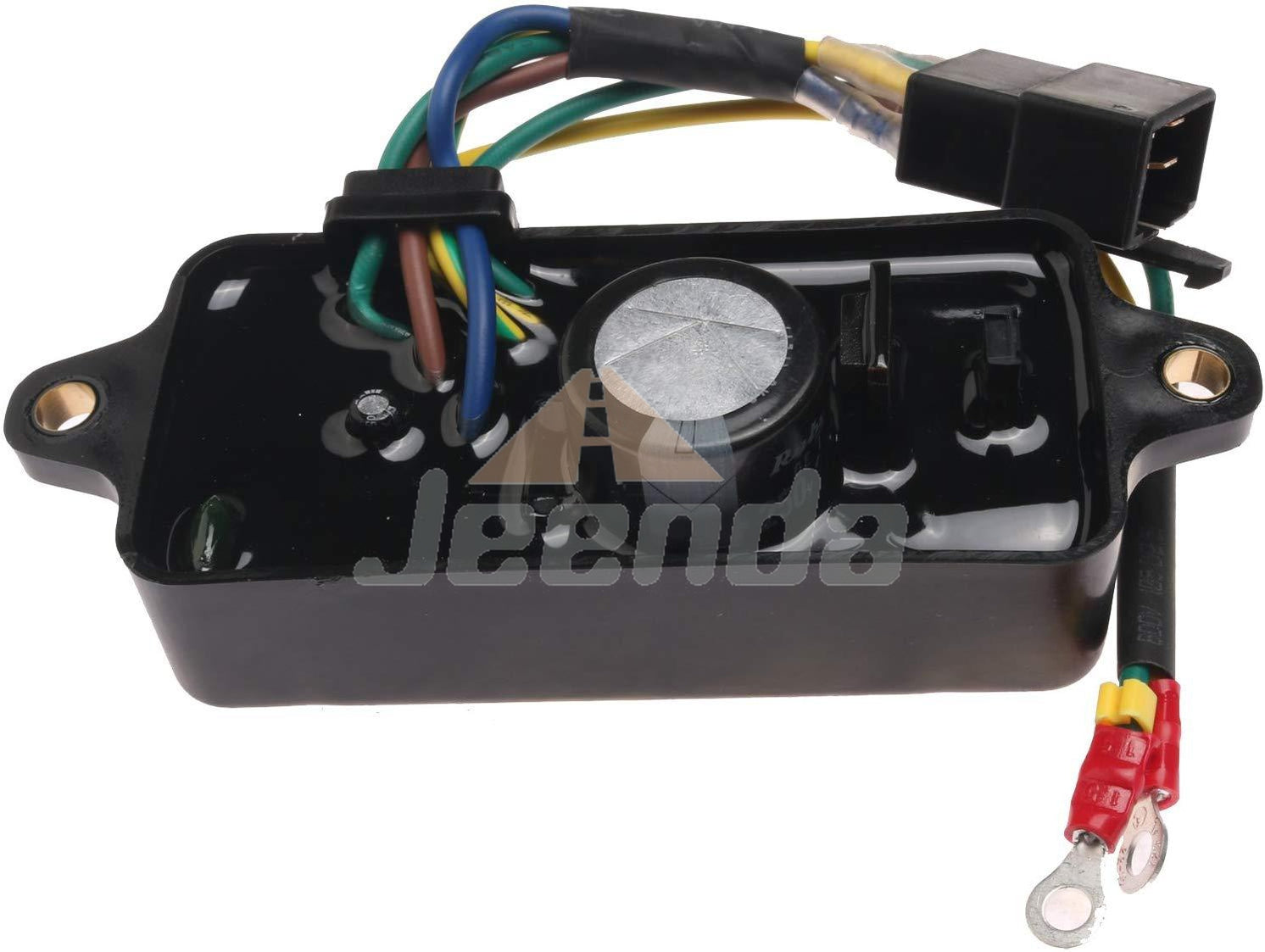

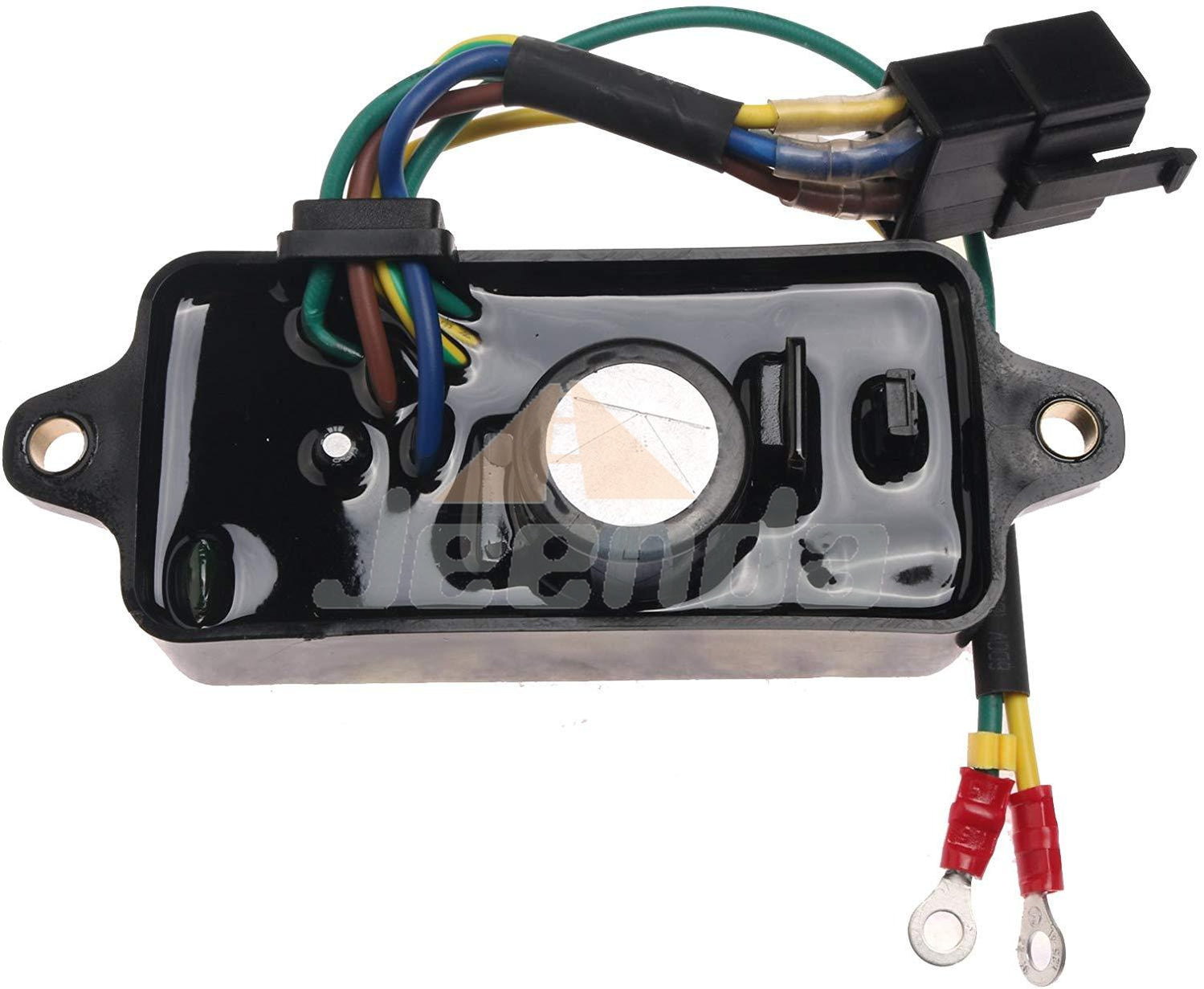

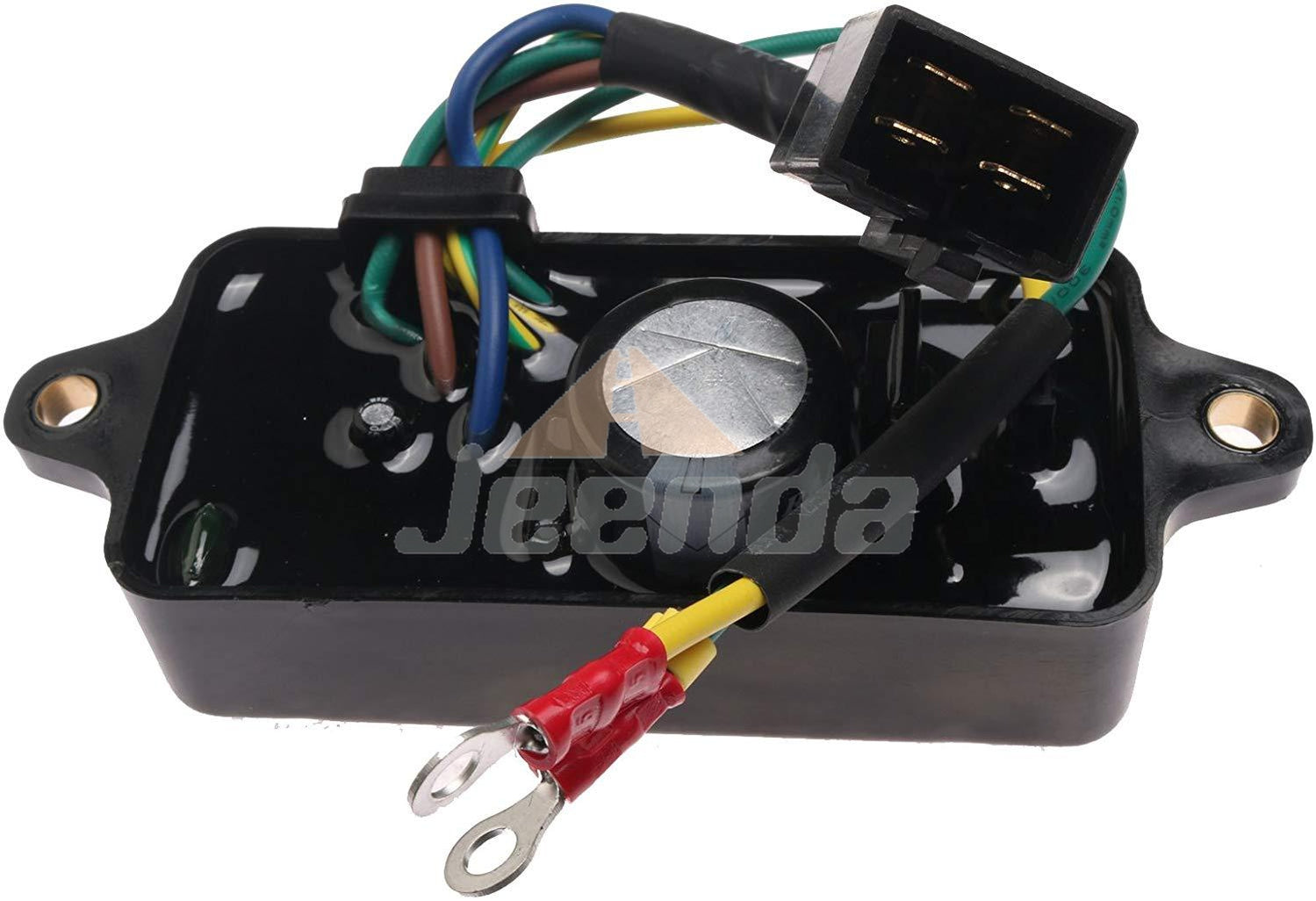

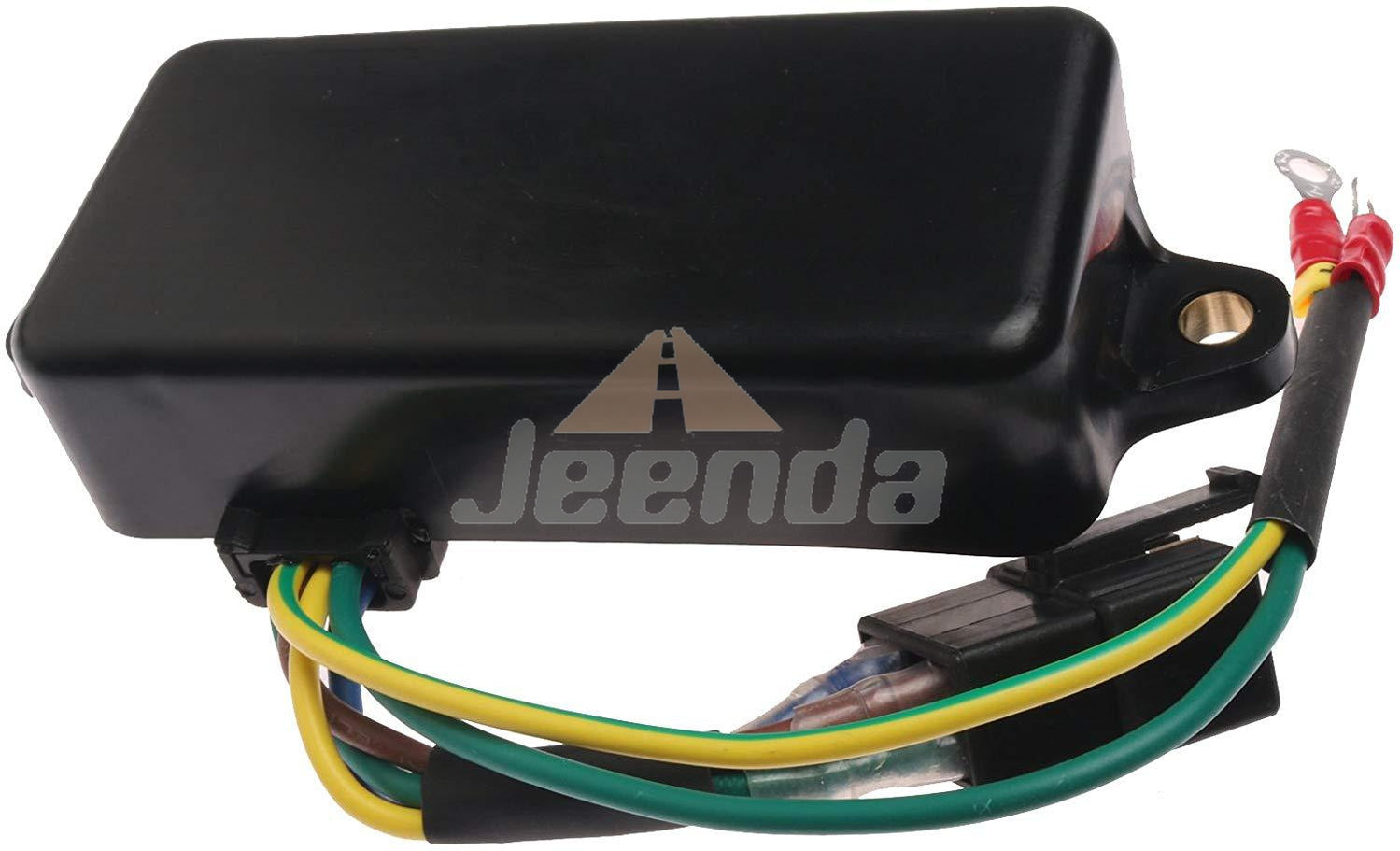

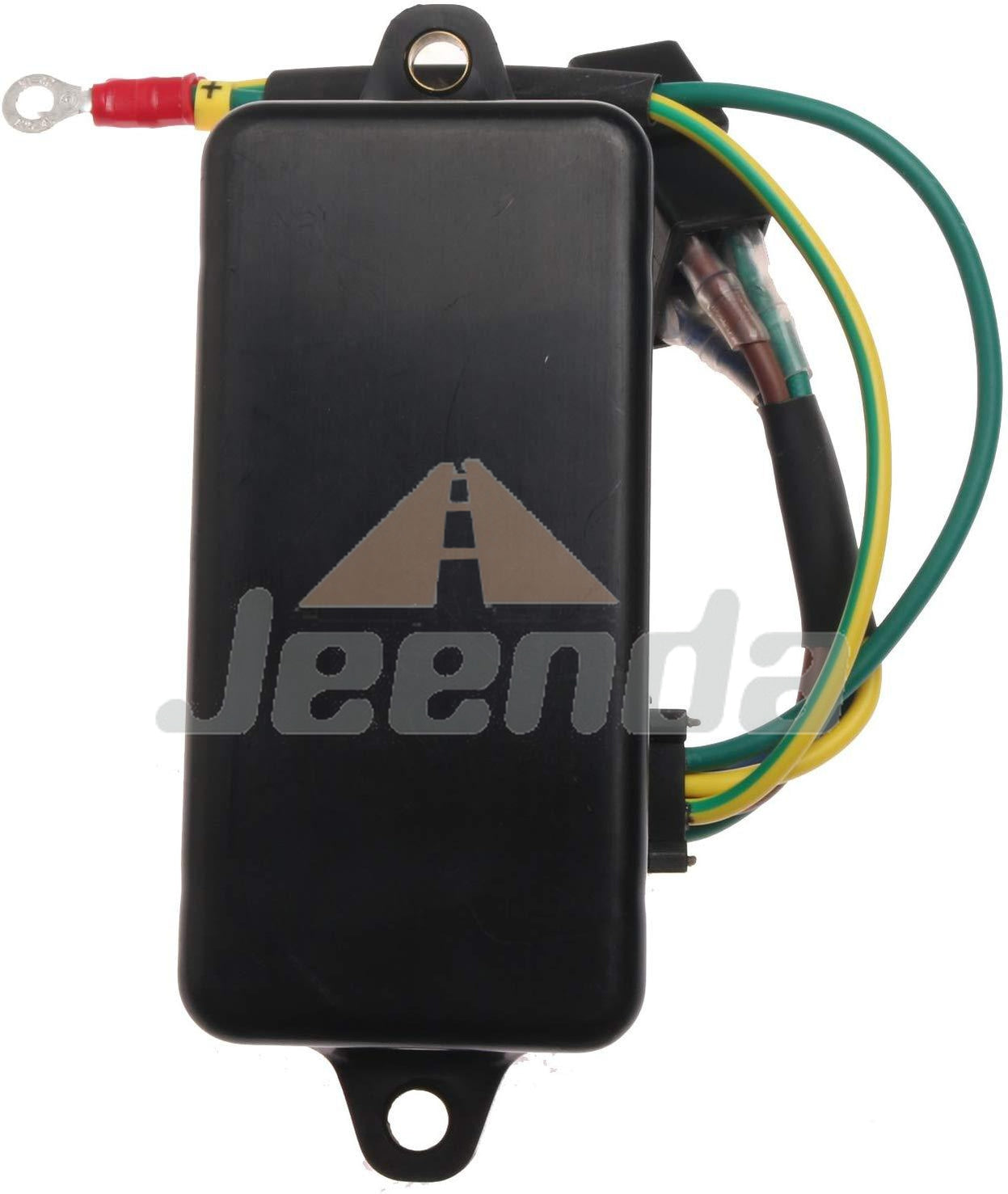

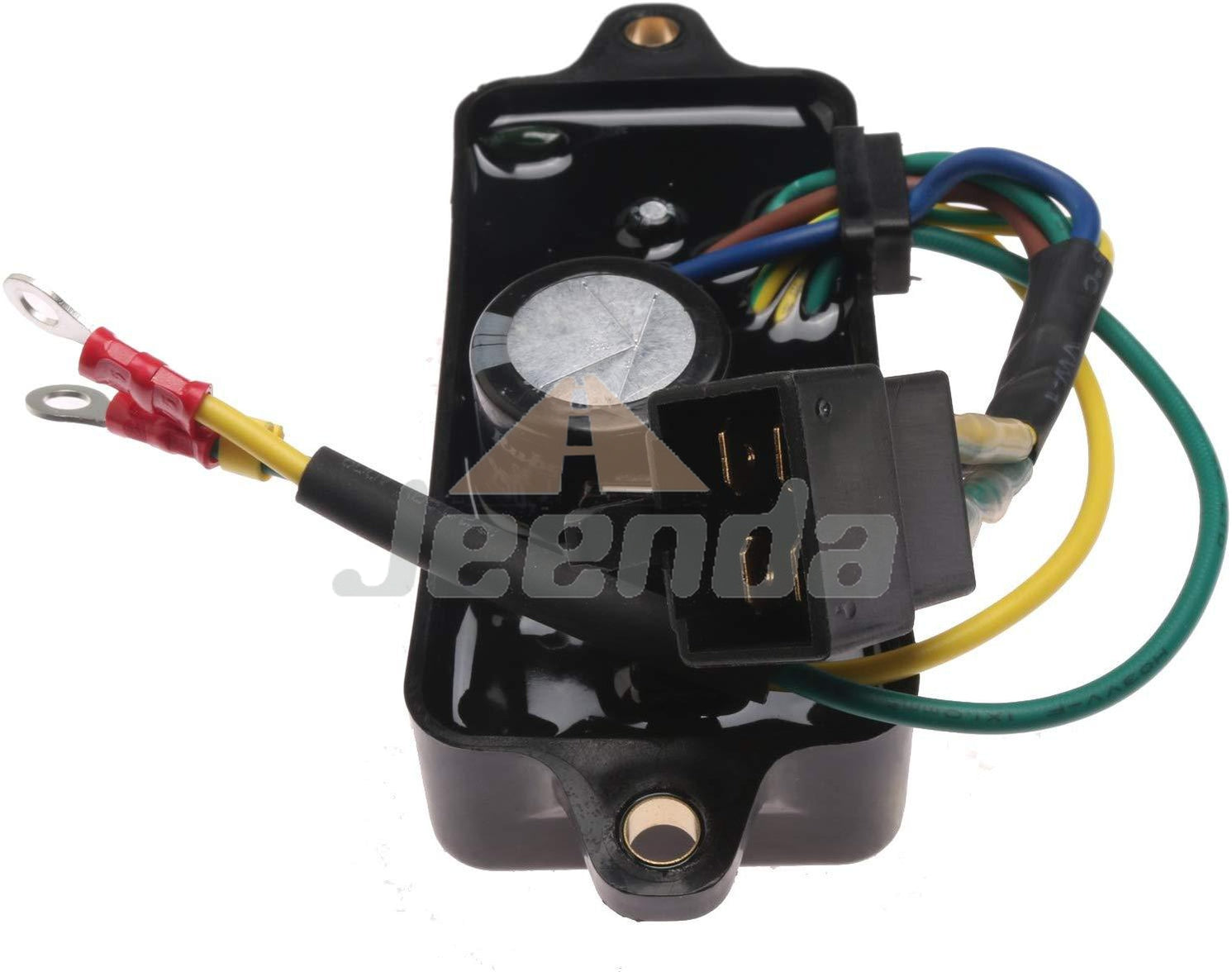

JEENDA Automatic Voltage Regulation AVR EC2500 for Honda

Voltage Regulator for Honda EP-1800 EM2200 EC2500 EP-2500 EX800 Generator

• Sensing Input Voltage 18 - 24 VAC, 1 phase 2 wire
• Voltage Regulation < ±2% (within 4% engine governing)
• Power Input: Voltage 60 - 90 VAC, 1 phase 2 wire
• Voltage Build Up Residual volts at AVR terminal >1 VAC
• Excitation Output Voltage 5 - 85 VDC
• Voltage Adjust Range 110 VAC ± 15%
• Current: Continuous 3A, Intermittent 4A for 60 sec
• Thermal Drift 0.05% per change in AVR ambient
• Field / rotor resistance: minimum 25 Ω
• Environment
• Vibration 1.5G @ 5 - 30 Hz 5.0G @ 30 - 500 Hz Relative Humidity < 95%
• Operating Temperature -40 ~ 60 C
• Storage Temperature -40 ~ 85 C
