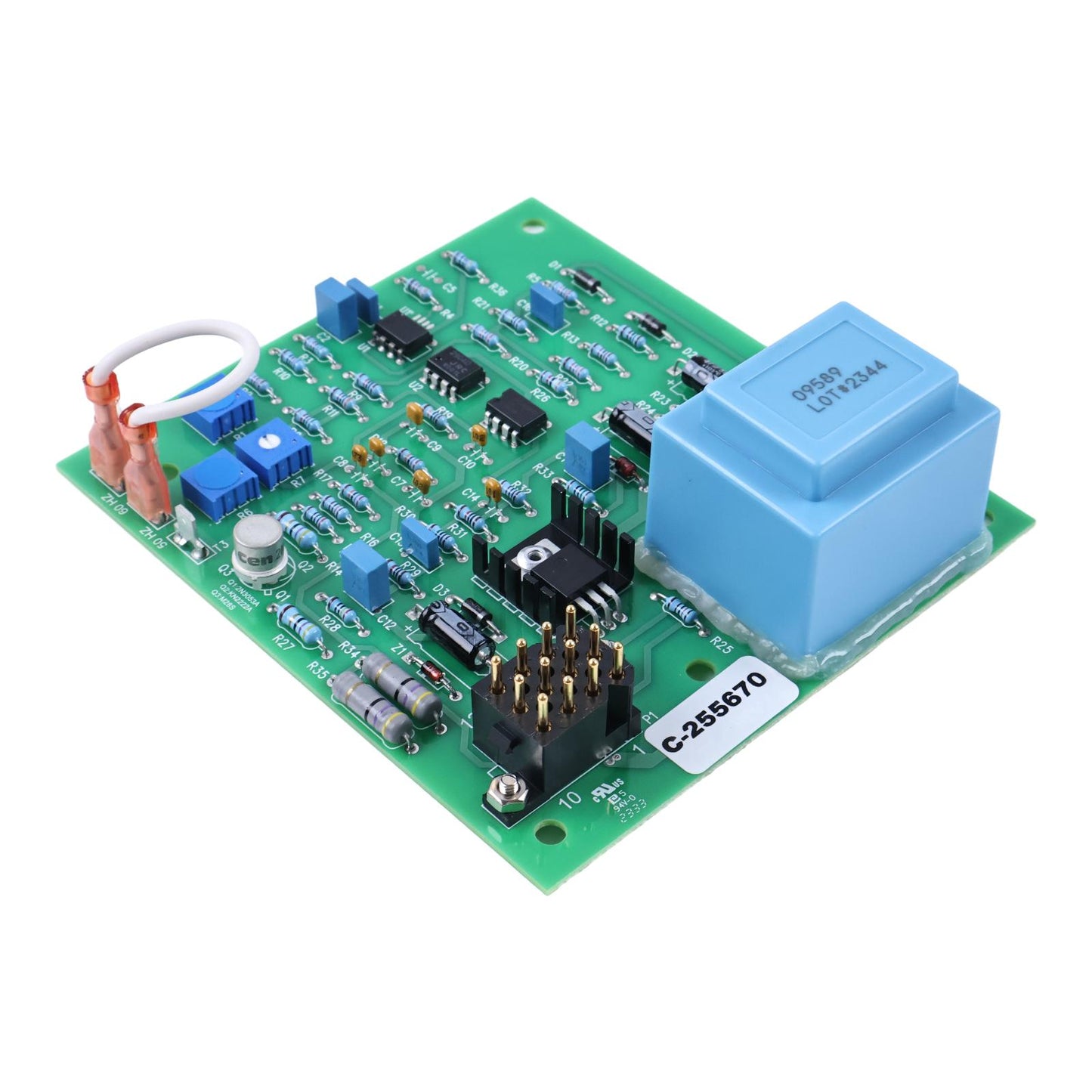

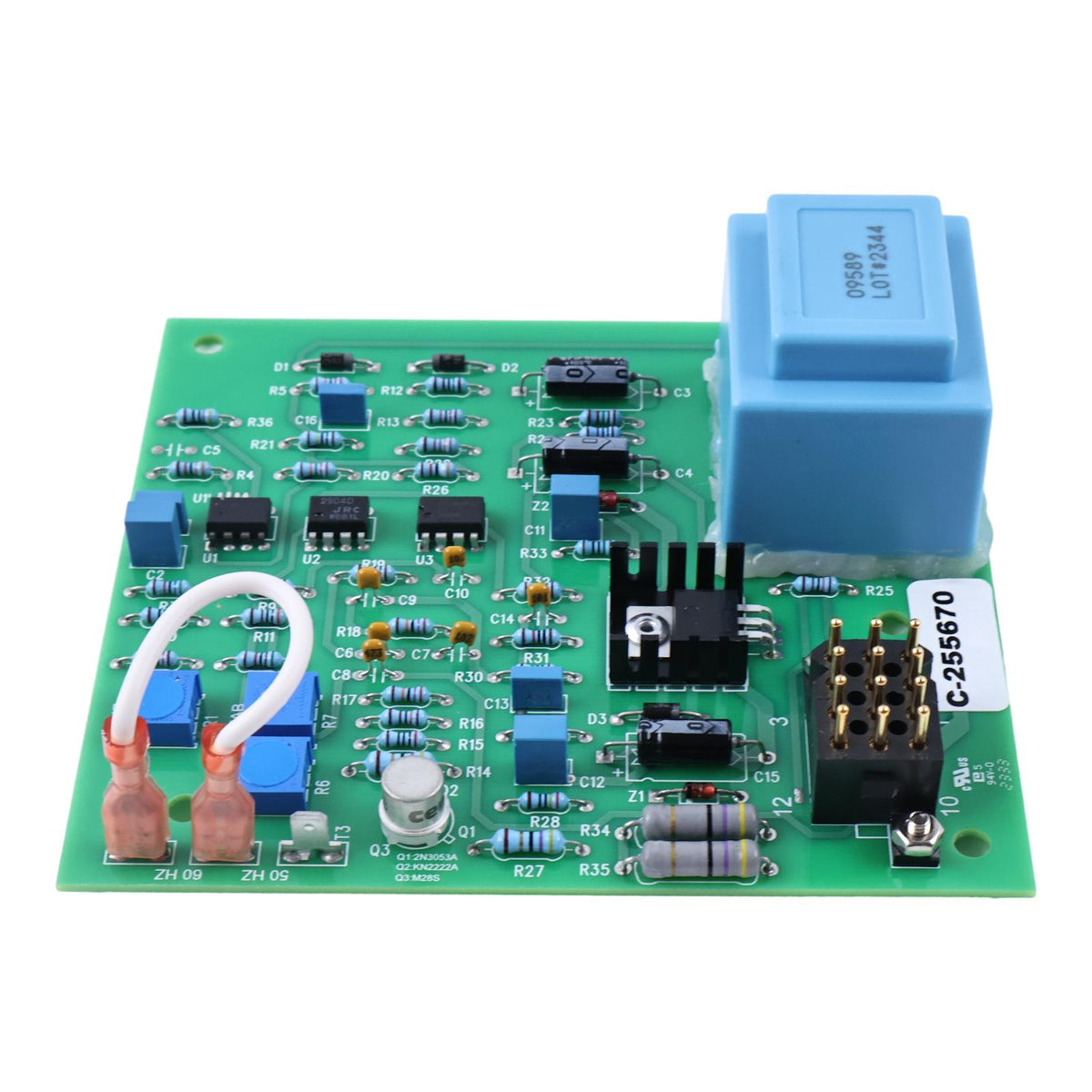

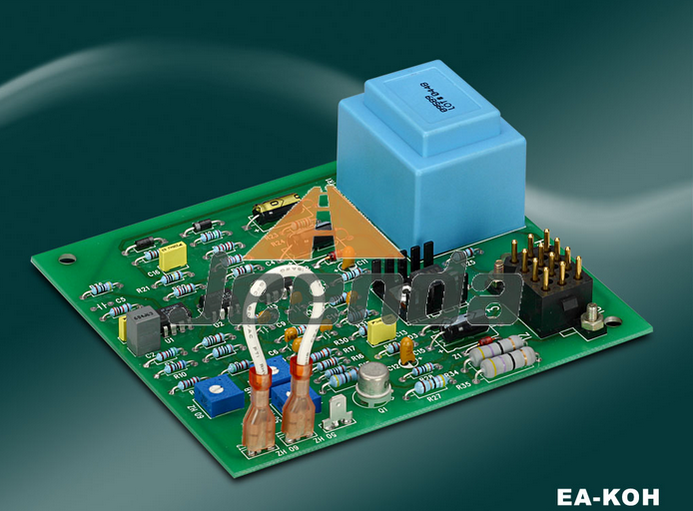

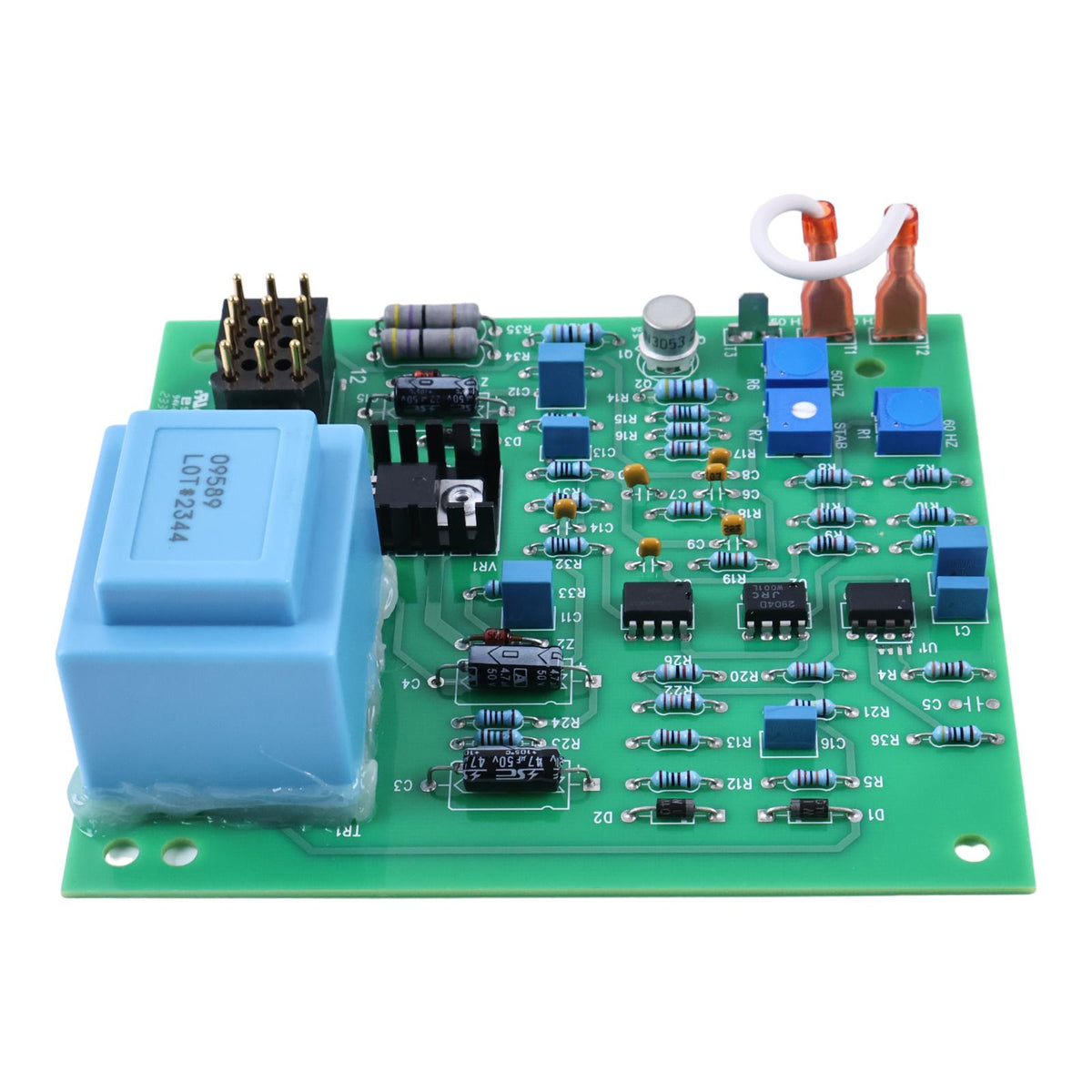

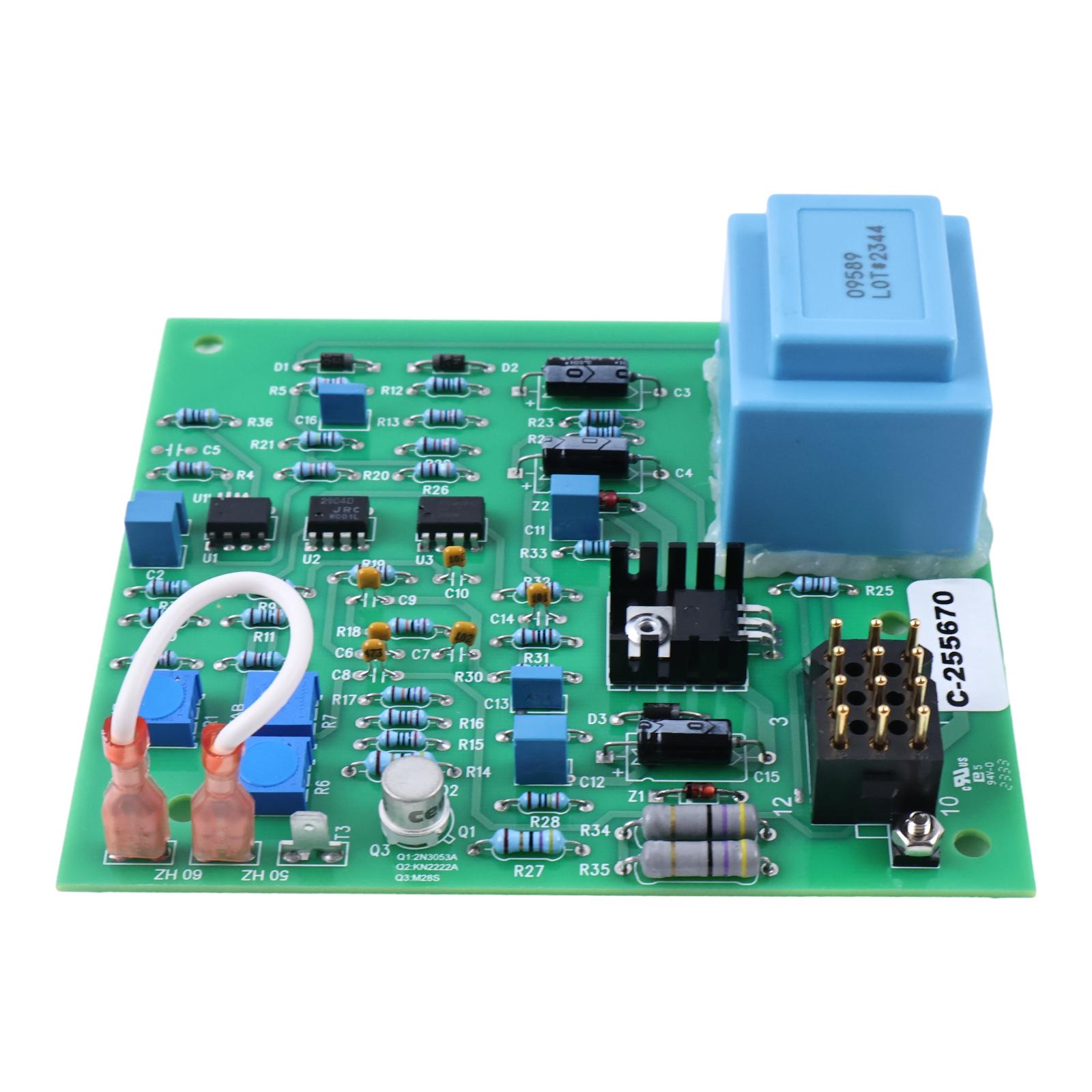

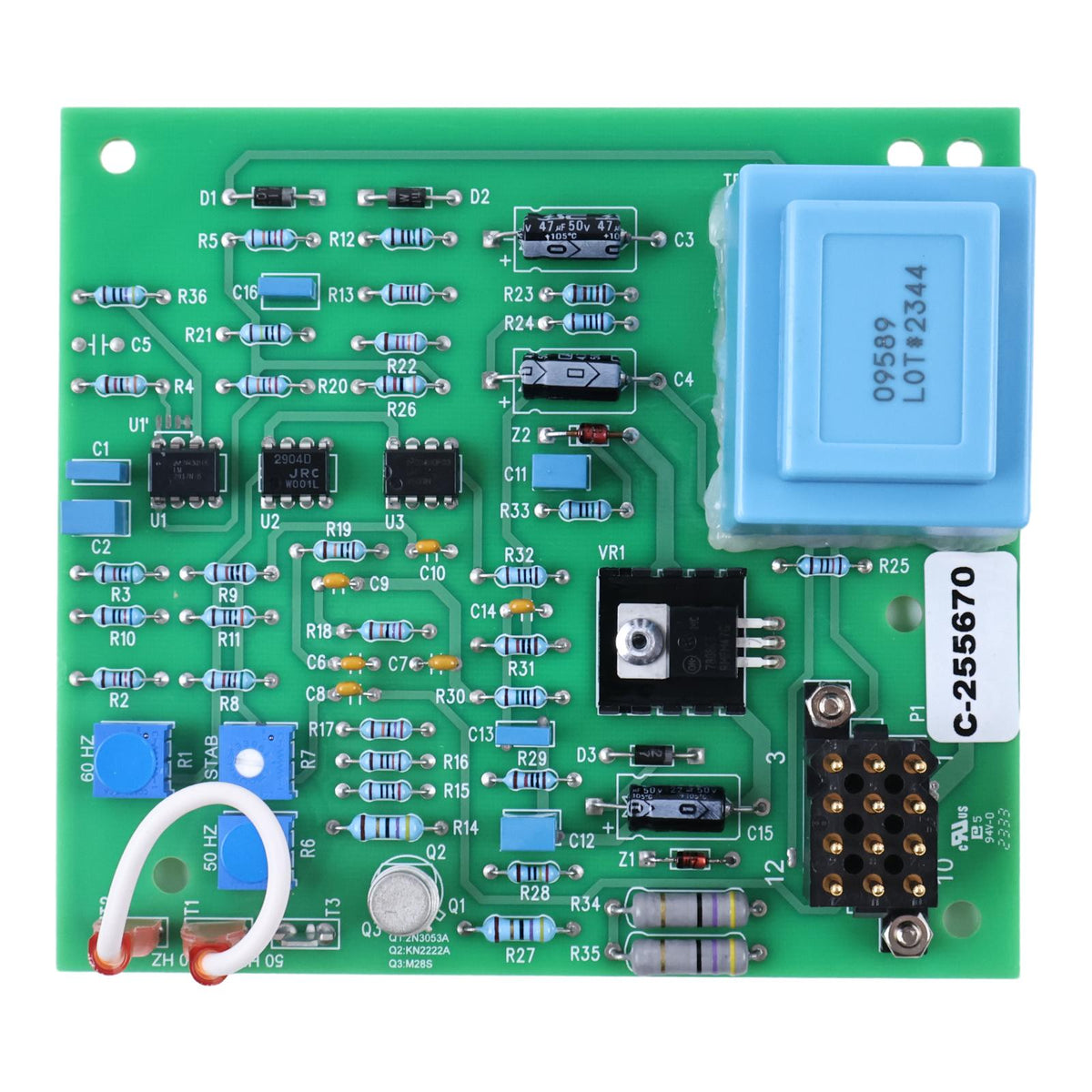

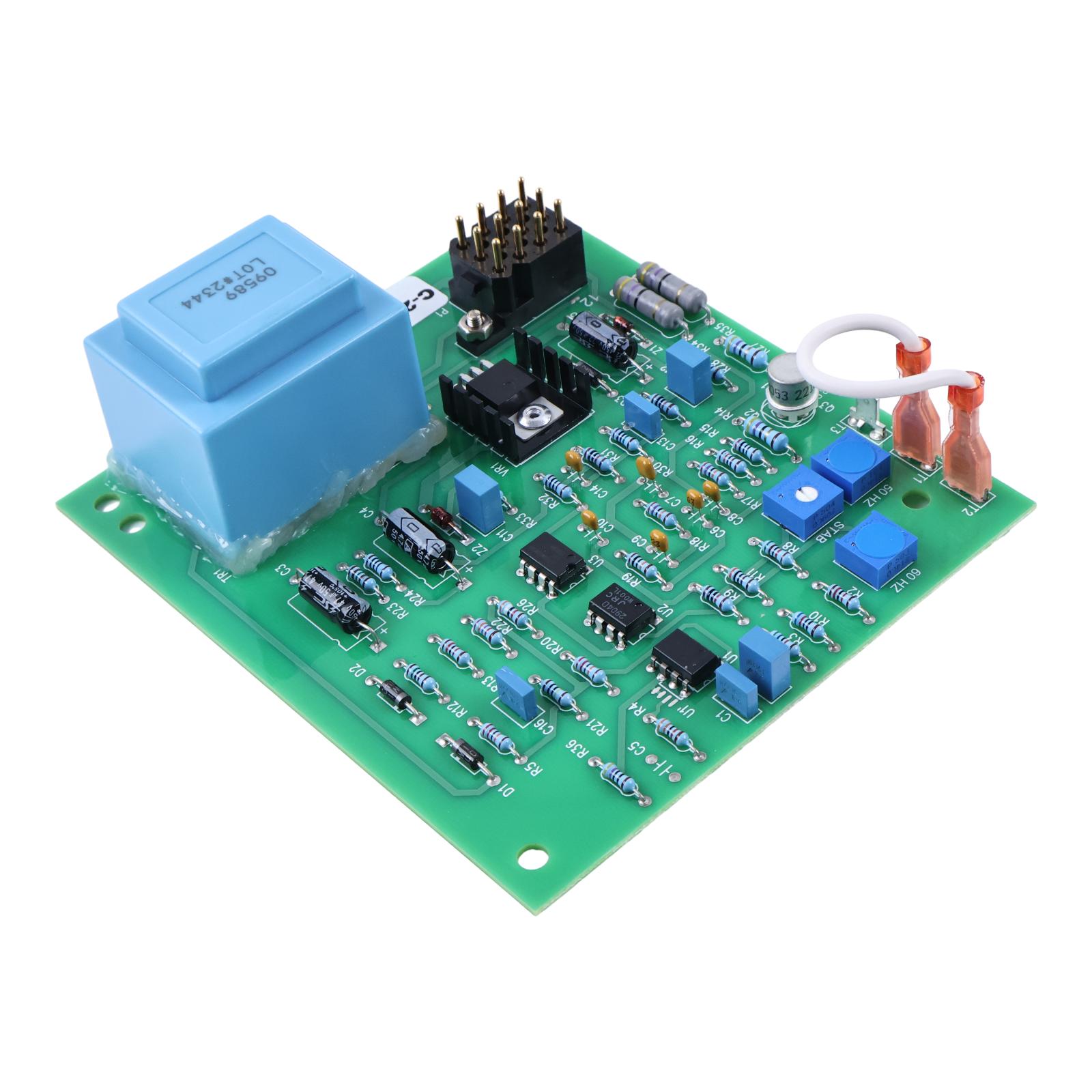

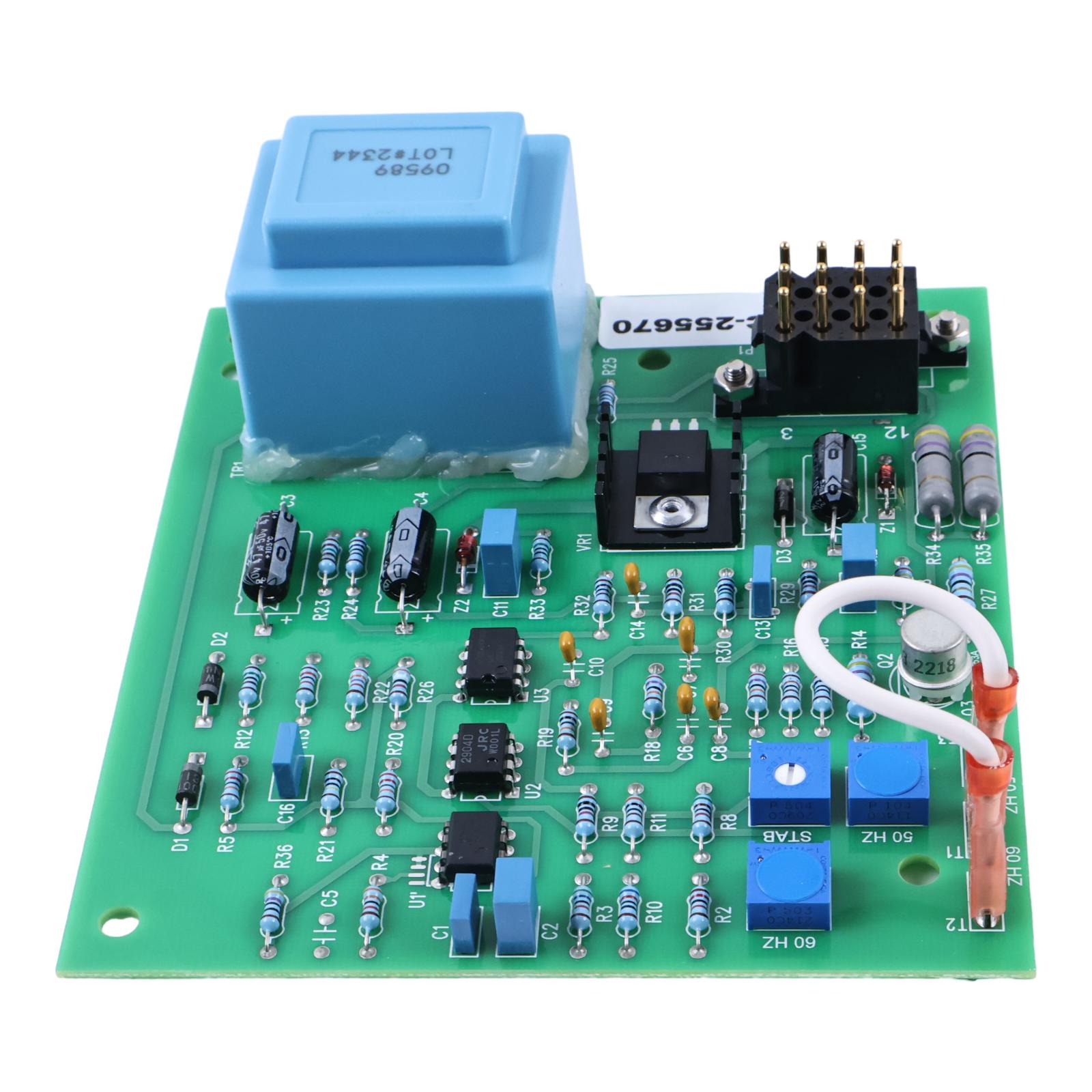

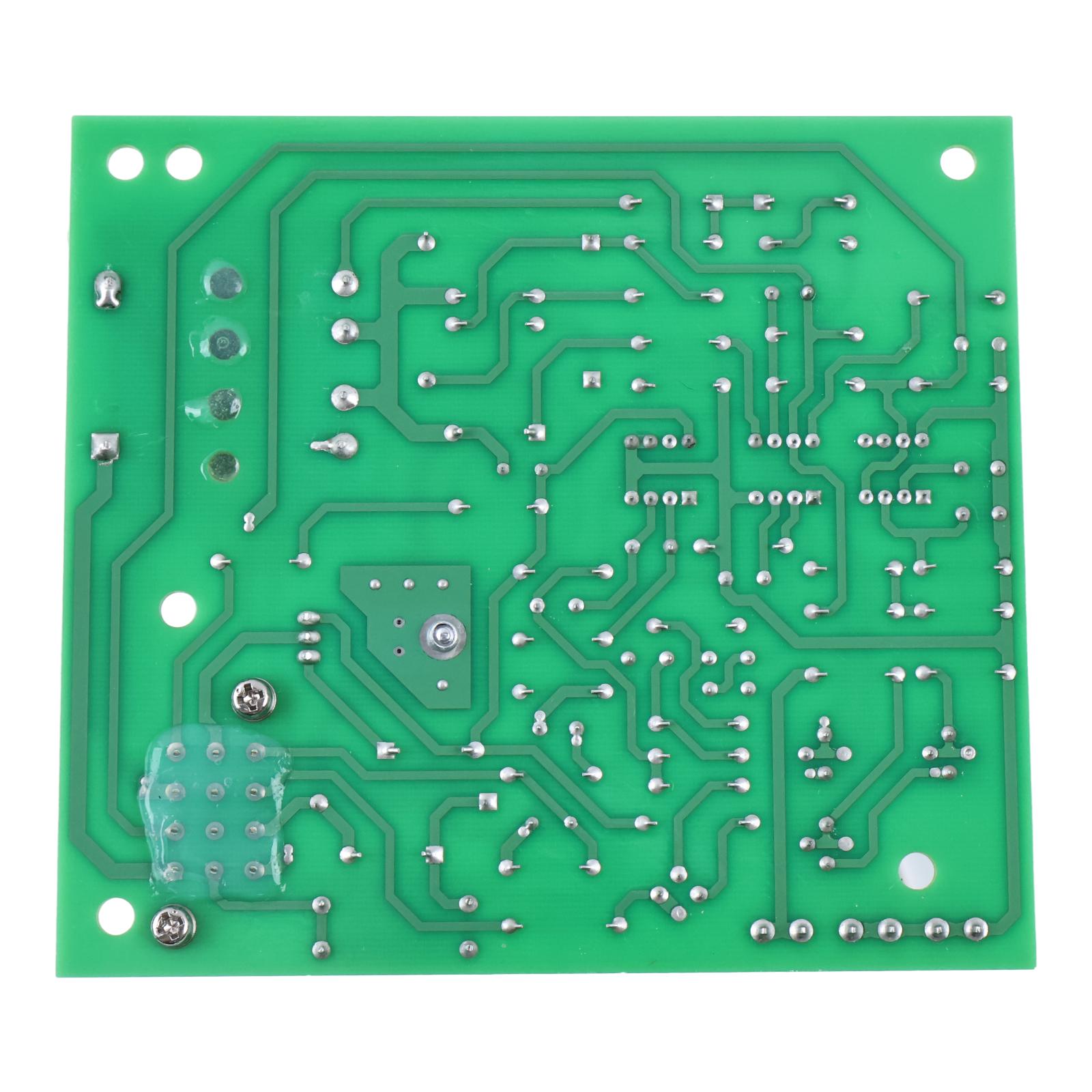

Automatic Voltage Regulator AVR EA-KON for Kutai

Sensing Input

Voltage 220 Vac 1 phase 2 wire
Frequency 50/60 Hz select by jumper

Power Input

Voltage 10~26VDC

Output

Current 20mA

Volts Regulation

< ¡À1% (with 4% engine governing)

External Volts Adjustment

 ¡À10% with 1K ohm 1 watt trimmer

Unit Power Dissipation

Max. 2 watts

Thermal Drift

0.05% per¡ãC change in AVR ambient

Under Frequency? Protection
(Factory Setting)

60Hz system presets knee point at 55Hz
50Hz system presets knee point at 45Hz

Environment

Operation Temperature -40~65¡ãC
Storage Temperature -40~80¡ãC
Relative Humidity Max. 95%
 Vibration 3.3G @ 100~2KHz

AVR Controls Functions

STAB : Stability Adjustment

Dimensions

127.2 x 141.5 x 39.0 mm
