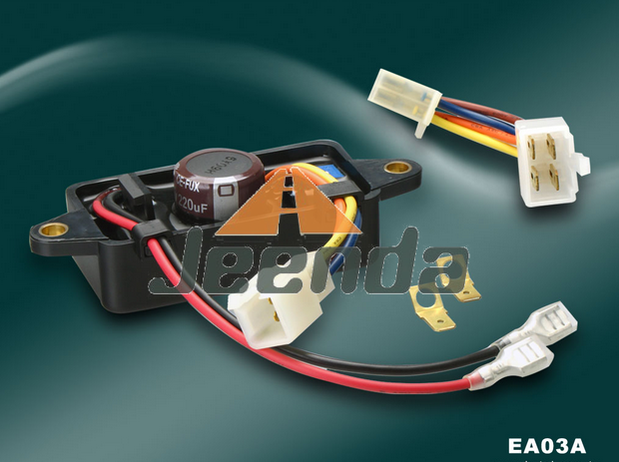

Automatic Voltage Regulator AVR EA03A for Kutai

Sensing Input

Voltage 18~22VAC 1 phase 2 wire

Power Input

Voltage 60~90 VAC 1 phase 2 wire

Excitation Output

Voltage 5~85VDC
Current Continuous 3A Intermittent 4A for 60 sec.
Resistance Min. 25 ohm

Voltage Regulation

< ¡À2% (within 4% engine governing)

Build Up Voltage

Residual Voltage at AVR Terminal > 5 VAC

Voltage Adjust Range

110 VAC ¡À15%

Thermal Drift

0.05% per¡ãC change in AVR ambient

Environment

Operation Temperature -40~60¡ãC
Storage Temperature -40~85¡ãC
Relative Humidity Max. 90%
Vibration 1.5G @ 5~30Hz / 5.0G @ 30~500KHz

 Dimensions

113.0 x 41.0 x 32.0 mm
