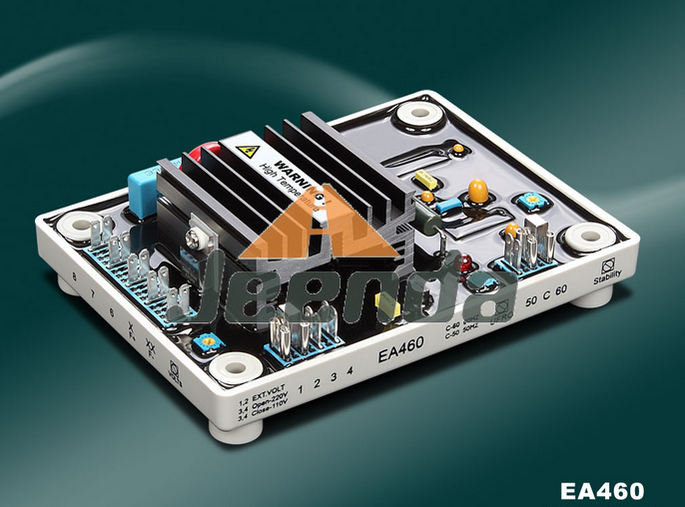

Automatic Voltage Regulator AVR EA460 for Kutai

Sensing Input

Voltage 120(95~132)/240(190~264)VAC 1 phase 2 wire jumper ?selectable?Frequency 50/60 Hz jumper selectable

Output

Voltage Max. 90 Vdc @ 207VAC input
Current Continuous 4A Intermittent 10A for 10 sec.
Resistance Min. 15 ohm

Voltage Regulation

< ¡À1% (with 4% engine governing)

Build Up Voltage

Residual volts at AVR terminal > 5 VAC

Soft Start Ramp Time

2 sec.

External Volts Adjustment

¡À7% with 1K ohm 1 watt trimmer

Unit Power Dissipation

Max. 10 watts

Thermal Drift

0.05% per¡ãC change in AVR ambient

Under Frequency Protection
(Factory Setting)

Set point 95%Hz
Slope 170% down to 30Hz

Environment

Operation Temperature -40~70¡ãC
Storage Temperature -40~85¡ãC
Relative Humidity Max. 95%
Vibration 3.3G @ 100~2KHz

AVR Controls Functions

VOLT : Voltage Adjustment
STAB : Stability Adjustment
UFRO : UFRO Knee Point Set

Dimensions

135.0 x 100.0 x 45.0 mm

Weight

243 g ¡À2%
