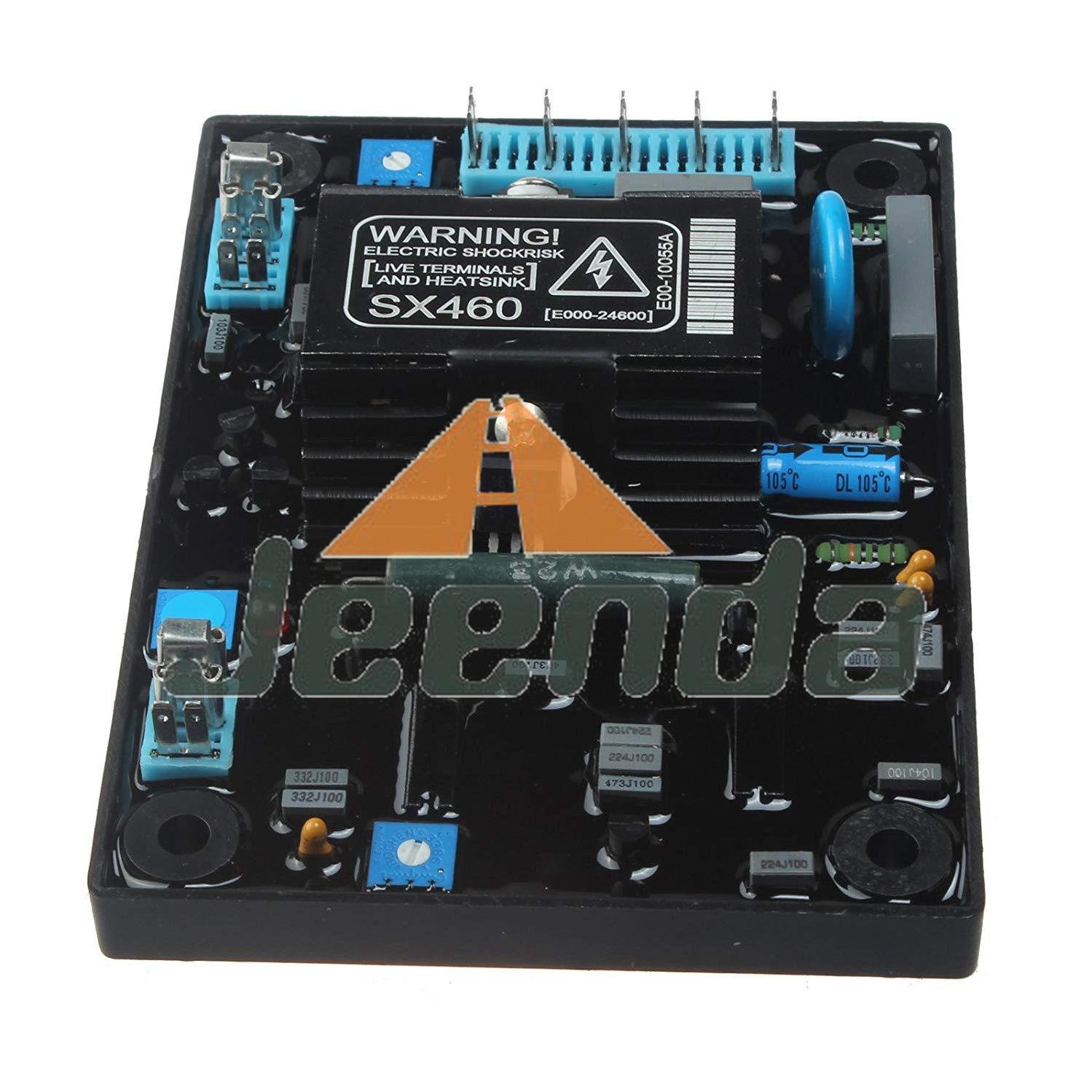

5-Terminal Automatic Voltage Regulator Control Moudle AVR SX460 Fits Generator Genset

$30.00
SKU HW01510001WIN

INPUT
Voltage: Jumper selectable, 95-132V ac or,190-264V ac
Frequency: 50-60 Hz nominal
Phase: 1

OUTPUT
Voltage: max 90V dc at 207V ac input
Current: continuous 4 A dc, Intermittent 6 A for 10 secs
Resistance: 15 ohms minimum

REGULATION
+/- 1.0% (see note 1)

THERMAL DRIFT
0.05% per deg. C change in AVR ambient (note 2)

TYPICAL SYSTEM RESPONSE
AVR response 20 ms
Filed current to 90% 80 ms
Machine Volts to 97% 300 ms

EXTERNAL VOLTAGE ADJUSTMENT
+/-10% with 1 k ohm 1 watt trimmer (see note 3)

UNDER FREQUENCY PROTECTION
Set point: 95% Hz (see note 4)
Slope: 170% down to 30 Hz

UNIT POWER DISSIPATION
10 watts maximum

BUILD UP VOLTAGE
4 Volts @ AVR terminals

ENVIRONMENTAL
Vibration: 20-100 Hz 50mm/sec, 100Hz ¡§C 2kHz 3.3g
Operating temperature: -40 to +70¡ãC
Relative Humidity 0-70¡ãC: 95% (see note 5)
Storage temperature: -55 to +80¡ãC

NOTES
1. With 4% engine governing
2. After 10 minutes.
3. Applies to Mod status F onwards. Generator de-rate may
apply. Check with factory.
4. Factory set, semi-sealed, jumper selectable
5. Non condensing.
