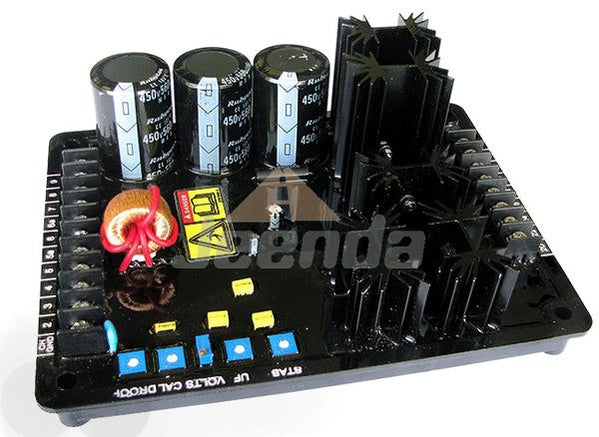

Free Shipping Automatic Voltage Regulator AVR 202-8634 2028634 for Caterpillar CAT 309-1019 VR3 VR4 VR6 AVC63-12B1
by Leroy Somer
Save 31%
Original Price
$259.00
Current Price
$180.00
SKU Jeenda022375
- Caterpillar model VR6 (CAT 309-1019 or kit # 365-2076)
- Cat VR3 and Cat VR4 (Now obsolete and replaced by VR6)
- Leroy Somer 202-8634 or 2028634
- Basler AVC63-12B1
- *KATO Engineering Model K65-12B (Part # 810-35334-00)
Specifications:
Output Power (with 240 Vac Input)
- 12 Adc @ 65 Vdc maximum continuous
- 25 Adc @ 125 Vdc forcing for 10 seconds
AC Input Power :
- 100 to 280 Vac, single-phase 50 to 400 Hz
- or 63 to 105 Vac; three phase, 50 to 400 Hz,
- 1092 VA maximum continuous burden
AC Sensing Voltage:180 to 280 Vac, 50/60 Hz; single or three phase
External Voltage Adjust Rheostat:10k ohm, 2W, potentiometer
Regulation accuracy:+/- 0.5% Average responding
Voltage Drift:+/- 1% voltage variation for a 40°C (104 °F) change
Response Time:< 4 milliseconds
Frequency Compensation:
- 1 or 2 V/Hz jumper selectable with knee
- adjustable from 45 Hz to 65 Hz
EMI Suppression: Internal Filter
Voltage Build-Up:Internal provisions for automatic voltage build-up frmo generator residual voltages as low as 6 Vac
Over Excitation Shutdown:
- Over excitation protection starts timing at 90Vdc +/- 5% and takes the output to zero in greater than 30 seconds. The output can be 125 Vdc for greater than 10 seconds.
Droop:1 A or 5 A, < 10 VA, adjustable from 0 to 10% at rated input current, 0.8 power factor.
Packaging:
Package Weight: 1.5kg
Package Size: 24cm x 18cm x 9cm (9.45in x 7.09in x 3.54in)
