Free Shipping AVR for Marathon SE350 50HZ/60HZ Automatic Voltage Regulator
Free Shipping AVR for Marathon SE350 50HZ/60HZ Automatic Voltage Regulator

Free Shipping AVR for Marathon SE350 50HZ/60HZ Automatic Voltage Regulator

by Marathon
$59.00
SKU HW00545001

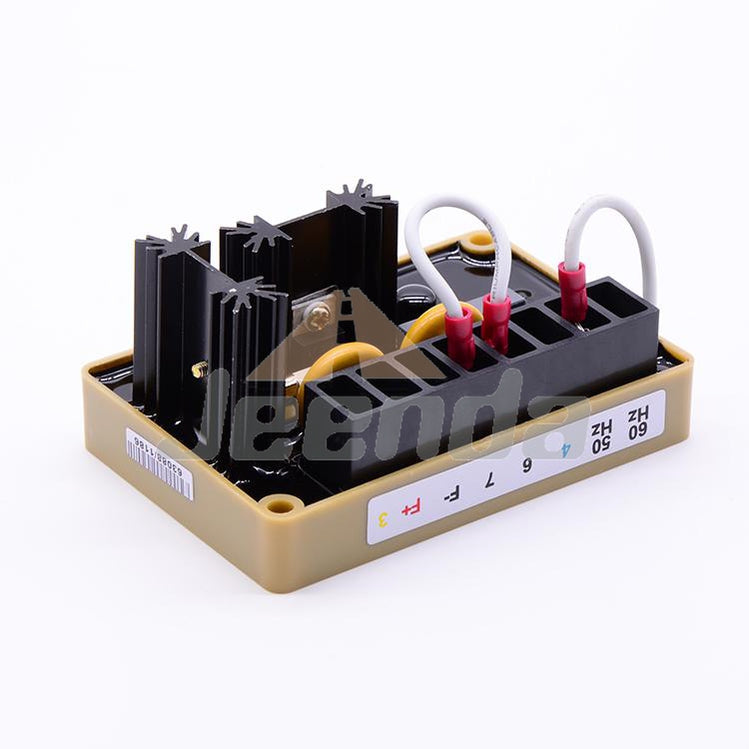

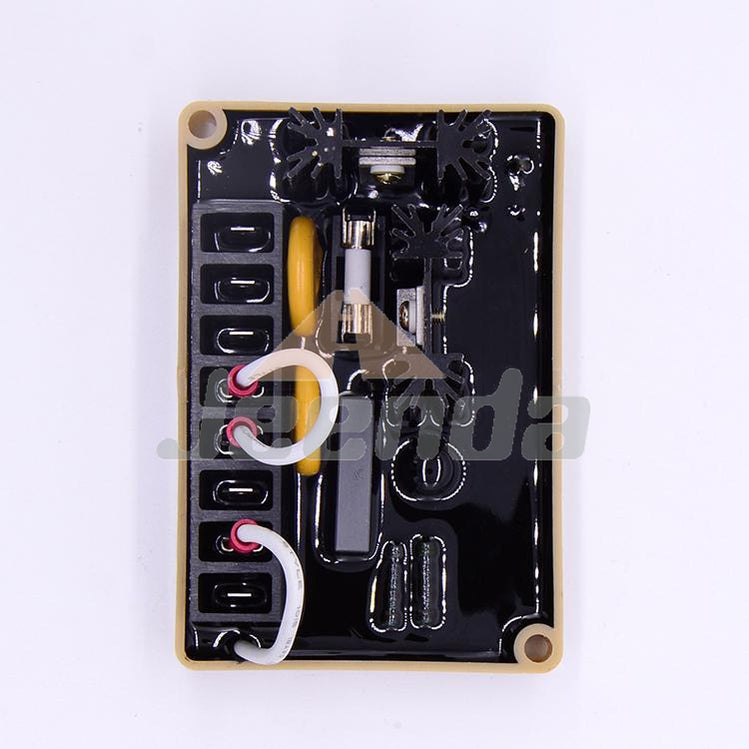

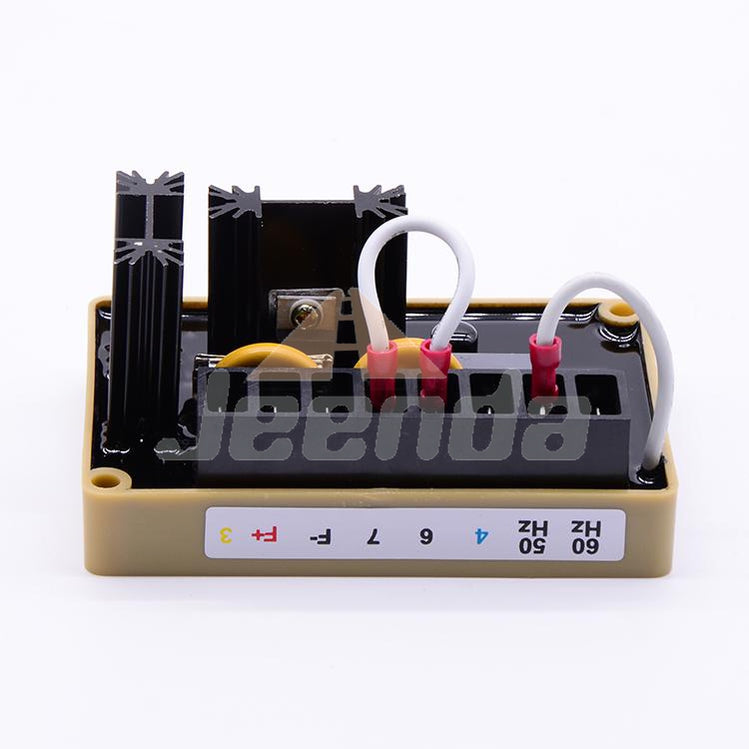

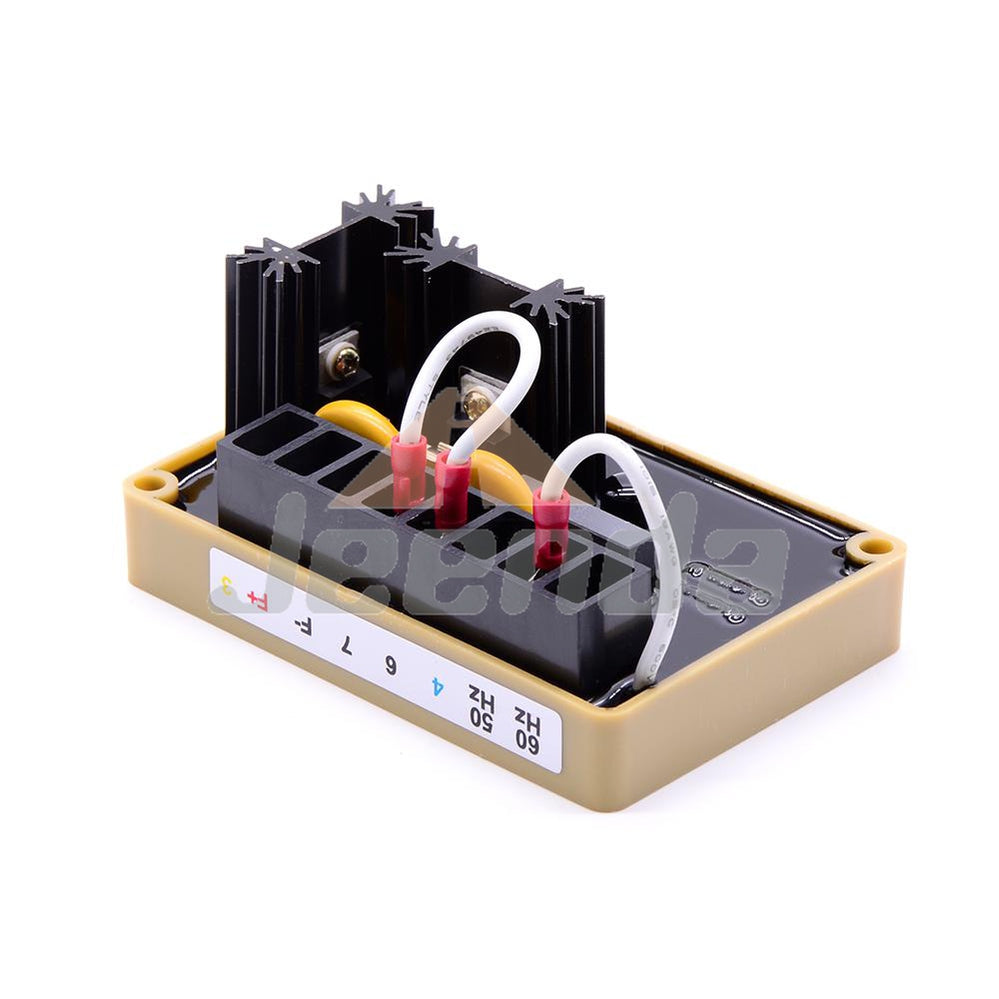

SE350 Voltage regulator is an encapsulated electronic voltage regulator which controls the output of a brushless AC generator by regulating the current into the exciter field.

  • Automatic Voltage Regulator SE350
  • Sensing & Power Input  190-240 Vac
  • Burden 500VA
  • Output Power-Continuous 73 Vda at 3.5 Adc(255w)
  • Output Power-Forcing(240 Vac Input Power) 105 Vdc at 5 Adc(525w)
  • Regulation 1.00%
  • Remote Voltage Adjustment Range ±10% with 2000 ohm rheostat
  • ±5% with 1000 ohm rheostat
  • Frequency Compensation Adjustable
  • Roll off ferquency  54-61 Hz for 60 Hz
  • 45-51 Hz for 50 Hz
  • Operation Weight6.5 oz
  • Power Dissipation  8 watts maximum
