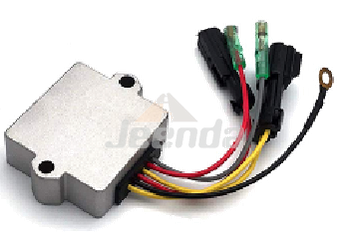

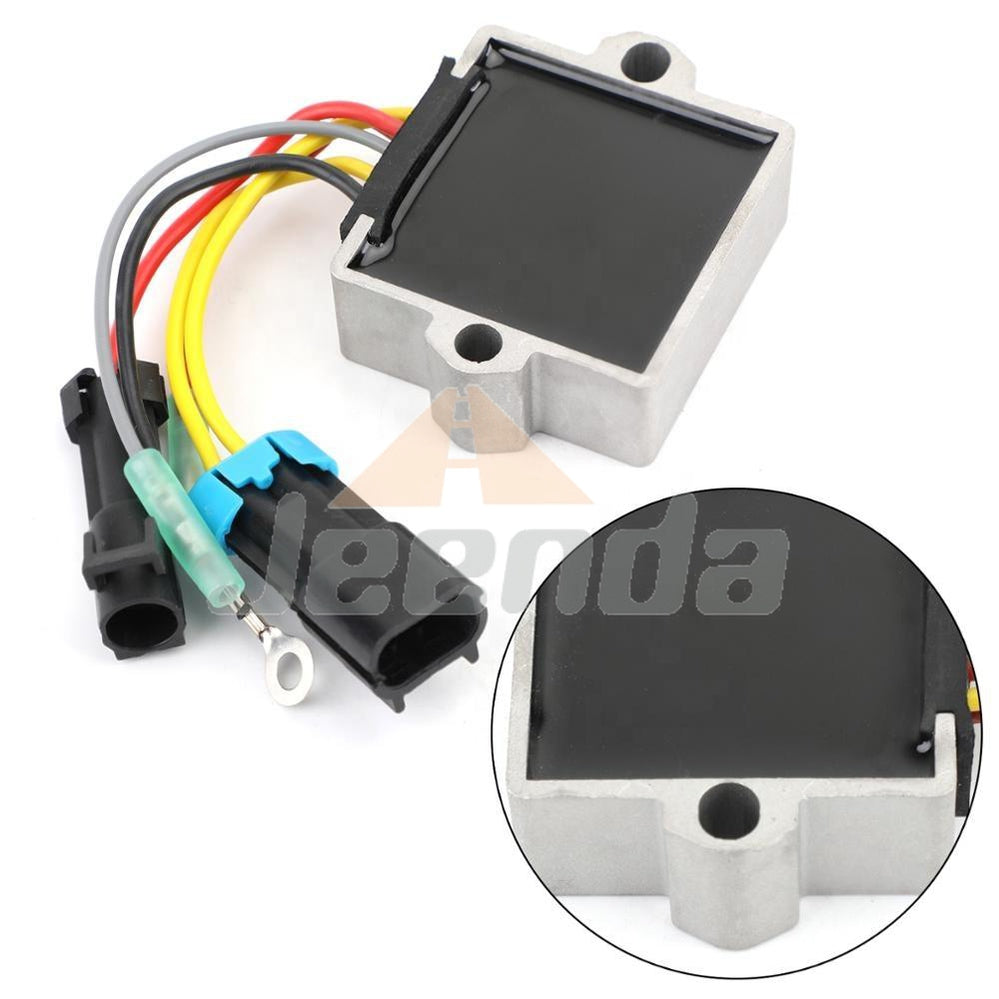

Free Shipping Voltage Regulator Rectifier 883072T2 854515T2 893640-002 883071T1 with 6 Wire for Mercury 25 40 50 60 135 160 150 175HP

Weight： 300g

Terminal ID: Gray wire TACH/ Red wire Sense/ Red wire B+/ Black wire B-/ Yellow wires stator 1 & 2

Part Number：Mercury 883072T2, 854515T2, 893640-002, 883071T1
Application:

• 25 HP (4 Stroke, Elec. Start) 2 Cylinder Serial 0G760300 to 1B344298,
• 30 HP (4 Stroke Elec. Start) 3 Cylinder Serial 0T178500 to 0T178499,
• 30 HP (4 Stroke EFI) 3 Cylinder Serial 0T409000 to 1B344298,
• 40 HP (4 Stroke, Elec. Start) 3 Cylinder Serial 0T178500 to 1B344298,
• 40 HP (4 Stroke, Elec. Start) 4 Cylinder Serial 0T178500 to 0T598999,
• 50 HP (4 Stroke, Elec. Start) 4 Cylinder Serial 0T178500 to 0T598999,
• 50 HP (4 Stroke, EFI) 4 Cylinder Serial 0T409000 to 1C050252,
• 60 HP (4 Stroke, Elec. Start) 4 Cylinder Serial 0T178500 to 0T598999,
• 50 HP (4 Stroke, EFI) 4 Cylinder Serial 0T409000 to 1C050252,
• 135 HP 6 Cylinder Serial 0G960500 and Up,
• 140 Jet 6 Cylinder Serial 0G960500 and Up,
• 150 HP (2 Stroke) 6 Cylinder Serial 0G960500 to 0T408999,
• 175 HP (2 Stroke) 6 Cylinder Serial 0G960500 to 0T408999,
• 200 HP (2 Stroke) 6 Cylinder Serial 0G960500 to 0T408999,
• 200 HP (EFI) 6 Cylinder Serial 0G960500 to 0T408999,
• 240 HP (Sport Jet) 6 Cylinder Serial 0E373939 to 0E406399.
