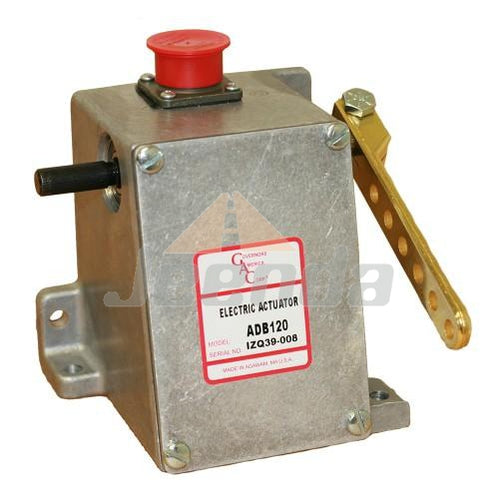

GAC ADB120 Universal Actuators 120 Series - 12 & 24 VDC

120 Series – Universal

The 120 SERIES electric actuator is a rotary output, linear torque, proportional servo. This electromechanical actuator is typically used as an engine fuel control positioning device. An internal spring provides fail-safe operation by forcing the actuator to the fuel shut off position when the actuator is de-energized. This design combines fast operation, multi-voltage usage, wider rotation angle, and proven reliability. The actuators can operate directly on 12, 24, or 32-volt battery supplies.

Features:

• Rotary output linear torque proportional servo
• Small, low cost, low friction model
• 1.0 lb-ft of torque
• Suitable for rotary or small inline fuel pumps of small carburetors
• Ideal for fuel systems on engines up to 150 HP

*Rotary Actuators

*Sized for Engines up to 150hp

*1.0lb-ft Torque

*For small Inline Fuel Pumps or Carburetors

*ACB120 ~ Multi VDC/Military Connector/Sand-cast Housing

*ADB120 ~ Multi VDC/Military Connector/Die-Cast Housing

*ADB120E4 ~ Multi VDC/ Military Connector/Includes Metering Valve and Check Valve

*ADC1205-12 or -24 ~ 12 or 24 VDC/ Commercial Connector/Serrated Shaft
