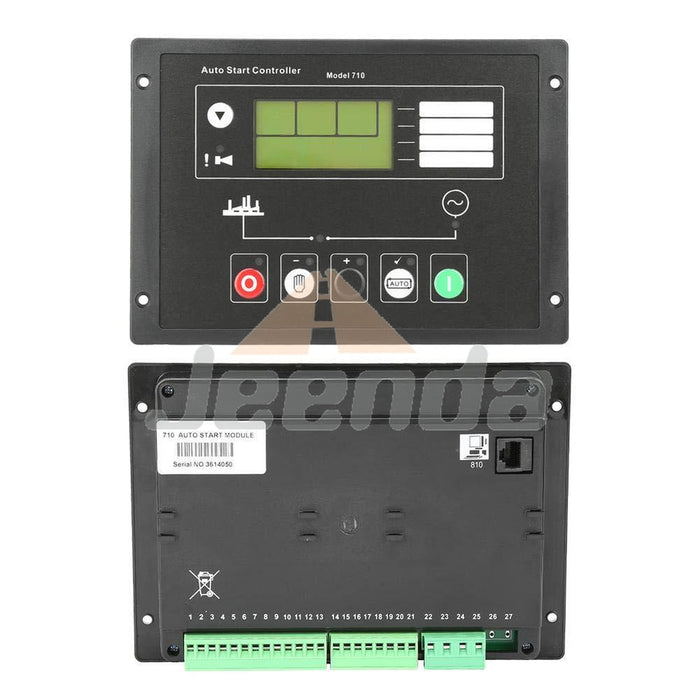

Free Shipping Deep Sea Controller DSE710 Module

Save 30%
Original Price $129.00
Current Price $90.00
SKU HW00515017
Specific Data:
  • 1. Automatic Mains Supply Monitoring
  • 2. Emergency Stop Control
  • 3. Automatic Control Of Overcrank
  • 4. Local Manual Start/Stop
  • 5. Remote Automatic Start/Stop
  • 6. Start Motor Automatic Exit Control
  • 7. Preheat Control Of Multiple Modes
  • 8. Parking Power Supply Control
  • 9. Dual Power Switch Switching Control
  • 10. Start Delay Control
Product Protection Function:
  • Lubricating Oil Pressure Low Protection
  • Charging Machine Charging Failure
  • Generator Set Emergency Stop
  • Generator Set Public Alarm
  • Generator Overvoltage, Undervoltage, Overload Protection, Cooling Water Temperature High Protection
  • Engine Overclocking /Low-Frequency Protection
  • Engine Stop / Start Failure

Specification:

  • ModelDSE710
  • DC SupplyContinuous Voltage Rating
  • 8 V to 35 V continuous
  • Maximum Operating Current
  • 180 mA at 12 V; 190 mA at 24 V
  • Maximum Standby Current
  • 145 mA at 12 V; 150 mA at 24 V
  • OutputAuxiliary
  • Solid state
  • 2.4A DC at supply voltage
  • Fuel/Start
  • Solid state
  • 3.4 A DC at supply voltage
  • Generator C.T.
  • 5 A secondary 0.5 VAGenerator Inpu t Range
  • 35 V(L-N) to 333 V AC(L-N) absolute maximum
  • 50 Hz - 60 Hz (min 15 V AC)
