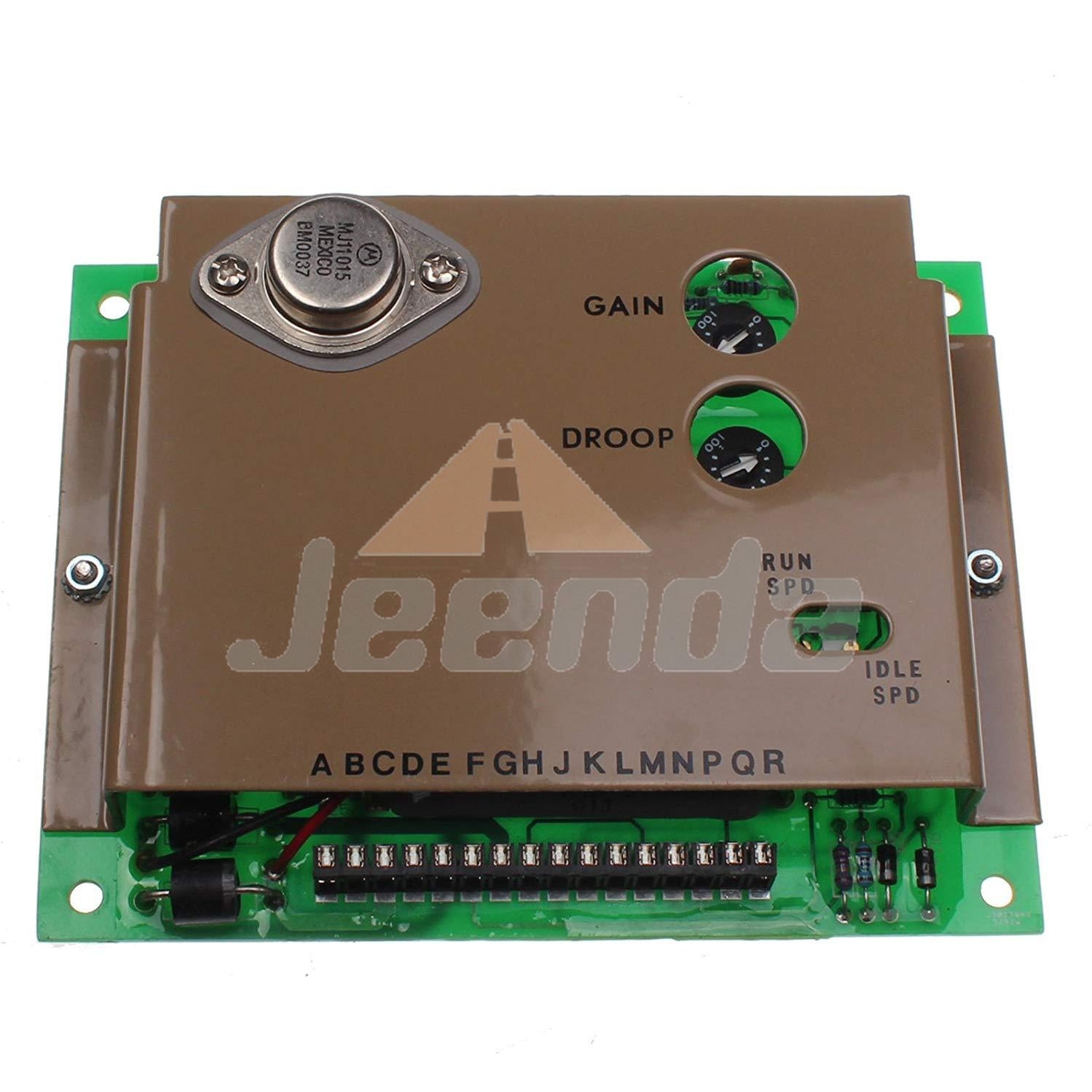

Generator Genset Speed Controller Governor EFC 3044195 for Cummins
Generator Genset Speed Controller Governor EFC 3044195 for Cummins
Regular price
$100.00 USD
Regular price
$100.00 USD
Sale price
$100.00 USD
Shipping calculated at checkout.
Input
- Supply: 24 VDC ±20%
- Polarity: Negative Ground (Case Isolated)
- Power Consumption: 40 MA
- Maximum Actuator Current: 4.5 A continuous
- Speed Sensor Signal: 2-120 Volts RMS
Performance
- Isochronous Operation/Steady State Stability: ±0.25% or better
- Speed Range/Governor: 1K to 6.5K Hz continuous
- Speed Drift with Temperature: ±1 Max
- Idle Regulation: 260±20 Hz
- Droop Adj. Max.: 400 Hz., ±75Hz. Per 1.0A change
- Speed Trim Range: ±200 Hz with 1 ohm connected
- Remote Variable Speed Range: 25 to 100% of rated speed
- Impedance: 1m ohms
- Ambient Operating Temperature Range: -40 to +85 Deg. C
- Relative Humidity: Up to 95%
- All Surface Finishes: Fungus Proof and Corrosion Resitant
- Reliability: Vibration: 20 to 100 Hz. 500mm/sec
Package List:
- 1 x 3044195 Generator Parts Speed Controller
