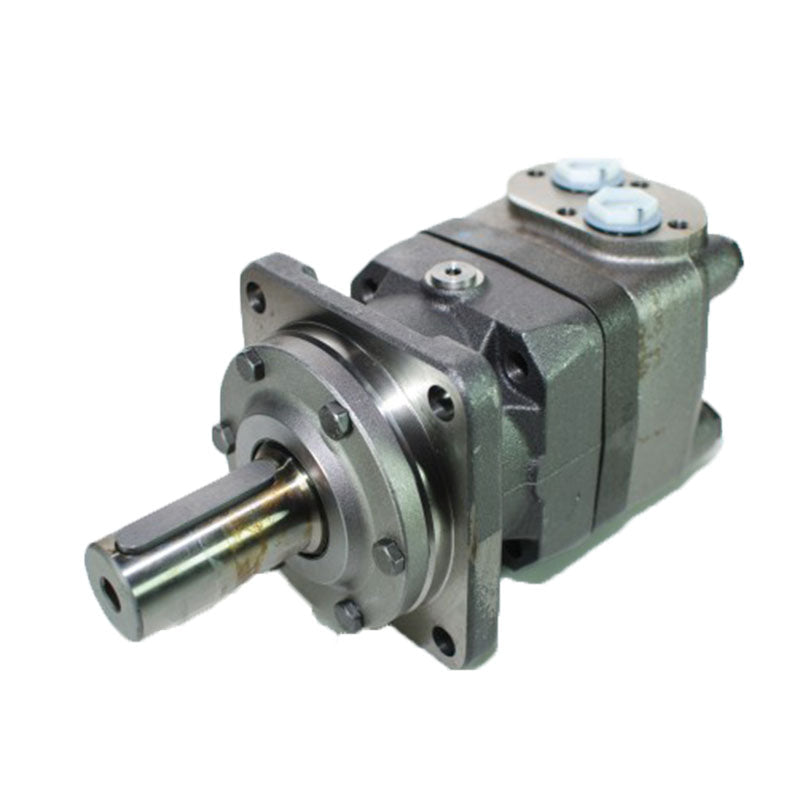

Hydraulic Motor OMT500 151B2055 OMT500-151B2055 151B-2055

Part Number: 151B2055, OMT500-151B2055, 151B-2055

Motorseries: O-Series

Basic Motor: OMT

Displacement: 500

Mounting Thread Dimension: None

Shaft Style: Cylindrical

Shaft Size: 1 1/2 inch ; 3/8-16 UNC tap

Shaft Key: 3/8 x 3/8 x 2 1/4 inch

Port Size: Side port

Port Dimension: 1 1/16 - 12 UN

Drain Port Style: Standard

Drain port Dimension: 9/16 - 18 UNF

Dust Seal: Standard

Shaft Seal: NBR - Standard

Front bearing: Tapered roller bearing

Rear bearing: Tapered roller bearing

Gear wheel set: Standard
