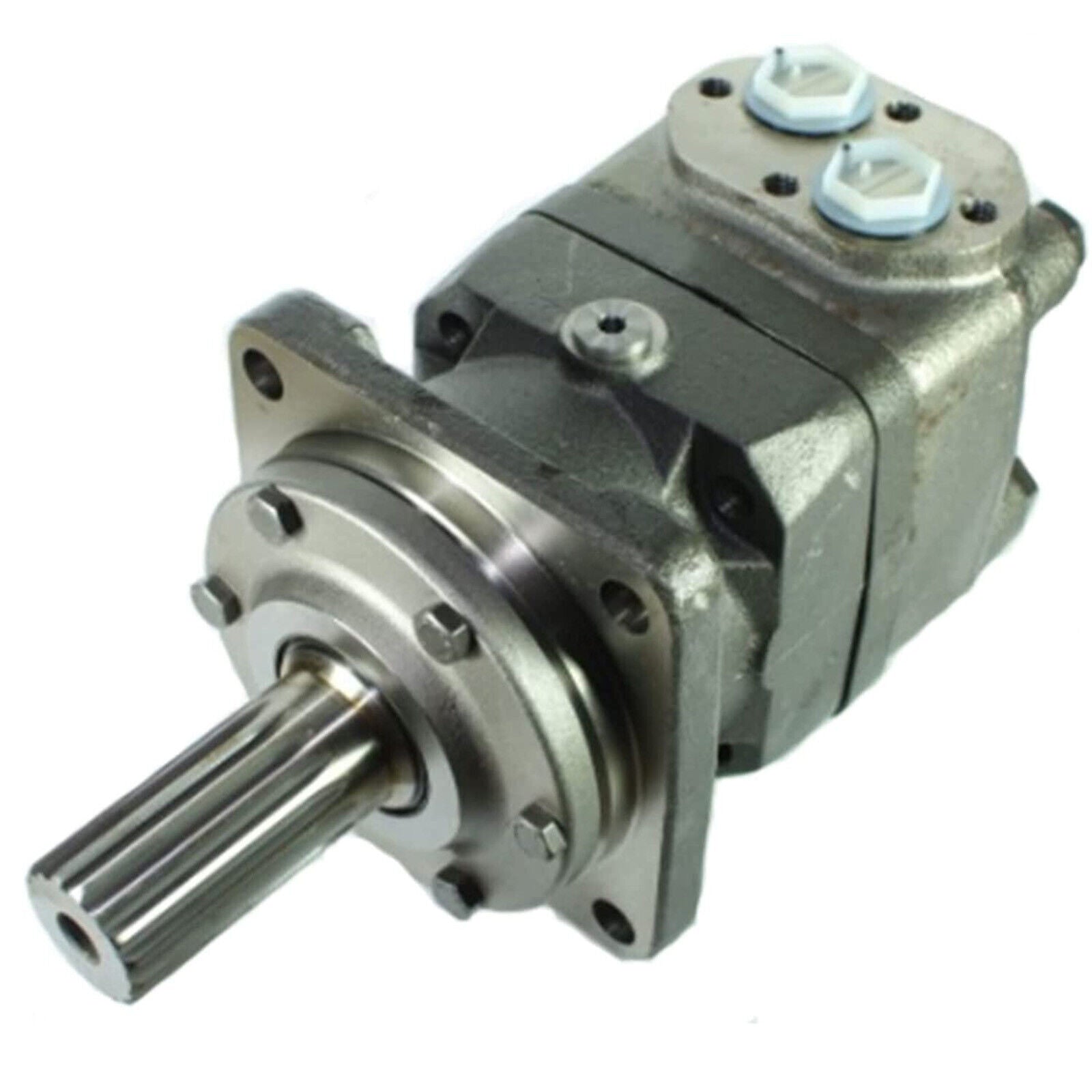

Hydraulic Motor OMT400 151B2060 OMT400-151B2060 151B-2060

Part Number: 151B2060, OMT400-151B2060, 151B-2060

Motorseries: O-Series

Basic Motor: OMT

Displacement: 400

Mounting Thread Dimension: None

Shaft Style: Splined - 17T

Shaft Size: 1 1/2 inch ; 3/8-16 UNC tap

Shaft Key: None

Port Size: Side port

Port Dimension: 1 1/16 - 12 UN

Drain Port Style: Standard

Drain port Dimension: 9/16 - 18 UNF

Dust Seal: Standard

Shaft Seal: NBR - Standard

Front bearing: Tapered roller bearing

Rear bearing: Tapered roller bearing

Gear wheel set: Standard
