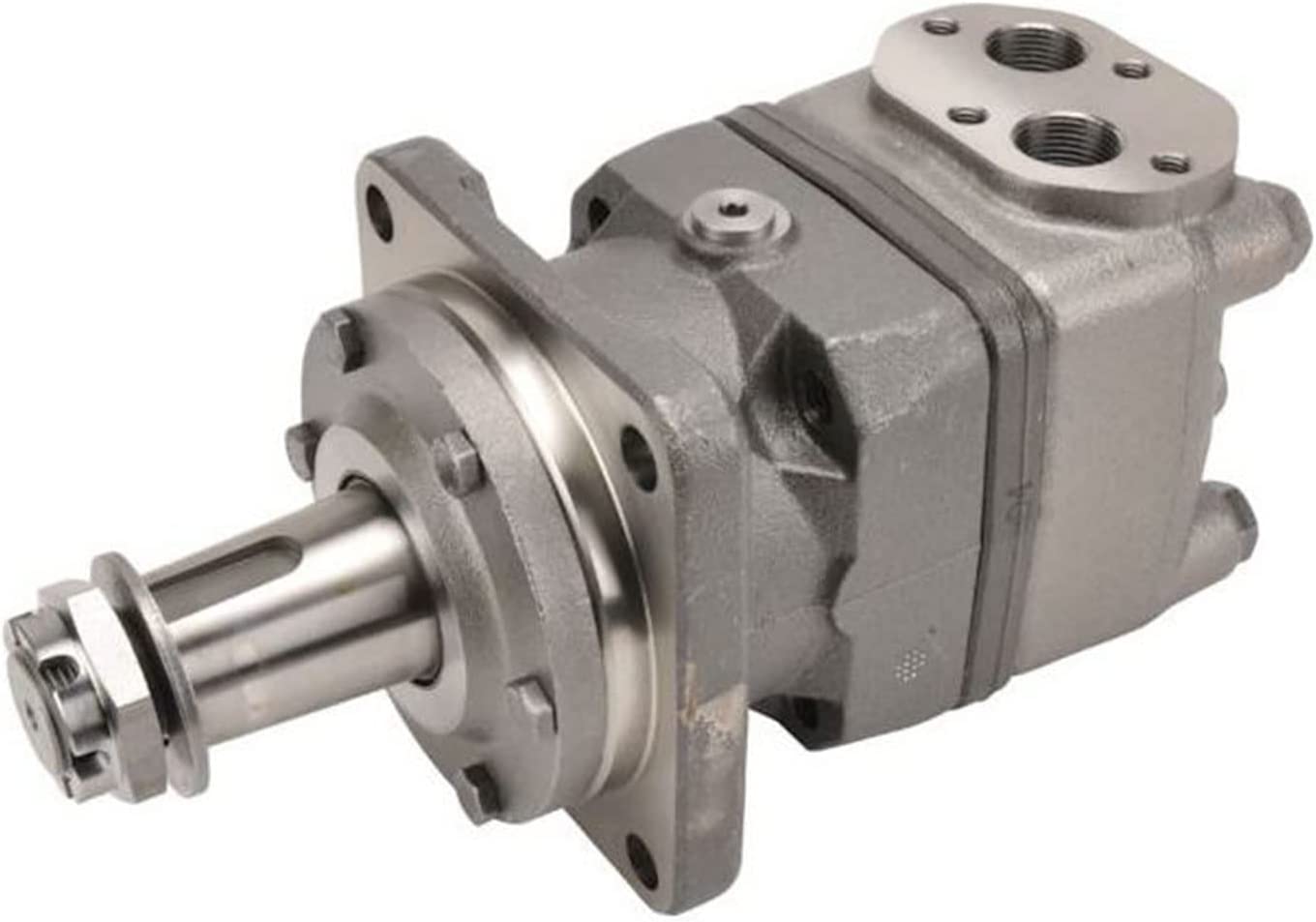

Hydraulic Motor OMT500 151B2067 OMT500-151B2067 151B-2067

Part Number: 151B2067, OMT500-151B2067, 151B-2067

Motorseries: O-Series

Basic Motor: OMT

Displacement: 500

Mounting Thread Dimension: None

Shaft Style: Tapered - Cone 1:8

Shaft Size: 1 3/4 inch tap

Shaft Key: 7/16 x 7/16 x 1 1/4 inch (B.S. 46)

Port Size: Side port

Port Dimension: 1 1/16 - 12 UN

Drain Port Style: Standard

Drain port Dimension: 9/16 - 18 UNF

Dust Seal: Standard

Shaft Seal: NBR - Standard

Front bearing: Tapered roller bearing

Rear bearing: Tapered roller bearing

Gear wheel set: Standard
