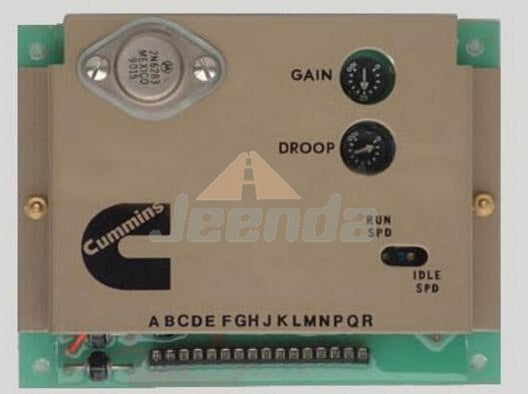

JEENDA Speed Controller EFC 4913988 for Cummins KTA50 Generator

Features

A. Low smoke displacement, soft noise
Meet the demand for environment protection imp rive people' s feeling.
B. Easily to start in cold environments, plateau, and WW pressure areas, especially for N-G-250kw and KG-300kw sets.
C. High ability to anti-disturbance stable operation due to the large power walkie-talkie·
D. The actuator can not be damaged in the case of a short circuit due to the output protector.
E. Diesel with water pump cam start with the wad, the range of round per minute cam be ± 600, that is 1000-1200 rpm.

Technical data:

•  Working Voltage: 24±8V DC
•  Output Current Range: 0-2.5A
•  Speed Sensor Signal: 0.5~120 V RMS
•  Operating Ambient Temperature Range:-40℃ ~ 85℃
•  Relative Humidity: <95%
•  Speed Range: 1K-7.5K Hz
•  Speed Trim Range: ± 200Hz
•  Gross Weight: 0.4KG
•  Package Size: 155*155*55mm
