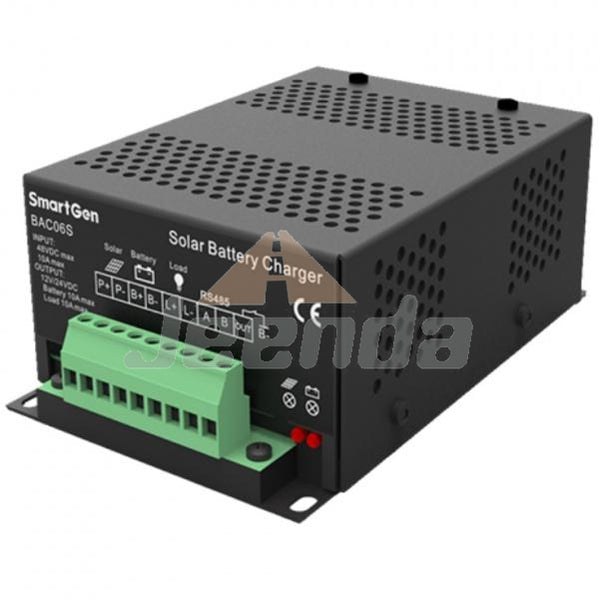

SmartGen BAC06S Solar Battery Charger
BAC06S solar battery charger adopts the latest switch power components and uses MPPT algorithm with perturbation incremental method, which is specially designed for charging lead-acid starting battery according to its property. It is suitable for lead-acid battery (12V/24V) long-term float charge by the sunlight.
PERFORMANCE AND CHARACTERISTICS:
- Suitable for 12V/24V battery charging use, users can adjust the output voltage and current as required;
- Using step-down BACK switch power supply structure, small size, lightweight and high efficiency;
- Innovative Maximum Power Point Tracking (MPPT) technology with high tracking efficiency, and effectively improve the amount of solar power generation.
- Excellent heat dissipation performance, natural convection air, high reliability and without noise;
- With optional battery charging mode and CVCC mode (Power Mode);
- 2-stage or 3-stage charging method can be chosen as required, and both methods are designed for charging the lead-acid battery according to its property to prevent battery overcharge and maximize the battery life;
- With short circuit and reverse connection protection;
- Load output port with over/under voltage and over current protections, if a solar voltage is too low (night), the load starts output; With charge fail or battery low voltage output port;
- RS485 communication port adopts MODBUS protocol. User can set parameters and remote monitor charging status via the communication interface.
