Jeenda SmartGen Charger BAC06A BAC2405 12V Power Supply Device

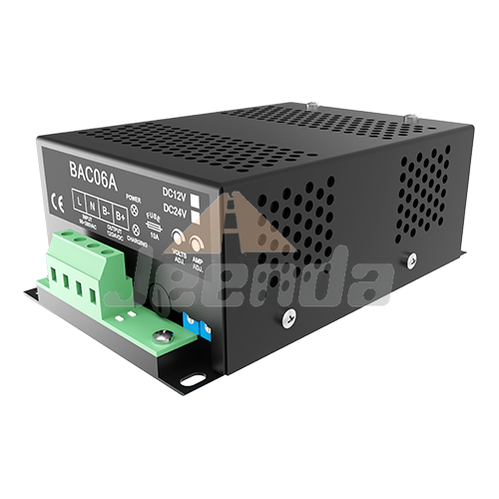

SmartGen Charger BAC06A 12V Power Supply Device

Part Number:

BAC06A 12V 3-6A

BAC2405 12V 5A

BAC06 series switching battery charger adopts the latest switch power components, which is designed for charging lead-acid starting battery according to its property. The charger is suitable for the lead-acid battery float charge. The maximum charge current for 12V charger is 6A; the maximum charge current for 24V charger is 3A.

• Power Supply：(100~240)V
• Case Dimensions：143*96*55(mm)
• Operating Temp. ：(-30~+55)℃
• Weight：0.65kg

CHARACTERISTICS:

1. Designed in switching power structure, a wide range of AC voltage input, small volume, lightweight and high efficiency;

2. Two-stage charging method (constant current firstly and then constant voltage), fully considering charging property of the lead-acid battery, can avoid overcharging and extend the battery life to the fullest;

3. With short circuit and reverse connection protection;

4. Charging voltage and current can be adjusted via potentiometer on the spot;

5. LED display: Power indication and charging indication;

6. Horizontal type for installation of BAV06A, easy to install;

7. Vertical type for installation of BAC06V, furthest decreased installation dimension.
