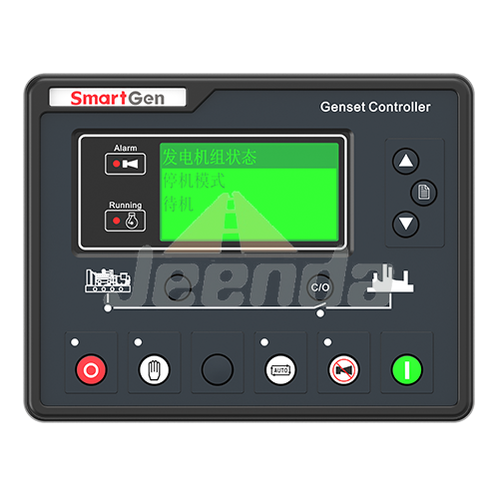

SmartGen HGM7210CAN Automatic Start Generator Controller Genset Controller
SmartGen HGM7210CAN Automatic Start Generator Controller Genset Controller
Regular price
$418.00 USD
Regular price
$418.00 USD
Sale price
$418.00 USD
Shipping calculated at checkout.
Technical Specifications:
- Power Supply：DC(8-35)V
- Case Dimensions：197*152*47(mm)
- Panel Cutout：186*141(mm)
- Operating Temp. ：(-25~+70)℃
- With ARM-based 32-bit CPU, highly integrated hardware, new reliability level;
- 132x64 LCD with backlight, multilingual interface (including English, Chinese or other languages) which can be chosen at the site, making commissioning convenient for factory personnel;
- Improved LCD wear-resistance and scratch resistance due to hard screen acrylic;
- Silicon panel and pushbuttons for better operation in high-temperature environment;
- RS485 communication port enabling remote control, remote measuring, remote communication via ModBus protocol (controller with RS485 port only);
- Equipped with SMS (Short Message Service) function. When genset is alarming, controller can send short messages via SMS automatically to max. 5 telephone numbers. besides, generator status can be controlled and checked using SMS (controller with GSM port only);
- Equipped with CANBUS port and can communicate with J1939 genset. Not only can you monitoring frequently-used data (such as water temperature, oil pressure, speed, fuel consumption and so on) of ECU machine, but also control starting up, shutdown , raising speed and speed droop via CANBUS port (controller with CAN Bus port only);
- Suitable for 3-phase 4-wire, 3-phase 3-wire, single phase 2-wire, and 2-phase 3-wire systems with voltage 120/240V and frequency 50/60Hz;
- 3 fixed analog sensors (temperature, oil pressure and liquid level);
- 2 configurable sensors can be set as sensor of temperature or fuel level;
